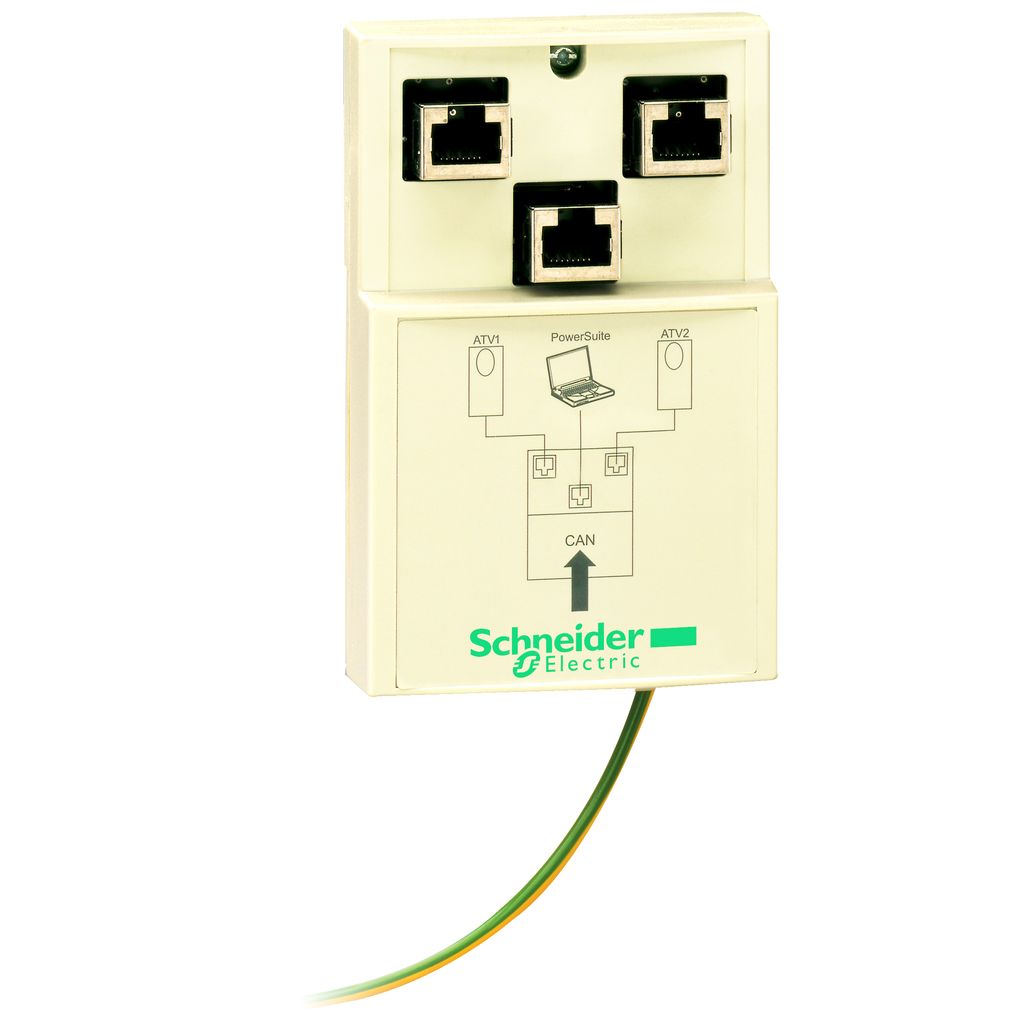

VW3CANTAP2
CANopen junction box, CANopen, 2 x RJ45 and 1 x RJ45
This junction box enables your product integration in CANopen machine bus. It is equipped with 2 screw terminal blocks for trunk cable tap link. It also has 2 x RJ45 connectors for connecting drives and 1 x RJ45 connector for connecting a PC. It has an IP20 protection index.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Ip Degree Of Protection | IP20 |
|---|---|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Electrical Connection | 2 connectors RJ45 |
| Net Weight | 0.48 kg |
| Communication Port Protocol | CANopen |
| Range Compatibility |
|
| Country of Origin | France |
| Weight | 0.48 kg |
| Range Of Product | Altivar |
| Accessory / Separate Part Category | connection accessory |
| Bus Type | CANopen |
| Quantity Per Set | set of 1 |
| Accessory / Separate Part Type | tap junction |
| Accessory / Separate Part Destination | CANopen bus |
