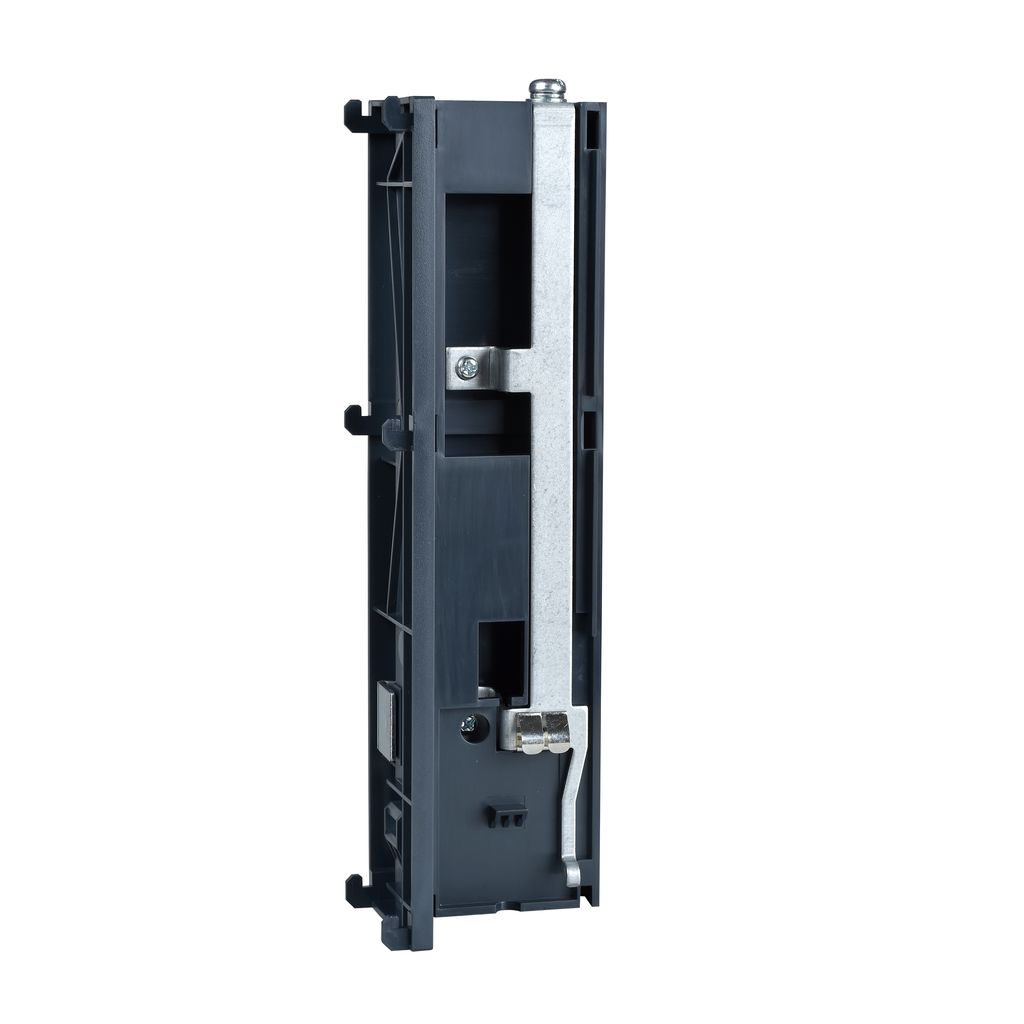

VW3A9920
Mechanical adaptor for 90°control mounting
This mechanical device consists in an adapter for mounting the control module at 90°. This is used to mount the power module on the side of the drive, keeping the control module visible and accessible. It is compatible with Altivar 32.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | Indonesia |
|---|---|
| Weight | 0.125 kg |
| Range Of Product | Altivar |
| Accessory / Separate Part Category | mounting and fixing accessory |
| Product Or Component Type | adaptor plate |
| Accessory / Separate Part Destination | control block |
| Product Compatibility |
|
| Net Weight | 0.125 kg |
| Sale Per Indivisible Quantity | 1 |
| Rohs Exemption Information | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Warranty | 18 months |
