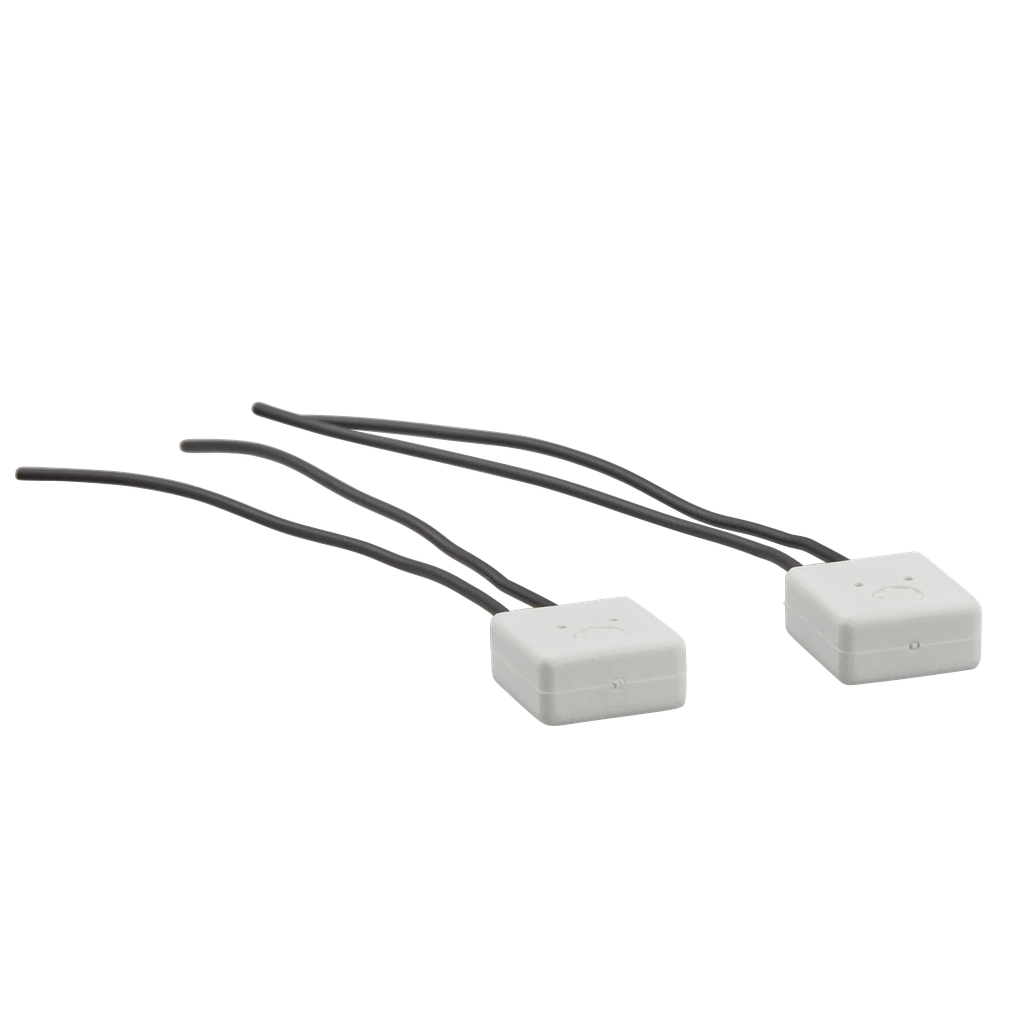

VW3A8306DRC
Modbus line terminator, Altistart 48, 120Ohm, for screw terminal
This line termination enables your product integration in Modbus serial link connection. It has a 120Ohm resistance and screw terminal connection type. It is sold in lots of 2.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product |
|
|---|---|
| Accessory / Separate Part Category | connection accessory |
| Bus Type | Modbus |
| Quantity Per Set | set of 2 |
| Accessory / Separate Part Type | line terminator |
| Accessory / Separate Part Destination | screw terminal |
| Warranty | 18 months |
| Terminator Capacitance | 1 nF |
| Net Weight | 0.2 kg |
| Communication Port Protocol | Modbus |
| Terminator Resistance | 120 Ohm |
| Range Compatibility |
|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
