VW3A8121
multi loader tool, Altivar, Easy Alivar, Lexium, for variable speed drive or servo drive

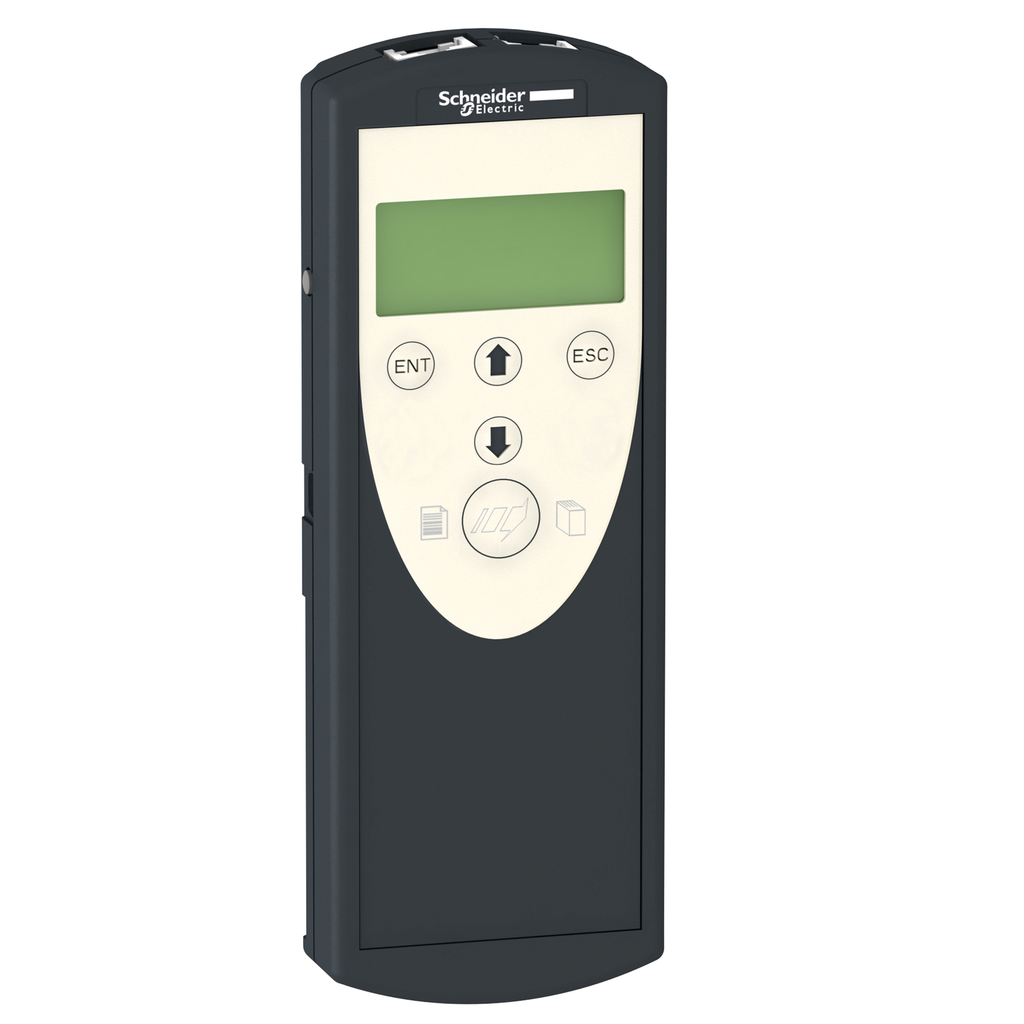

This Schneider Electric Altivar multi-loader configuration tool enables multiple drive configurations to be transferred to other drives. It is supplied with a 2 x RJ45 cable, a USB cable and an SD card. It has an LCD display for selection of configurations. This multi-loader tool allows managing multiple configurations across multiple drives, without the need for a computer to be used during the loading operation. It is compatible with Altivar 12, Altivar 312, Altivar 61, Altivar 71, Altivar 32, Lexium 32, Altivar 31C, Altivar 212, Altivar 61Q, Altivar 71Q, Altivar 312 Solar, Lexium 32i, Altivar Easy 310, Lexium 28, Altivar Machine ATV320. Enables duplication and transfer of configuration settings between drives, reducing installation and setup time. Compatible with most of Schneider Electric Altivar drives, eliminating need for multiple devices. One single configuration drive stored, ideal for setup of multiple similar machines.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | United States |
|---|---|
| Weight | 0.907 kg |
| Range Of Product | Altivar |
| Accessory / Separate Part Category | configuration accessory |
| Product Or Component Type | multi loader tool |
| Range Compatibility |
|
| Accessory / Separate Part Type | multi loader tool |
| Kit Composition |
|
| Accessory / Separate Part Destination |
|
| Warranty | 18 months |
| Net Weight | 0.907 kg |
| Product Specific Application | copy configuration from one drive/PC to another drive |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
