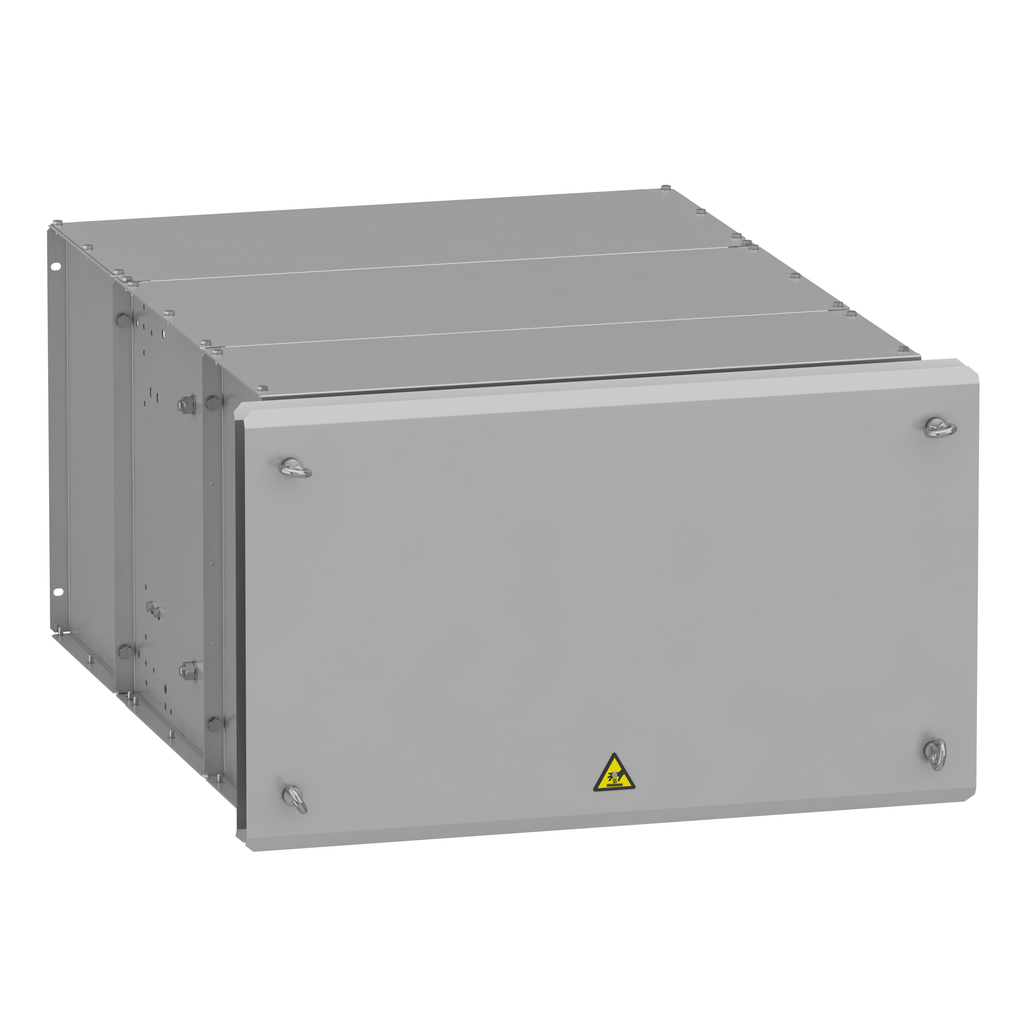

VW3A7754 - braking resistor, Altivar, 10Ohms, 19kW, IP23

VW3A7754

braking resistor, Altivar, 10Ohms, 19kW, IP23

This braking resistor is an option for variable speed drives of Altivar range. It has an Ohmic value of 10Ohms at 20°C. This braking resistor allows your variable speed drive to operate while braking to a standstill, by dissipating the braking energy and enables maximum transient braking torque. Its protection index is IP23. It weighs 67kg. This resistor is designed to be mounted on the outside of the enclosure, but should not inhibit natural cooling, air inlets and outlets must not be obstructed in any way.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Ambient Air Temperature For Operation	0-50 °C
Ambient Air Temperature For Storage	-25-70 °C
Ip Degree Of Protection	IP23
Country of Origin	United States
Width	540 mm
Height	1035 mm
Weight	71 kg
Ohmic Value	10 Ohm
[Ue] Rated Operational Voltage	24 V DC 250 V AC
Product Or Component Type	braking resistor
Range Compatibility	Altivar Machine ATV340 Altivar Process ATV900
Height	1035 mm
Protection Type	thermal protection via drive or temperature control switch 120 °C
Net Weight	71 kg
Electrical Connection	terminal <= 2.5 mm² / AWG 12 temperature control switch M12 bar wire drive
Product Compatibility	variable speed drive ATV930 wall mount 37 kW 380...480 V severe cycle variable speed drive ATV930 wall mount 45 kW 380...480 V severe cycle variable speed drive ATV930 wall mount 90 kW 380...480 V severe cycle variable speed drive ATV950 wall mount 37 kW 380...480 V severe cycle variable speed drive ATV950 wall mount 45 kW 380...480 V severe cycle variable speed drive ATV950 wall mount 90 kW 380...480 V severe cycle variable speed drive ATV340 30 kW 380...480 V severe cycle variable speed drive ATV340 37 kW 380...480 V severe cycle variable speed drive ATV340 75 kW 380...480 V severe cycle 2 per drive variable speed drive ATV930 45 kW 500...690 V severe cycle variable speed drive ATV930 55 kW 500...690 V severe cycle variable speed drive ATV930 60 hp 600 V severe cycle variable speed drive ATV930 75 hp 600 V severe cycle
Duty Cycle	severe cycle (heavy duty) <54 s braking with 100 % braking torque for a 120 s cycle severe cycle (heavy duty) <6 s braking with 165 % braking torque for a 120 s cycle
Width	540 mm
Depth	860 mm
Average Power Available	19 kW 50 °C
Rohs Exemption Information	Yes
Mercury Free	Yes
Toxic Heavy Metal Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
China Rohs Regulation	X
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
