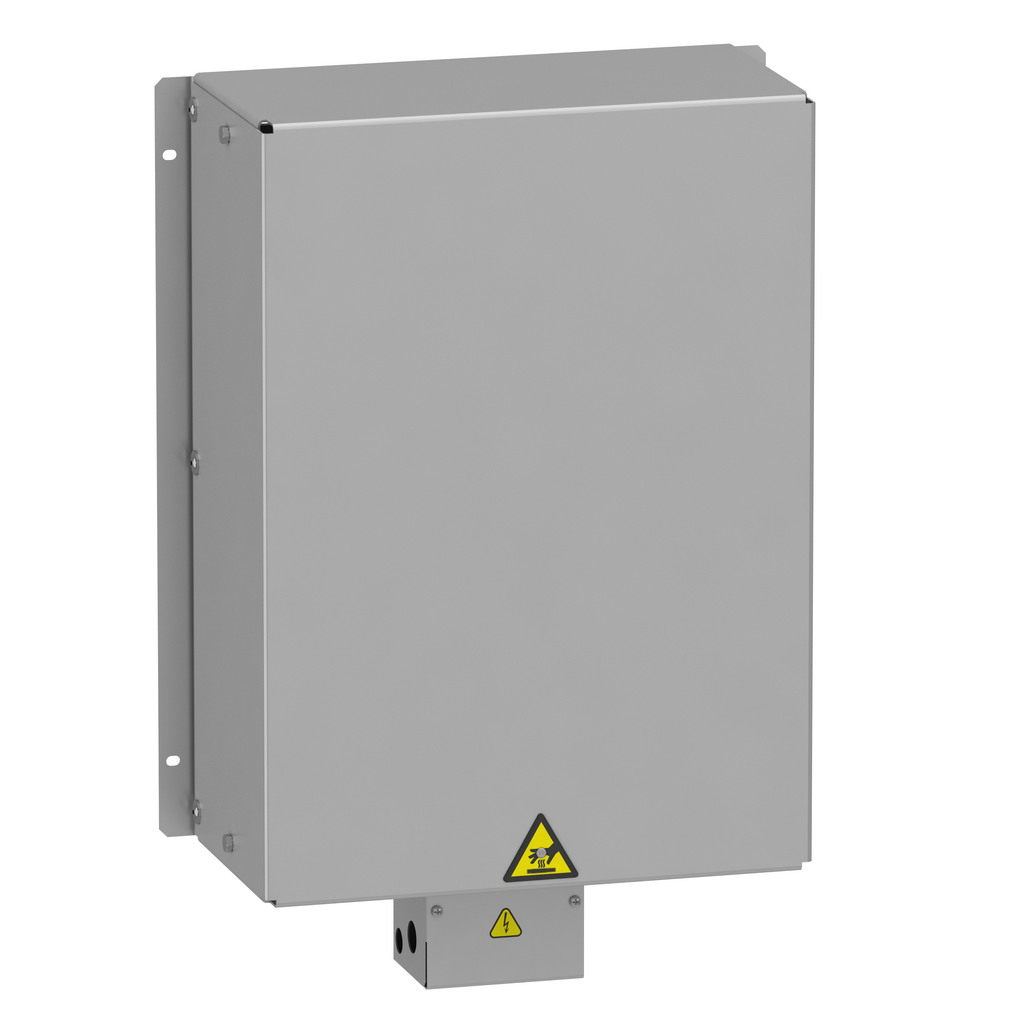

VW3A7751 – braking resistor, Altivar, 60Ohms, 2.9kW, IP20
VW3A7751
braking resistor, Altivar, 60Ohms, 2.9kW, IP20

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Height 570 mm
Protection Type thermal protection via drive or temperature control switch 120 °C
Net Weight 8.3 kg
Electrical Connection
  • terminal <= 10 mm² / AWG 8 drive
  • terminal <= 2.5 mm² / AWG 12 temperature control switch
Product Compatibility
  • variable speed drive ATV930 wall mount 5.5 kW 380...480 V severe cycle
  • variable speed drive ATV930 wall mount 7.5 kW 380...480 V severe cycle
  • variable speed drive ATV930 wall mount 2.2 kW 200...240 V severe cycle
  • variable speed drive ATV950 wall mount 5.5 kW 380...480 V severe cycle
  • variable speed drive ATV950 wall mount 7.5 kW 380...480 V severe cycle
  • variable speed drive ATV340 4 kW 380...480 V severe cycle
  • variable speed drive ATV340 5.5 kW 380...480 V severe cycle
  • variable speed drive ATV930 7.5 kW 500...690 V severe cycle
  • variable speed drive ATV930 11 kW 500...690 V severe cycle
  • variable speed drive ATV930 10 hp 600 V severe cycle
  • variable speed drive ATV930 15 hp 600 V severe cycle
Duty Cycle
  • severe cycle (heavy duty) <54 s braking with 100 % braking torque for a 120 s cycle
  • severe cycle (heavy duty) <6 s braking with 165 % braking torque for a 120 s cycle
Width 390 mm
Depth 180 mm
Average Power Available 2.9 kW 50 °C
Ambient Air Temperature For Operation 0-50 °C
Ambient Air Temperature For Storage -25-70 °C
Ip Degree Of Protection IP20
Country of Origin Germany
Width 390 mm
Height 570 mm
Weight 8.3 kg
Ohmic Value 60 Ohm
[Ue] Rated Operational Voltage
  • 24 V DC
  • 250 V AC
Product Or Component Type braking resistor
Range Compatibility
  • Altivar Machine ATV340
  • Altivar Process ATV900
Rohs Exemption Information Yes
Mercury Free Yes
Toxic Heavy Metal Free Yes
California Proposition 65 WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc Yes
China Rohs Regulation X
Eu Rohs Directive Pro-active compliance (Product out of EU RoHS legal scope)
