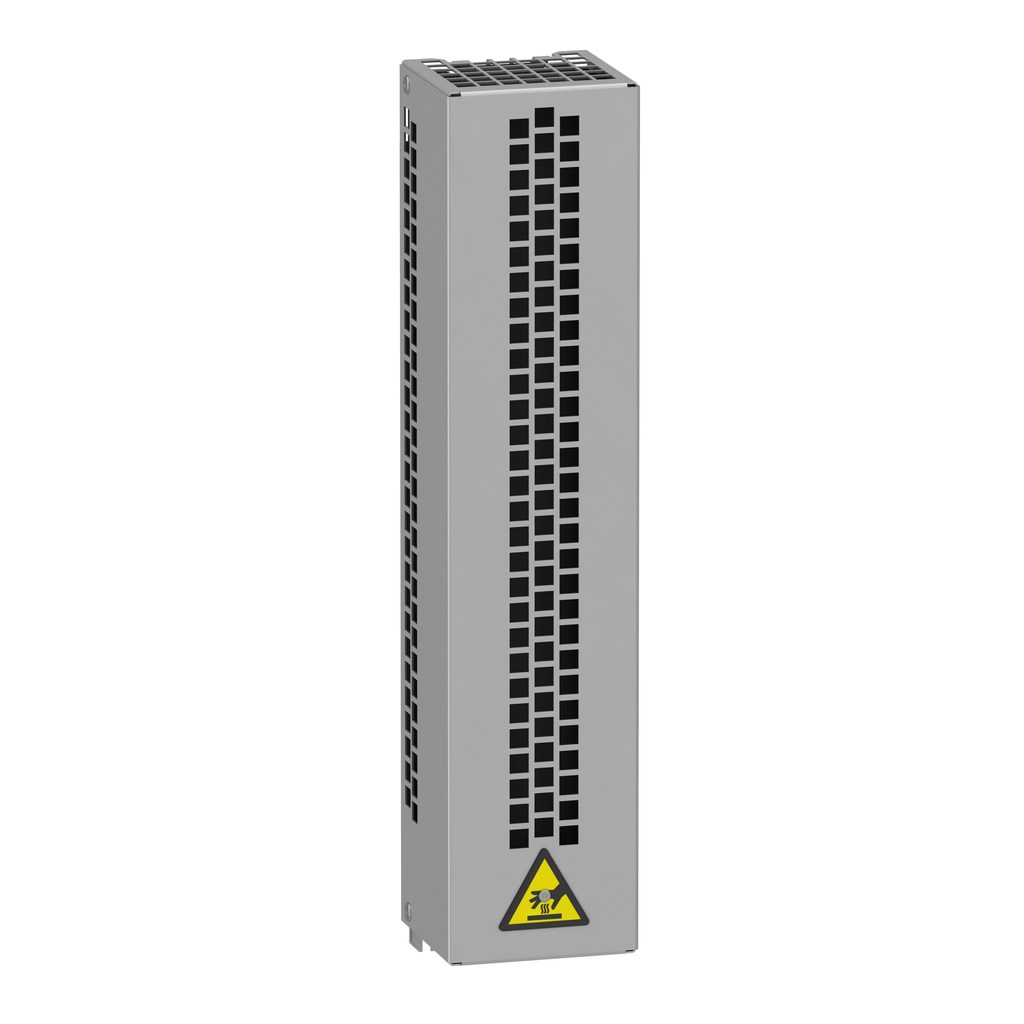

VW3A7740 – braking resistor, Altivar, 100Ohms, 0.26kW, IP20
VW3A7740
braking resistor, Altivar, 100Ohms, 0.26kW, IP20

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Rohs Exemption Information Yes
Mercury Free Yes
Toxic Heavy Metal Free Yes
California Proposition 65 WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc Yes
China Rohs Regulation X
Eu Rohs Directive Pro-active compliance (Product out of EU RoHS legal scope)
Country of Origin Germany
Width 105 mm
Height 465 mm
Weight 2.5 kg
Ohmic Value 100 Ohm
Product Or Component Type braking resistor
Range Compatibility
  • Altivar Process ATV900
  • Altivar Machine ATV340
Ambient Air Temperature For Operation 0-50 °C
Ambient Air Temperature For Storage -25-70 °C
Ip Degree Of Protection IP20
Height 465 mm
Protection Type thermal protection via drive
Net Weight 2.5 kg
Electrical Connection terminal <= 10 mm² / AWG 8 drive
Product Compatibility
  • variable speed drive ATV930 wall mount 2.2 kW 380...480 V medium cycle
  • variable speed drive ATV930 wall mount 3 kW 380...480 V medium cycle
  • variable speed drive ATV930 wall mount 4 kW 380...480 V medium cycle
  • variable speed drive ATV950 wall mount 2.2 kW 380...480 V medium cycle
  • variable speed drive ATV950 wall mount 3 kW 380...480 V medium cycle
  • variable speed drive ATV950 wall mount 4 kW 380...480 V medium cycle
  • variable speed drive ATV930 wall mount 0.75 kW 200...240 V severe cycle
  • variable speed drive ATV340 1.5 kW 380...480 V medium cycle
  • variable speed drive ATV340 2.2 kW 380...480 V medium cycle
  • variable speed drive ATV340 3 kW 380...480 V medium cycle
  • variable speed drive ATV930 4 kW 500...690 V medium cycle
  • variable speed drive ATV930 5.5 kW 500...690 V medium cycle
  • variable speed drive ATV930 5 hp 600 V medium cycle
  • variable speed drive ATV930 7.5 hp 600 V medium cycle
Duty Cycle
  • severe cycle (heavy duty) <54 s braking with 100 % braking torque for a 120 s cycle
  • medium cycle (normal duty) <4 s braking with 135 % braking torque for a 40 s cycle
  • medium cycle (heavy duty) <4 s braking with 165 % braking torque for a 40 s cycle
  • severe cycle (heavy duty) <6 s braking with 165 % braking torque for a 120 s cycle
Width 105 mm
Depth 100 mm
Average Power Available 0.26 kW 50 °C
