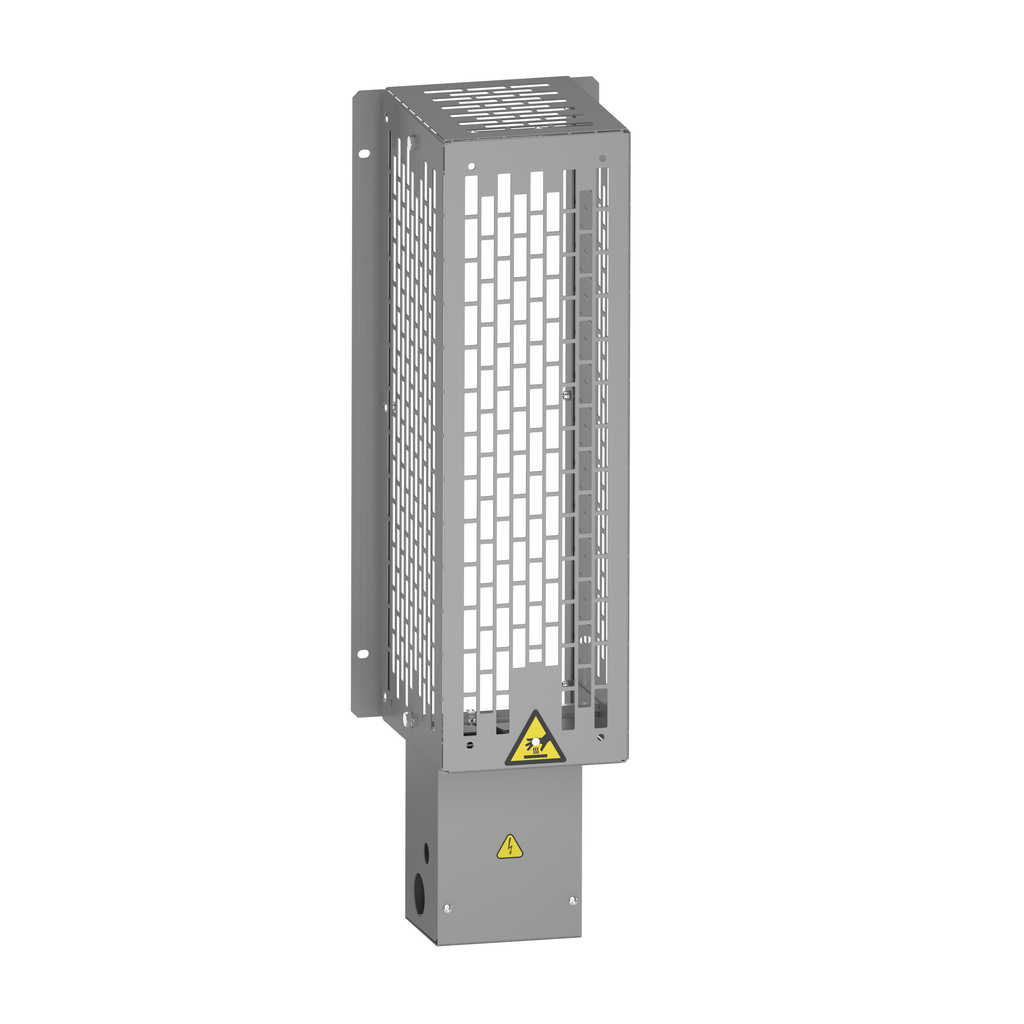

VW3A7735 – braking resistor, Altivar, 8Ohms, 1.1kW, IP20
VW3A7735
braking resistor, Altivar, 8Ohms, 1.1kW, IP20

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Rohs Exemption Information Yes
Mercury Free Yes
Toxic Heavy Metal Free Yes
California Proposition 65 WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc Yes
China Rohs Regulation X
Eu Rohs Directive Pro-active compliance (Product out of EU RoHS legal scope)
Ambient Air Temperature For Operation 0-50 °C
Ambient Air Temperature For Storage -25-70 °C
Ip Degree Of Protection IP20
Height 640 mm
Protection Type thermal protection via drive or temperature control switch 120 °C
Net Weight 4.5 kg
Electrical Connection
  • terminal <= 35 mm² / AWG 3 drive
  • terminal <= 4 mm² / AWG 10 temperature control switch
Product Compatibility
  • variable speed drive ATV930 wall mount 55 kW 380...480 V light cycle
  • variable speed drive ATV930 wall mount 15 kW 200...240 V light cycle
  • variable speed drive ATV950 wall mount 55 kW 380...480 V light cycle
  • variable speed drive ATV930 wall mount 15 kW 200...240 V medium cycle
  • variable speed drive ATV340 45 kW 380...480 V light cycle
  • variable speed drive ATV320 11 kW 200...240 V
Duty Cycle
  • light cycle (heavy duty) <0.8 s braking with 150 % braking torque for a 40 s cycle
  • light cycle (normal duty) <0.8 s braking with 120 % braking torque for a 40 s cycle
  • medium cycle (normal duty) <4 s braking with 135 % braking torque for a 40 s cycle
  • medium cycle (heavy duty) <4 s braking with 165 % braking torque for a 40 s cycle
Width 190 mm
Depth 180 mm
Average Power Available 1.1 kW 50 °C
Country of Origin Germany
Width 190 mm
Height 640 mm
Weight 4.5 kg
Ohmic Value 8 Ohm
[Ue] Rated Operational Voltage
  • 24 V DC
  • 250 V AC
Product Or Component Type braking resistor
Range Compatibility
  • Altivar Process ATV900
  • Altivar Machine ATV340
  • Altivar Machine ATV320
