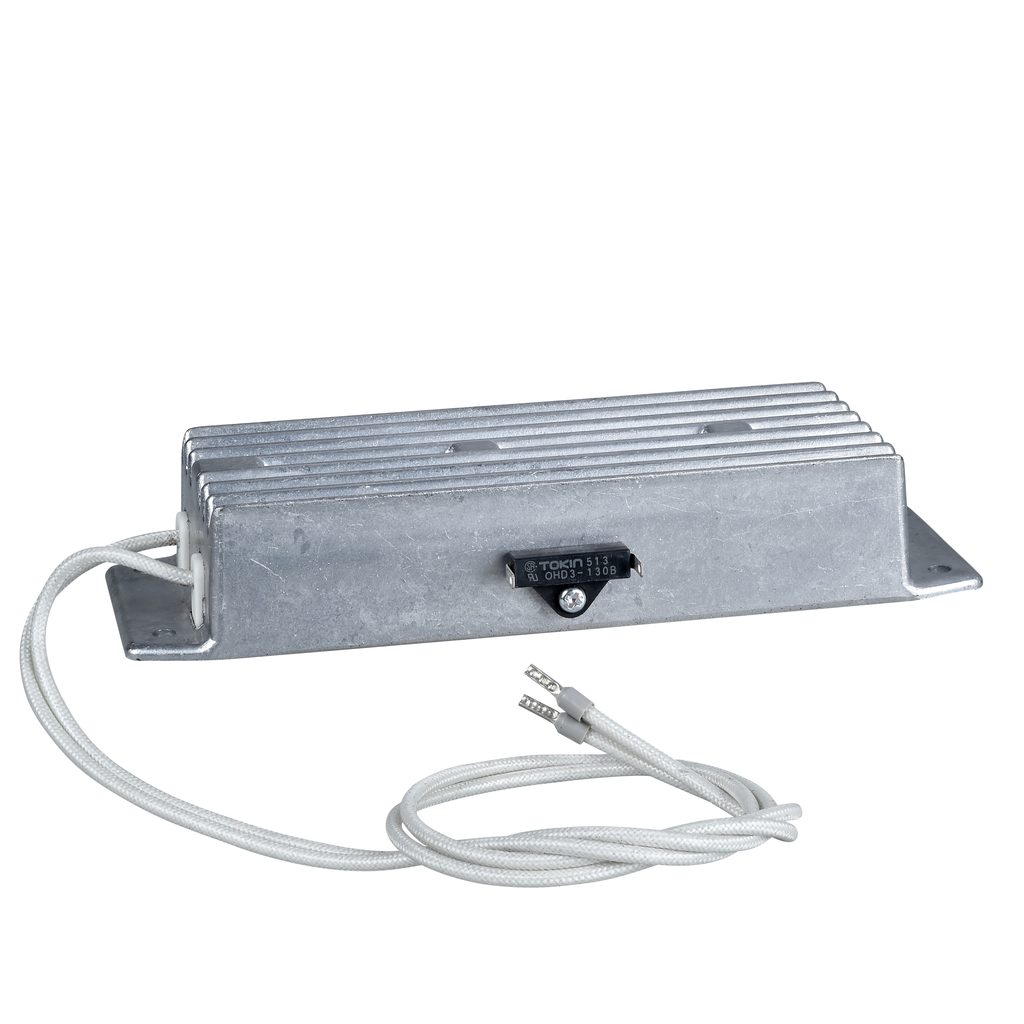

VW3A7724
braking resistor, Altivar, IP00, 68Ohm, 28W
Specifications
| Ip Degree Of Protection | IP00 |
|---|---|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Height | 170 mm |
| Net Weight | 0.62 kg |
| Width | 60 mm |
| Depth | 30 mm |
| Average Power Available |
|
| Country of Origin | France |
| Width | 60 mm |
| Height | 170 mm |
| Weight | 0.62 kg |
| Ohmic Value | 68 Ohm |
| Range Of Product | Altivar |
| Product Compatibility |
|
| Range Compatibility |
|
Documents
- Spec Sheet
- Altivar 312 Variable Speed Drives Catalog (US 2014) - ATV312eCatalog (pdf)
- Discover catalogue for Altivar 31C variable speed drives - DIA2ED2100108EN+(web) (pdf)
- Discover catalogue for Altivar 312 variable speed drives - Catalogue+Altivar+312+variable+speed+drives (pdf)
- Instruction sheet - Braking Resistor: VW3A7723, VW3A7724, VW3A7725 - ATV12_312_IS_braking_resistor_BBV51918_01 (pdf)
