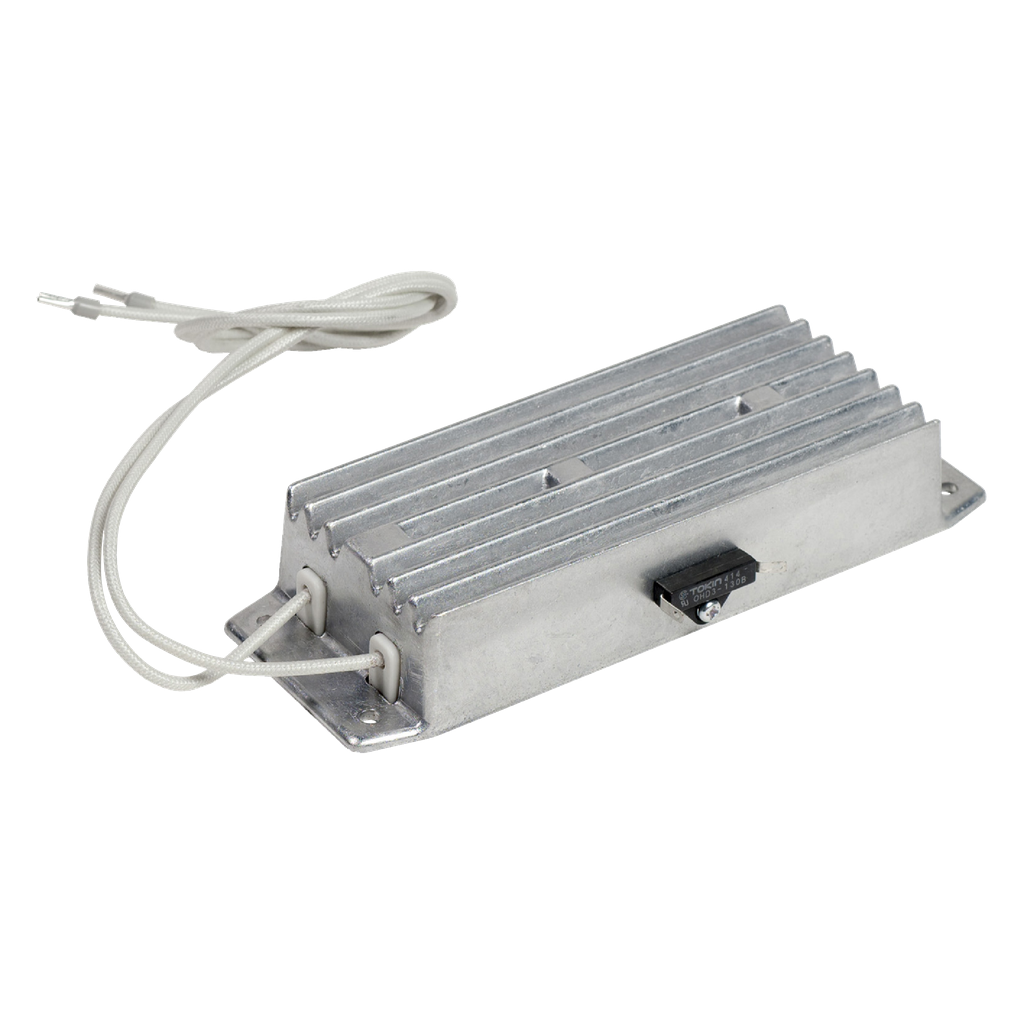

VW3A7723
braking resistor, Altivar, 100Ohm, 28W, IP00
This braking resistoris an option for variable speed drives of Altivar ranges. It has an Ohmic value of 100Ohms at 20°C and its protection index is IP00. It is compatible with Altivar 12, Altivar 312, Altivar 312 solar, easy Altivar 310 and easy Altivar 310L ranges. It is compatible with Altivar 312, Altivar 320 and Altivar easy 310. the power available is 28W at 50°c and 32W at 40°c. It weighs 0.605kg and its dimensions are, 60mm wide, 170mm high, 30mm deep.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Ip Degree Of Protection | IP00 |
|---|---|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Height | 170 mm |
| Net Weight | 0.605 kg |
| Width | 60 mm |
| Depth | 30 mm |
| Average Power Available |
|
| Country of Origin | France |
| Width | 60 mm |
| Height | 170 mm |
| Weight | 0.605 kg |
| Ohmic Value | 100 Ohm |
| Range Of Product | Altivar |
| Product Compatibility |
|
| Range Compatibility |
|
Documents
- Altivar 312 Variable Speed Drives Catalog (US 2014) - ATV312eCatalog (pdf)
- Easy Series Automation and Control Essentials Catalog-2024 - DIA1ED2190901EN_Web (pdf)
- Discover catalogue for Altivar 312 variable speed drives - Catalogue+Altivar+312+variable+speed+drives (pdf)
- Altivar 310 - DIA2ED2140701EN (pdf)
- Discover catalog for Easy Altivar 310L variable speed drives - Catalog+Easy+Altivar+310L+variable+speed+drives (pdf)
- Spec Sheet
- Instruction sheet - Braking Resistor: VW3A7723, VW3A7724, VW3A7725 - ATV12_312_IS_braking_resistor_BBV51918_01 (pdf)
