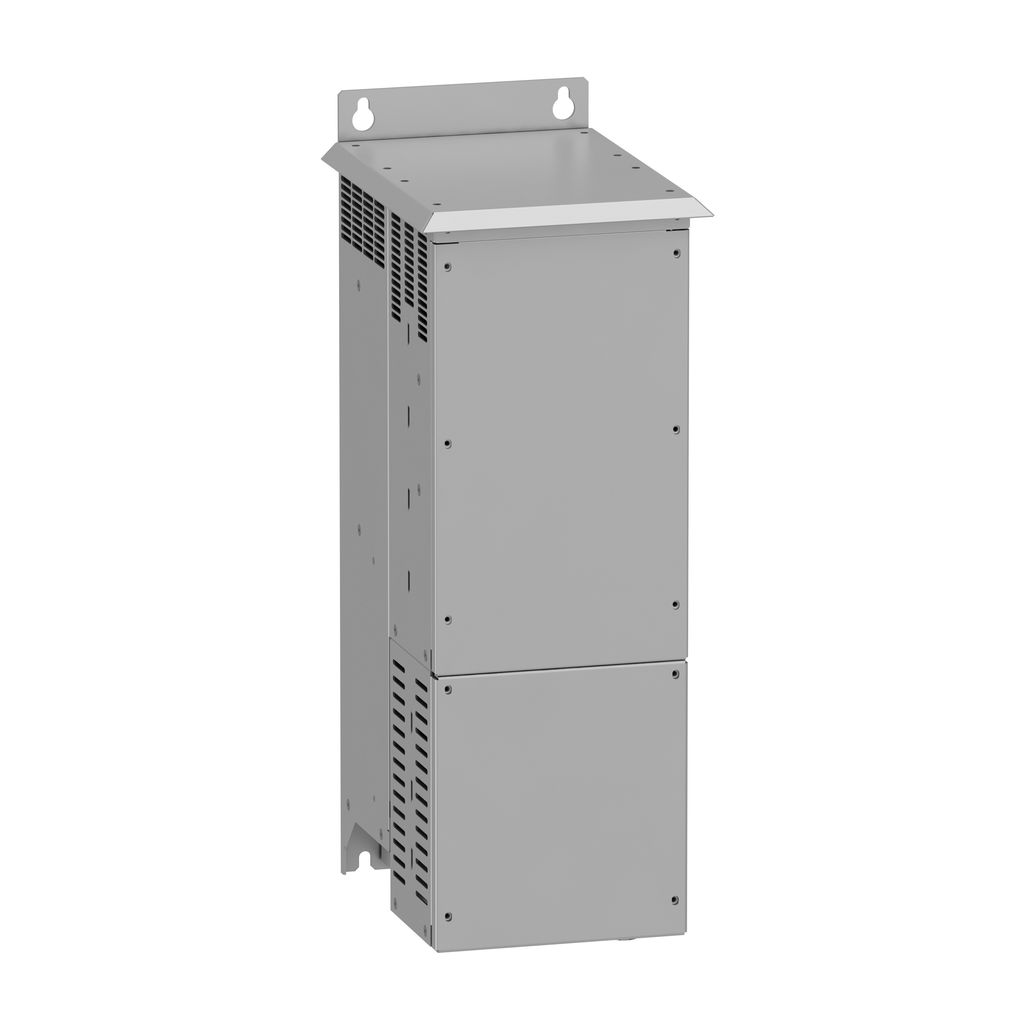

VW3A7106
braking unit, Altivar, 60kW, 200/240V, for variable speed drive
Specifications
| Ambient Air Temperature For Operation | -10-50 °C |
|---|---|
| Ip Degree Of Protection |
|
| Ambient Air Temperature For Storage | -40-70 °C |
| Operating Altitude |
|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mechanical Robustness | vibrations class 3M4 IEC 60721-3-3 |
| Height | 658 mm |
| Volume Of Cooling Air | 166 m3/h |
| Permanent Braking Power | 60 kW at constant power and at engage threshold) |
| Net Weight | 15.5 kg |
| Maximum Dc Bus Voltage | 450 V |
| Maximum Braking Power | 80 kW |
| Load Factor |
|
| Operating Position | vertical +/- 10 degree |
| Activation Threshold | 395 V DC +/- 1 % |
| Width | 216 mm |
| Depth | 303 mm |
| Country of Origin | China |
| Width | 216 mm |
| Height | 658 mm |
| Weight | 15.5 kg |
| Thermal Losses | 400 W |
| Minimum Resistor Value To Associate | 1.4 Ohm |
| Product Compatibility |
|
| Range Compatibility | Altivar Process ATV900 |
| Protection Type | integrated thermal protection thermal probe |
Documents
- Instruction sheet - ATV Process Size6 Braking Unit: VW3A7105, VW3A7106 - ATV_Process_Size6_IS_Braking_Unit_NVE16635_02 (pdf)
- Discover catalog for Altivar Process ATV900 variable speed drives - Catalog+Altivar+Process+ATV900+variable+speed+drives (pdf)
- Altivar Process ATV900 Variable Speed Drives Catalog (US 2017) - DIA2ED2150601EN_US (pdf)
- Spec Sheet
