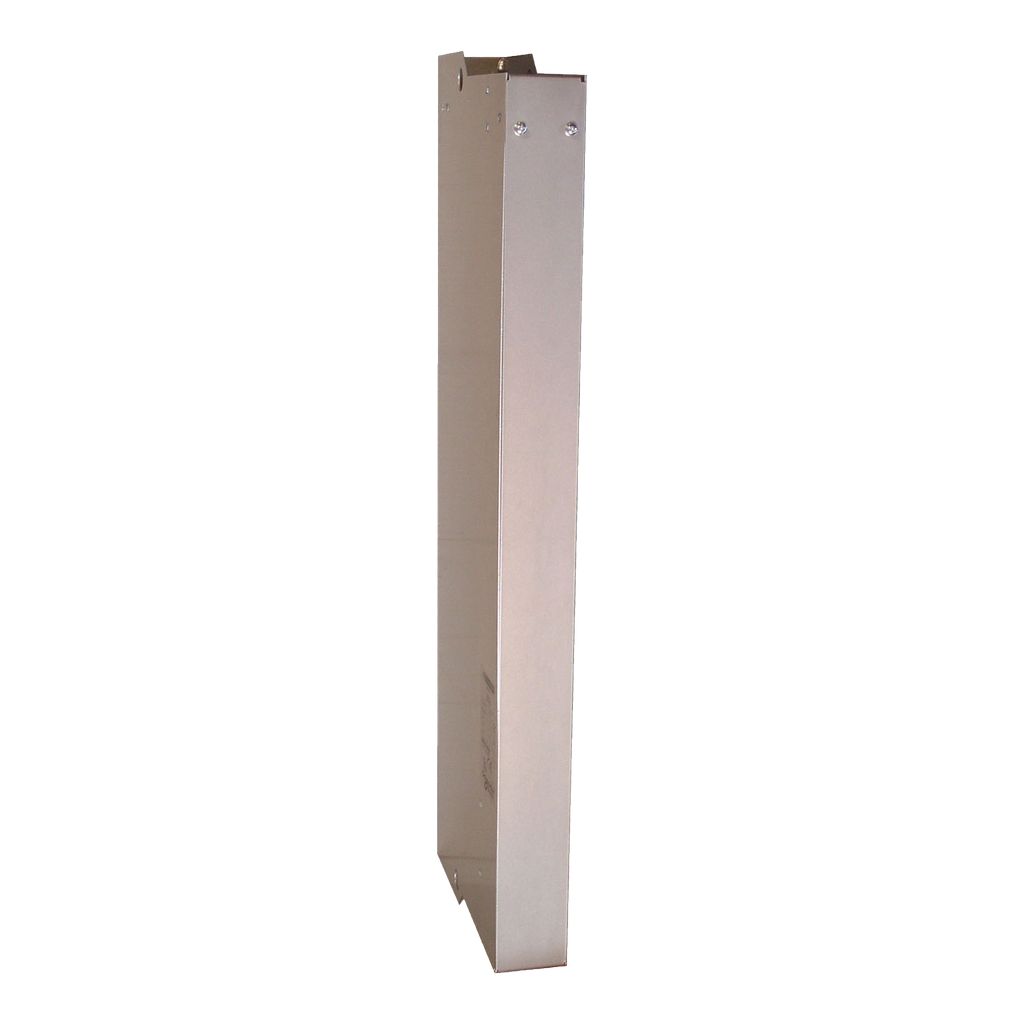

VW3A7101
resistance braking unit, 200kW, 400V, for variable speed drive
This braking unit is an option for variable speed drives of Altivar range. The minimum resistor value to associate is 1Ohm. This braking unit allows Altivar 71 drives to operate while braking to a standstill or during “generator” operation, by dissipating the energy in the braking resistor. Its protection index is IP20. Thermal protection is provided by an integrated temperature probe. It weighs 30kg.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Ambient Air Temperature For Operation | -10-50 °C |
|---|---|
| Ip Degree Of Protection | IP20 |
| Vibration Resistance | 0.2 gn |
| Pollution Degree | 2 EN 50178 |
| Ambient Air Temperature For Storage | -25-70 °C |
| Operating Altitude | 6561.68 ft (2000 m) |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2010014EN |
| Sustainable Offer Status | Green Premium product |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | X |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Volume Of Cooling Air | 100 m3/h |
| Permanent Braking Power | 200 kW 400 V at constant power and at engage threshold) |
| Net Weight | 30 kg |
| Maximum Dc Bus Voltage | 850 V |
| Maximum Braking Power | 420 kW |
| Load Factor |
|
| Operating Position | vertical |
| Activation Threshold | 785 V DC +/- 1 % |
| Country of Origin | China |
| Weight | 30 kg |
| Thermal Losses | 550 W |
| Minimum Resistor Value To Associate | 1.05 Ohm |
| Product Compatibility |
|
| Range Compatibility |
|
| Protection Type | integrated thermal protection thermal probe |
