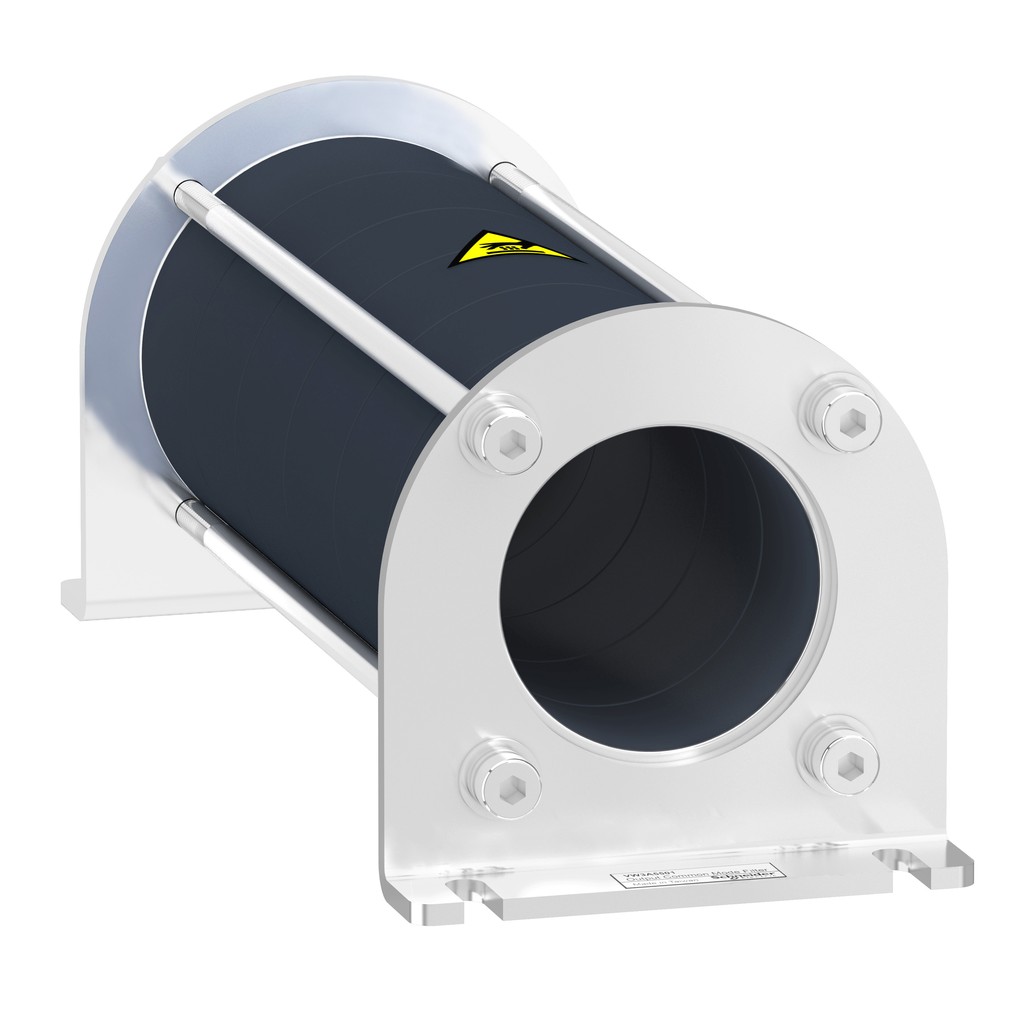

VW3A5502 – common mode filter for bearing current reduction, 219.6µH
VW3A5502
common mode filter for bearing current reduction, 219.6µH

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Rohs Exemption Information Yes
Mercury Free Yes
Toxic Heavy Metal Free Yes
California Proposition 65 WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc Yes
China Rohs Regulation X
Eu Rohs Directive Pro-active compliance (Product out of EU RoHS legal scope)
Ambient Air Temperature For Operation -15-60 °C
Ambient Air Temperature For Storage -40-70 °C
Relative Humidity 5-95 % without condensation
Country of Origin Thailand
Width 66 mm
Height 163.8 mm
Weight 0.66 kg
Product Or Component Type common mode output filter
Value Of Inductance 219.6 µH
Product Compatibility
  • variable speed drive ATV630 wall mount, 0.75-11 kW, 380...480 V
  • variable speed drive ATV650 wall mount, 0.75-11 kW, 380...480 V
  • variable speed drive ATV930 wall mount, 0.75-11 kW, 380...480 V
  • variable speed drive ATV950 wall mount, 0.75-11 kW, 380...480 V
  • variable speed drive ATV630 wall mount, 0.75-5.5 kW, 200...240 V
  • variable speed drive ATV930 wall mount, 0.75-5.5 kW, 200...240 V
Range Compatibility
  • Altivar Process ATV900
  • Altivar Process ATV600
Mechanical Robustness
  • shocks class 3M4 IEC 60721-3-3
  • vibrations class 3M4 IEC 60721-3-3
Maximum Output Frequency 100 Hz
Height 163.8 mm
Switching Frequency <= 10 kHz
Maximum Motor Cable Length
  • 150 m(shielded cable)5.5-11 kW 380...480 V 1
  • 300 m(shielded cable)0.75-4 kW 200...240 V 1
  • 500 m(unshielded cable)5.5-5.5 kW 200...240 V 1 VW3A5501
  • 500 m(shielded cable)5.5-5.5 kW 200...240 V 2
  • 1000 m(unshielded cable)0.75-4 kW 200...240 V 1 VW3A5501
  • 1000 m(unshielded cable)5.5-5.5 kW 200...240 V 2
  • 300 m(unshielded cable)0.75-11 kW 380...480 V 1
  • 300 m(shielded cable)0.75-4 kW 380...480 V 1
  • 500 m(unshielded cable)5.5-11 kW 380...480 V 1 VW3A5501
  • 500 m(shielded cable)5.5-11 kW 380...480 V 2
  • 1000 m(unshielded cable)0.75-5.5 kW 380...480 V 1 VW3A5501
  • 1000 m(unshielded cable)7.5-11 kW 380...480 V 2
  • 150 m(shielded cable)5.5-5.5 kW 200...240 V 1
  • 300 m(unshielded cable)0.75-5.5 kW 200...240 V 1
Net Weight 0.66 kg
Electrical Insulation Class class I
Saturation Current 1.1 A
Width 66 mm
Depth 66 mm
Diameter
  • 37.1 mm 3-phase cable inside
  • 37.1 mm PE cable outside
