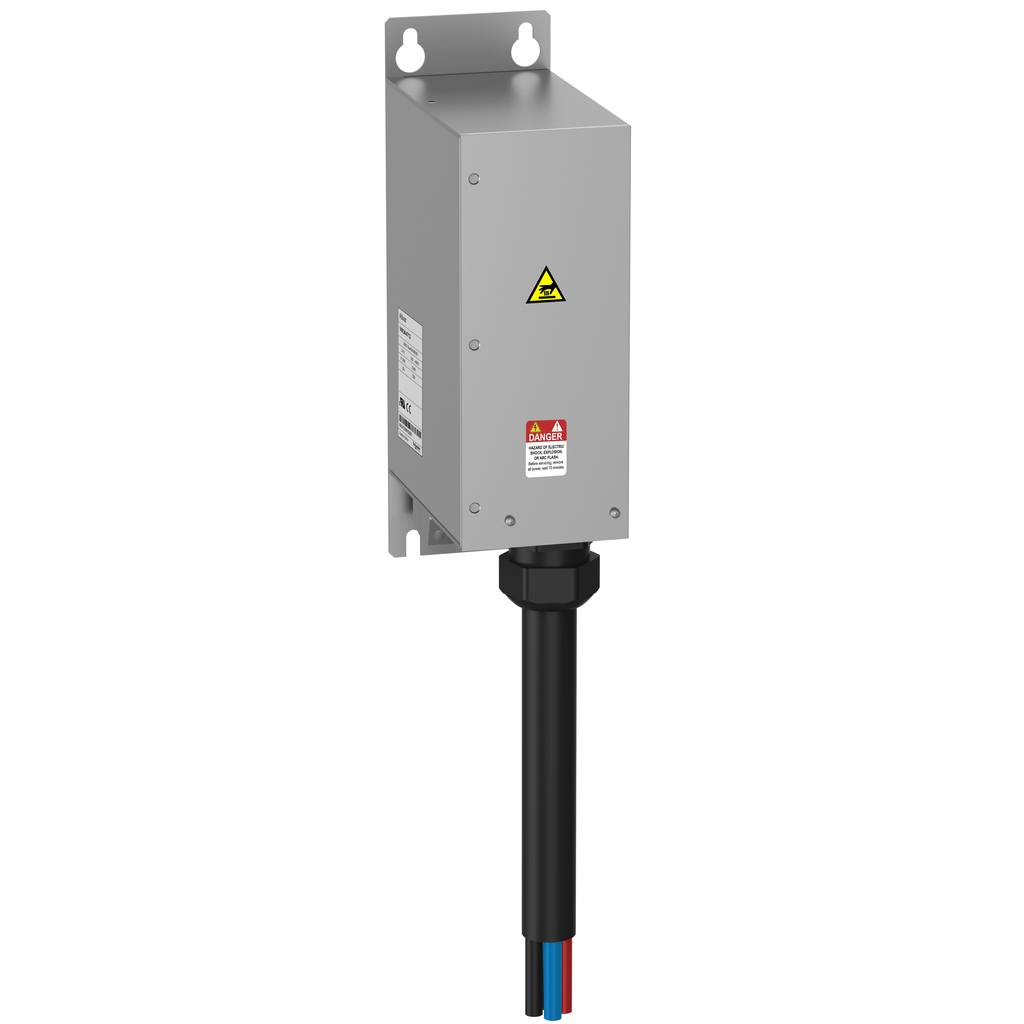

VW3A4712
additionnal EMC filter - 70 A - IP20
Specifications
| Mechanical Robustness |
|
|---|---|
| Height | 330 mm |
| Tolerance | 10 % |
| Maximum Motor Cable Length |
|
| Net Weight | 6.1 kg |
| Earth Leakage Current | 3.98 mA 400 V 50 Hz TN |
| Network Rated Voltage | 380-480 V |
| Electrical Connection | terminal 35 mm² AWG 3 |
| Width | 100 mm |
| Depth | 180 mm |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Country of Origin | China |
| Width | 100 mm |
| Height | 330 mm |
| Weight | 6.1 kg |
| Range Of Product | Altivar |
| Product Compatibility |
|
| Product Or Component Type | EMC input filter |
| Phase | three phase |
| Mounting Location | at variable speed drive side |
| Product Specific Application | radio interference input filter |
| Line Rated Current | 70 A |
| Range Compatibility | Altivar Machine ATV340 |
| Thermal Losses | 10 W |
| Standards | IEC 61800-3 |
| Ambient Air Temperature For Operation |
|
| Ambient Air Temperature For Storage | -40-70 °C |
| Relative Humidity | 5-95 % without condensation IEC 61800-5-1 |
| Ip Degree Of Protection | IP20mounting side by side |
| Operating Altitude |
|
