VW3A4706 – EMC radio interference input filter, for variable speed drive, 100A
VW3A4706

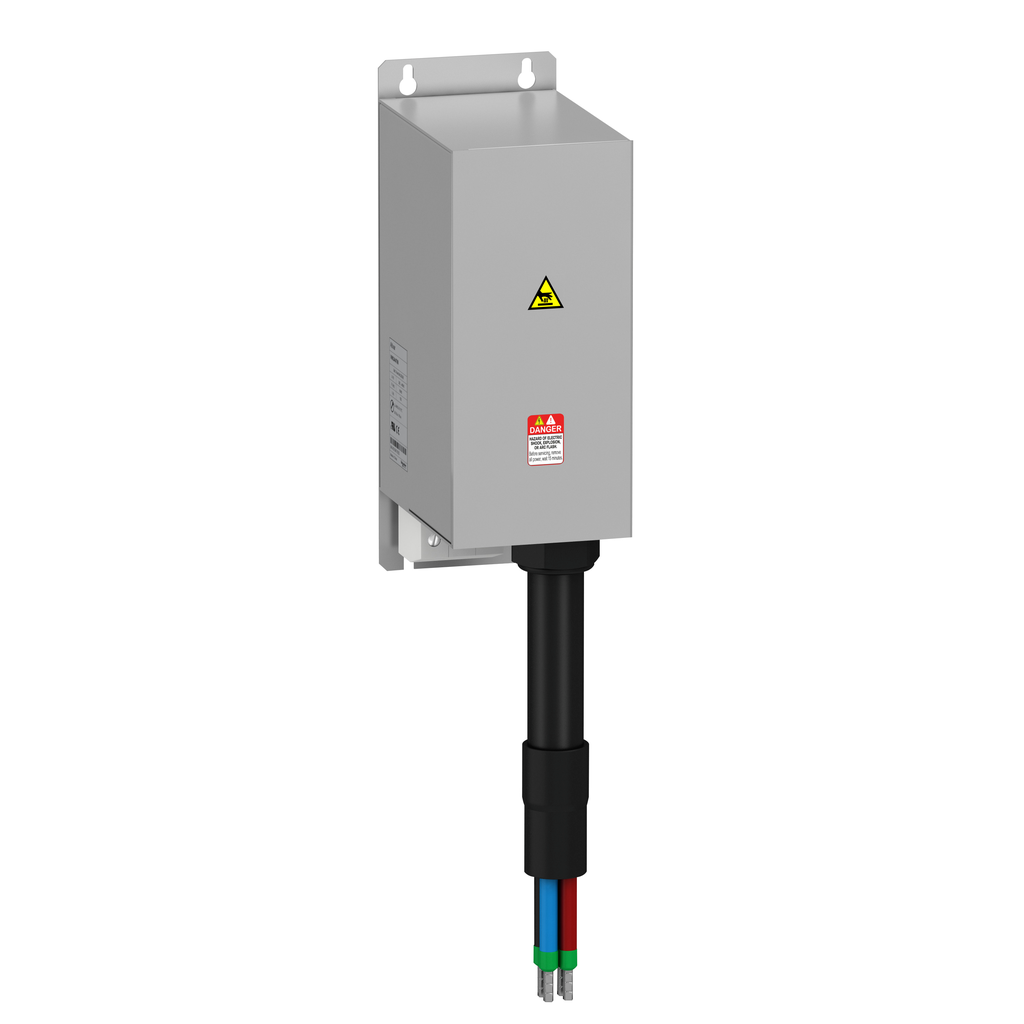

EMC radio interference input filter, for variable speed drive, 100A

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Standards IEC 61800-3
Ambient Air Temperature For Operation
  • -10-50 °C without current derating)
  • 50-60 °C with current derating 1.5 % per °C)
Ambient Air Temperature For Storage -40-70 °C
Relative Humidity 5-95 % without condensation IEC 61800-5-1
Ip Degree Of Protection
  • IP20mounting side by side
  • IP21with kit VW3A47906
Operating Altitude
  • 0...3280.84 ft (0...1000 m) without current derating
  • 3280.84...13123.36 ft (1000...4000 m) with current derating 1 % per 100 m
Country of Origin China
Width 120 mm
Height 340 mm
Weight 6.5 kg
Range Of Product Altivar
Product Compatibility
  • variable speed drive ATV630 wall mount, 37 kW, 380...480 V
  • variable speed drive ATV630 wall mount, 45 kW, 380...480 V
  • variable speed drive ATV630 wall mount, 18.5 kW, 200...240 V
  • variable speed drive ATV630 wall mount, 22 kW, 200...240 V
  • variable speed drive ATV650 wall mount, 37 kW, 380...480 V
  • variable speed drive ATV650 wall mount, 45 kW, 380...480 V
  • variable speed drive ATV930 wall mount, 37 kW, 380...480 V
  • variable speed drive ATV930 wall mount, 45 kW, 380...480 V
  • variable speed drive ATV930 wall mount, 18.5 kW, 200...240 V
  • variable speed drive ATV930 wall mount, 22 kW, 200...240 V
  • variable speed drive ATV950 wall mount, 37 kW, 380...480 V
  • variable speed drive ATV950 wall mount, 45 kW, 380...480 V
  • variable speed drive ATV34030 kW, 380...480 V
  • variable speed drive ATV34037 kW, 380...480 V
Product Or Component Type EMC input filter
Phase three phase
Mounting Location at variable speed drive side
Product Specific Application radio interference input filter
Line Rated Current 100 A
Range Compatibility
  • Altivar Machine ATV340
  • Altivar Process ATV600
  • Altivar Process ATV900
Thermal Losses 12.4 W
Mechanical Robustness
  • shocks class 3M4 IEC 60721-3-3
  • vibrations class 3M4 IEC 60721-3-3
Height 340 mm
Tolerance 10 %
Maximum Motor Cable Length
  • 150 m shielded motor cable 4 kHz IEC 61800-3 category C2, 380...480 V
  • 300 m shielded motor cable 4 kHz IEC 61800-3 category C3, 380...480 V
  • 150 m shielded motor cable 4 kHz IEC 61800-3 category C2, 200...240 V
  • 300 m shielded motor cable 4 kHz IEC 61800-3 category C3, 200...240 V
  • 50 m shielded motor cable 4 kHz IEC 61800-3 category C1, 200...240 V
  • 50 m shielded motor cable 4 kHz IEC 61800-3 category C1, 380...480 V
Net Weight 6.5 kg
Earth Leakage Current
  • 13.9 mA 400 V 50 Hz TN
  • 13.9 mA 400 V 50 Hz TT
Network Rated Voltage
  • 380-480 V
  • 200-240 V
Electrical Connection terminal 50 mm² AWG 1/0
Width 120 mm
Depth 180 mm
Rohs Exemption Information Yes
Mercury Free Yes
Toxic Heavy Metal Free Yes
California Proposition 65 WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc Yes
China Rohs Regulation X
Eu Rohs Directive Pro-active compliance (Product out of EU RoHS legal scope)
