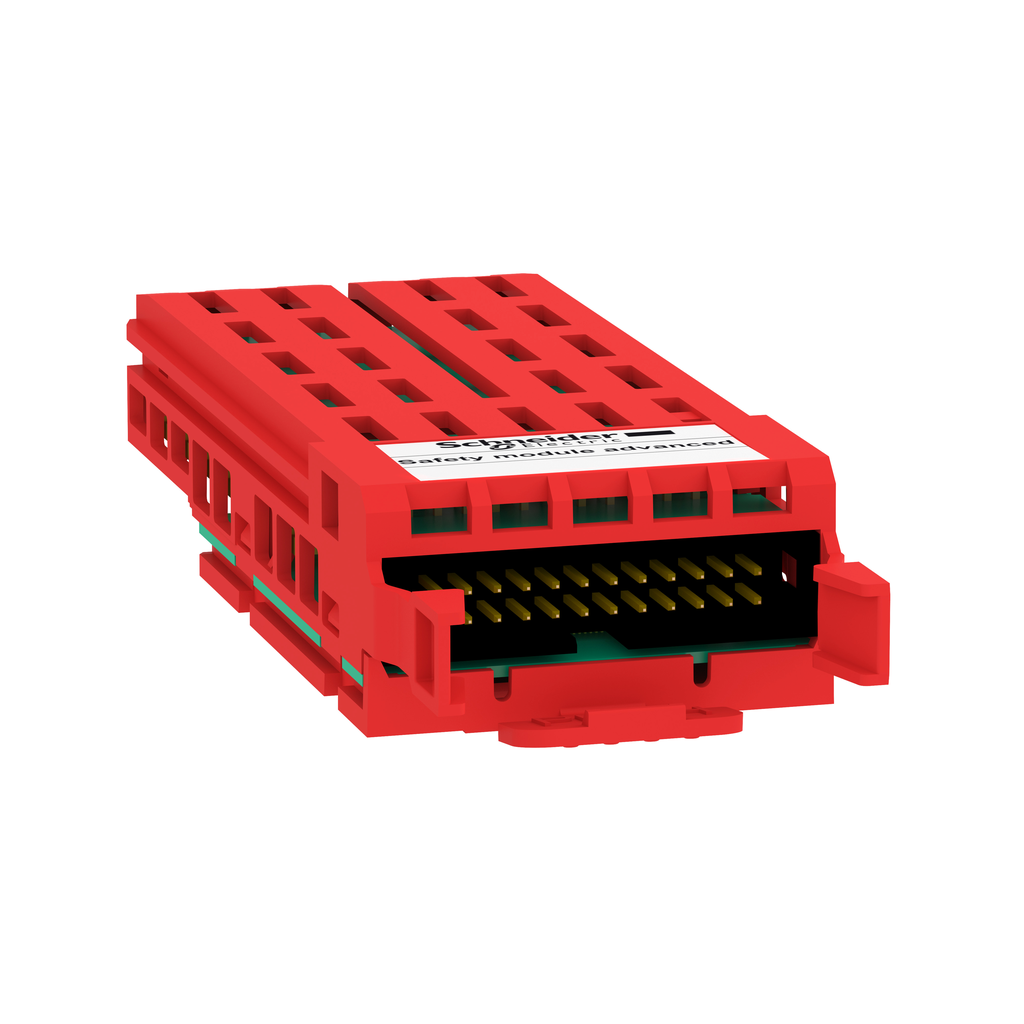

VW3A3802
safety module advanced electronic card, Altivar, 24V DC
Specifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2211035 |
| Sustainable Offer Status | Green Premium product |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI2211035 |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mounting Support | Integrated in drive |
| Output Voltage | 24 V DC |
| Maximum Switching Current | 0.5 A |
| Maximum Voltage Drop | <1 V at 0.5 A |
| Input Current | <= 20 mA without load |
| Rated Voltage | 24 V DC - 15...20 % |
| Safety Function |
|
| Maximum Load Capacitance | 1 µF |
| Inductive Load |
|
| Residual Ripple | < 5 % |
| Country of Origin | Indonesia |
| Range Of Product |
|
| Product Or Component Type | safety module |
| Product Specific Application |
|
| Standards | IEC/EN 61800-5-2 |
