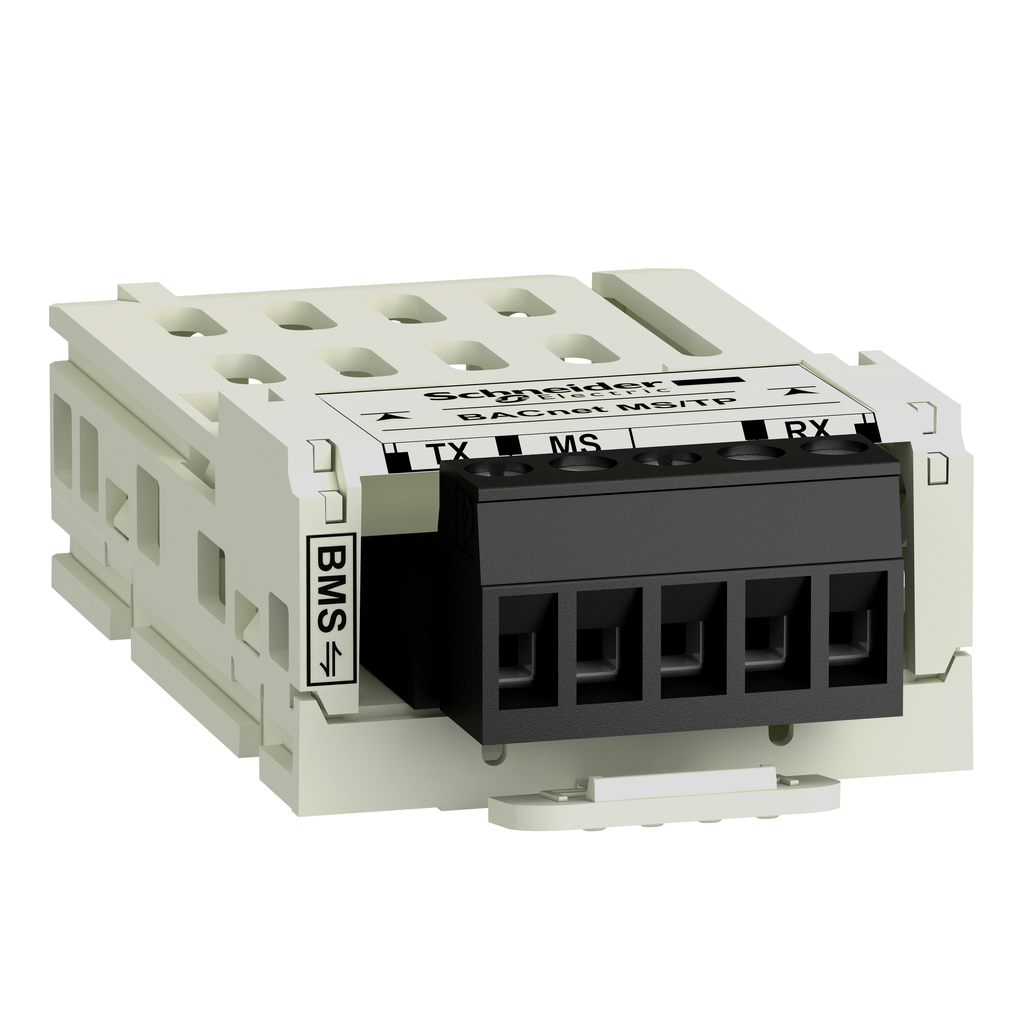

VW3A3725
communication module BACnet MS TP, Altivar, 5 pin removable terminal block, IP20
Specifications
| Ambient Air Temperature For Operation | -20-65 °C |
|---|---|
| Product Certifications |
|
| Storage Altitude | 0-3048 m |
| Electromagnetic Compatibility |
|
| Vibration Resistance |
|
| Shock Resistance | 15 gn 11 ms |
| Ambient Air Temperature For Storage | -25-70 °C |
| Relative Humidity | 5-95 % without condensation |
| Ip Degree Of Protection | IP20 |
| Operating Altitude | 0...6561.68 ft (0...2000 m) |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2010018EN |
| Sustainable Offer Status | Green Premium product |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | X |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Communication Network Type | RS485 |
| Electrical Connection | screw terminal block 5-pin removable terminal block, BACnet MS/TP |
| Transmission Support Medium | 2 twisted pairs |
| Net Weight | 0.035 kg |
| Communication Service |
|
| Communication Port Protocol | BACnet MS/TP |
| Display Type |
|
| Range Compatibility |
|
| Transmission Rate | 9.6, 19.2, 38.4, 76.8 kbit/s |
| Product Compatibility | ATV600 |
| Country of Origin | Indonesia |
| Weight | 0.035 kg |
| Range Of Product | Altivar |
| Product Or Component Type | communication module |
