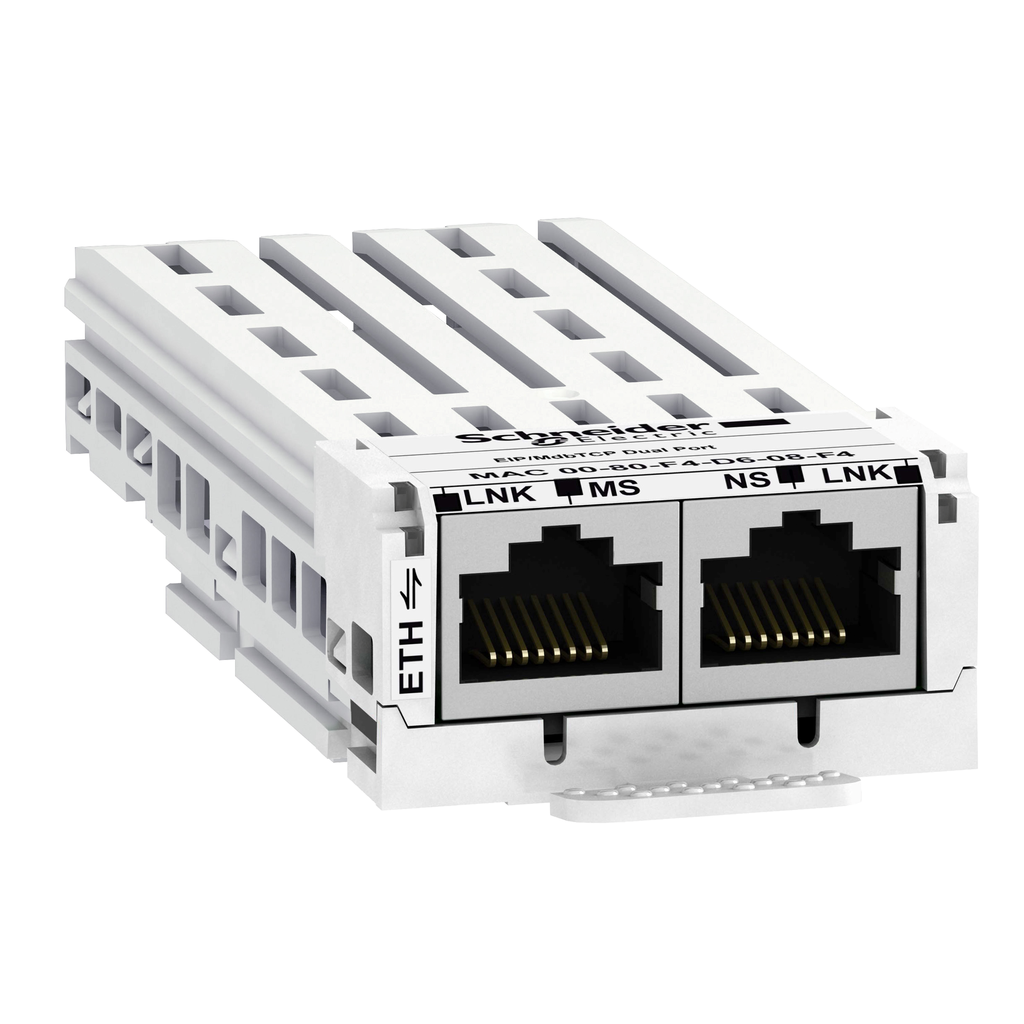

VW3A3720
communication module EtherNet IP Modbus TCP, 10 or 100Mbps, 2 x RJ45 connectors
This Ethernet/IP, ModbusTCP communication module enables integration of your drive in your process control network. It is simple to install and remove from Altivar drives thanks to its modular withdrawable design. It is compatible with Altivar Process ATV600 and Altivar process Modular. It has 2 x RJ45 connector.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2010006EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | X |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Communication Network Type | IPv6 (internet protocol) |
| Bus Profile |
|
| Electrical Connection | 2 connectors RJ45, Ethernet IP/Modbus TCP |
| Exchange Mode | half duplex and full duplex |
| Net Weight | 0.2 kg |
| Topology | daisy chain |
| Communication Service |
|
| Communication Port Protocol |
|
| Time Synchronisation Protocol | SNTP |
| Display Type |
|
| Web Services |
|
| Range Compatibility |
|
| Transmission Rate | 10/100 Mbps |
| Web Server | embedded HTTP server |
| Country of Origin | Indonesia |
| Weight | 0.2 kg |
| Range Of Product | Altivar |
| Product Or Component Type | communication module |
| Product Certifications |
|
