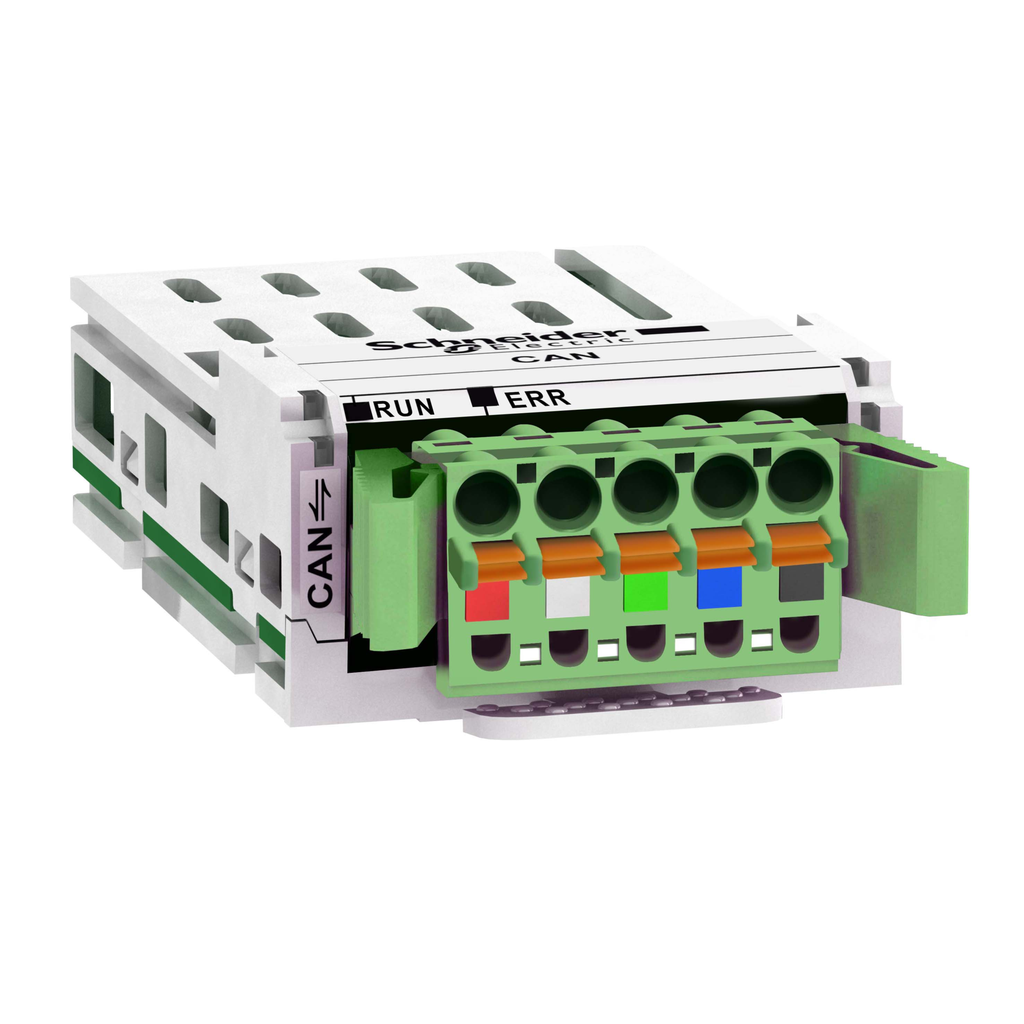

communication module CANopen, Altivar, Lexium, spring 5 way terminal block
This Schneider Electric Altivar CANopen open style communication module has 1 x 5-way screw connector. It complies with CANopen open style communication protocol. This communication module enables integration of your drive in your CANopen open style process control network. It is simple to install and remove from Altivar drives thanks to its modular withdrawable design. It is compatible with Altivar Machine ATV320, Altivar 32, Altivar Machine ATV340, Altivar Process ATV600 (ATV630, ATV650)Altivar Process ATV900 (ATV930, ATV950) and Lexium 32. Removable module allows last minute decisions on drive communication protocol, facilitates installation project management. This range is compatible with Altivar Process ATV900, Altivar Process ATV600, Lexium 32, Altivar Process Modular, Altivar Machine ATV340 except Sercos drives, Altivar 32 and Altivar Machine ATV320 and Lexium 32 servo drives. Altivar variable speed drives and soft starters deliver top performance in motor control applications across machines, processes and buildings.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Altivar |
|---|---|
| Product Or Component Type | communication module |
| Warranty | 18 months |
| Communication Port Protocol | CANopen, CANmotion |
| Electrical Connection | spring terminal 5-way terminal block, CANopen, CANmotion |
| Product Compatibility | Lexium 32 |
| Range Compatibility |
|
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1407005EN |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1407005EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
