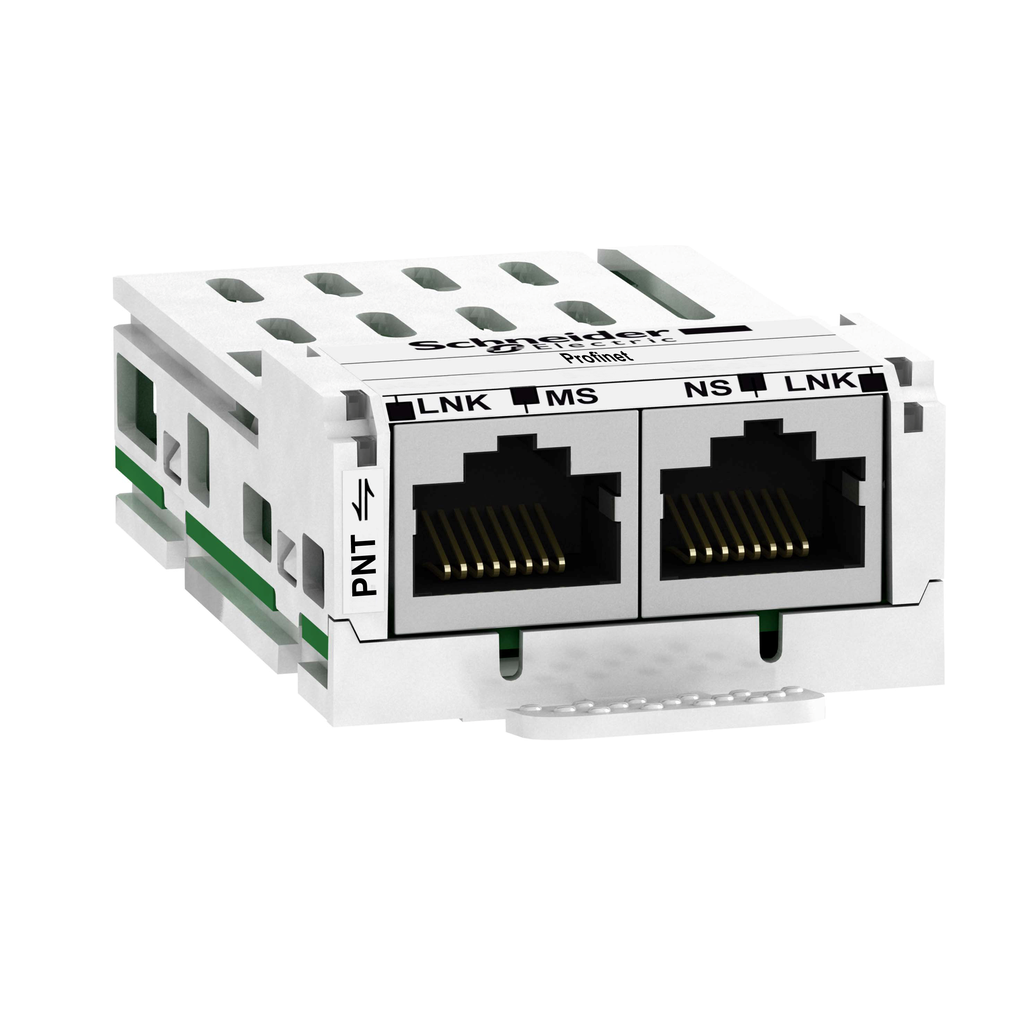

VW3A3627
communication module Profinet, Altivar, 100Mbits, 2 x RJ45 connectors
This Altivar Profinet communication module has 2 ports with RJ45 connectors. It is compatible with Altivar Process ATV600 (ATV630, ATV650), Altivar Process ATV900 (ATV930, ATV950), Altivar Machine ATV320, Altivar 32 and Altivar Machine ATV340. Removable module allows last minute decisions on drive communication protocol and thus facilitates installation project management.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | Sweden |
|---|---|
| Weight | 0.3 kg |
| Range Of Product | Altivar |
| Product Or Component Type | communication module |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2010006EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | X |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Standards | IEC 61800-7-201 (CiA 402) |
| Bus Profile | PROFIdrive |
| Electrical Connection | 2 connectors RJ45, Ethernet |
| Net Weight | 0.3 kg |
| Communication Port Protocol |
|
| Display Type |
|
| Range Compatibility |
|
| Transmission Rate | 100 Mbits |
