VW3A3618

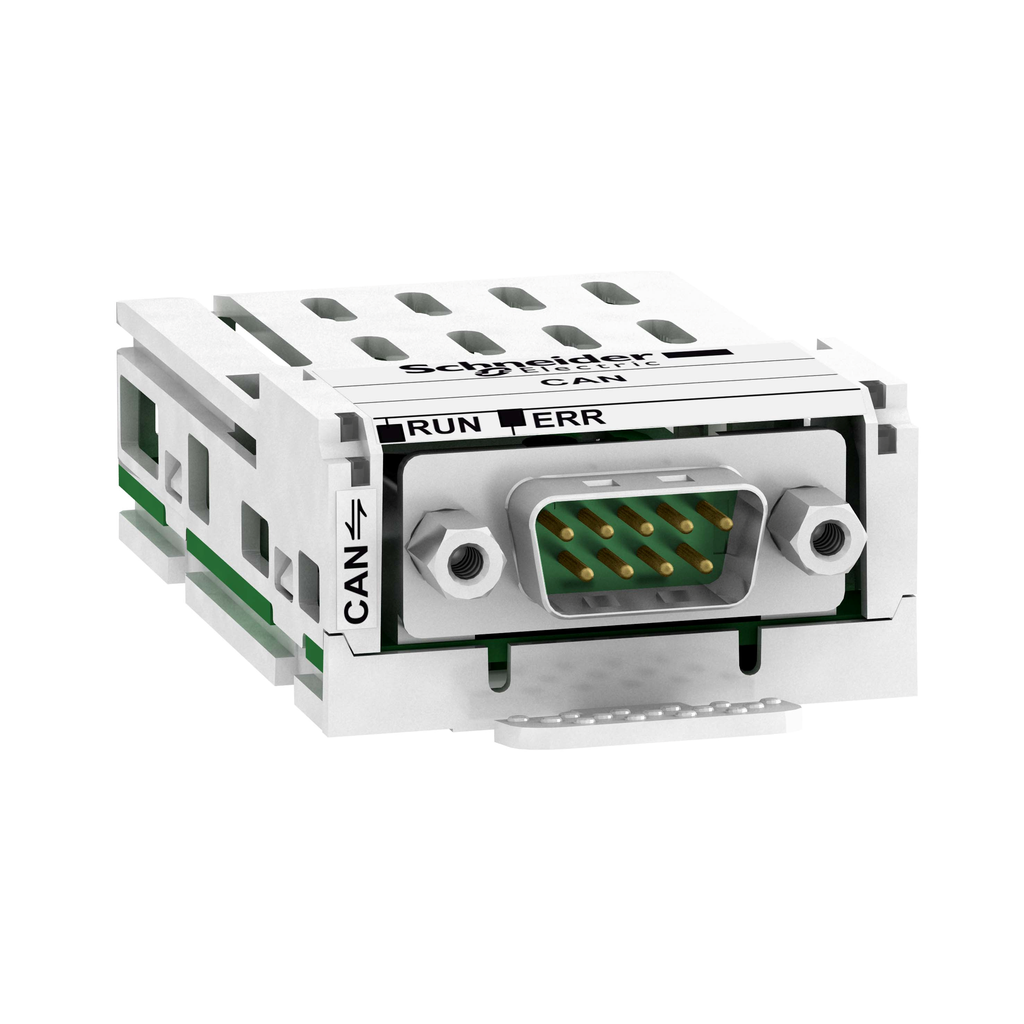

communication module CANopen, Altivar, Lexium, 1 male SUB D9 connector
This Schneider Electric Altivar CANopen communication module has 1 x 9-way female SUB-D connector. It offers 10/100Mbps speeds and an embedded HTTP server. This communication module enables integration of your drive in your CANopen D-Sub 9 process control network. It is simple to install and remove from Altivar drives thanks to its modular withdrawable design. It is compatible with Altivar 32, Altivar Machine ATV320, Altivar Process ATV600 (ATV630, ATV650)Altivar Process ATV900 (ATV930, ATV950), Lexium 32 and Altivar Machine ATV340. Removable module allows last minute decisions on drive communication protocol, facilitates installation project management.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | United States |
|---|---|
| Range Of Product | Altivar |
| Accessory / Separate Part Category | communication accessories |
| Product Or Component Type | communication module |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2010018EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | X |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Electrical Connection | 1 male connector SUB-D 9, CANopen, CANmotion |
| Communication Port Protocol | CANopen, CANmotion |
| Range Compatibility |
|
| Product Compatibility | Lexium 32M |
| Warranty | 18 months |
