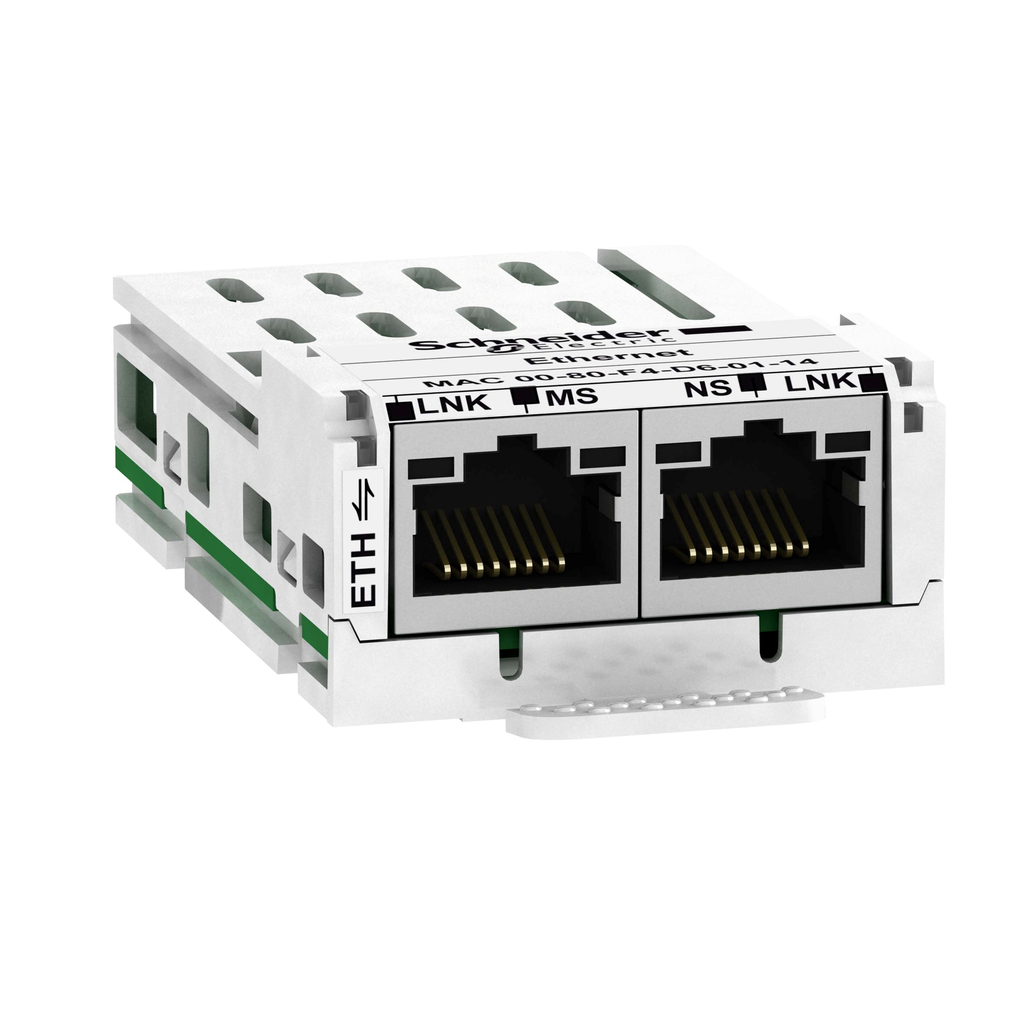

VW3A3616 – communication module Modbus TCP and Ethernet IP, Altivar, 10 or 100Mbps, 2 x RJ45 connectors
VW3A3616
communication module Modbus TCP and Ethernet IP, Altivar, 10 or 100Mbps, 2 x RJ45 connectors

This Altivar Ethernet TCP/IP communication module has 2 ports with RJ45 connectors. It is compatible with Altivar Machine ATV320, Lexium 32 and Altivar 32. Removable module allows last minute decisions on drive communication protocol and thus facilitates installation project management.

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Rohs Exemption Information Yes
Mercury Free Yes
Environmental Disclosure ENVPEP2010006EN
Sustainable Offer Status Green Premium product
Pvc Free Yes
Toxic Heavy Metal Free Yes
California Proposition 65 WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation X
Circularity Profile N/A
Eu Rohs Directive Pro-active compliance (Product out of EU RoHS legal scope)
Country of Origin China
Weight 0.3 kg
Range Of Product Altivar
Accessory / Separate Part Category communication accessories
Product Or Component Type communication module
Addressing IP addressing manual, BOOTP or DHCP
Electrical Connection
  • 1 connector RJ45, EtherNet/IP
  • 1 connector RJ45, Modbus TCP
Exchange Mode half duplex and full duplex
Net Weight 0.3 kg
Communication Service
  • up to 8 connections (includes connections of Modbus TCP/Ethernet IP) Ethernet IP/Modbus TCP
  • FDR Agent Ethernet IP/Modbus TCP
  • read holding registers (03), 63 words max Modbus TCP
  • read input registers (04), 63 words max Modbus TCP
  • write single register (06) Modbus TCP
  • write multiple registers (16), 63 words max Modbus TCP
  • read/write multiple registers (23) Modbus TCP
  • read device identification (43) Modbus TCP
  • diagnostics (08) Modbus TCP
  • I/O scanner : read/write, 6 words maximum Modbus TCP
  • communication monitoring Modbus TCP
  • SNMP agent Ethernet IP
  • Master/Slave hierarchy ODVA AC drive profile and CiA 402 profile Ethernet IP
  • fixed communication monitoring adjusted by Ethernet IP scanner adaptor (Master) Ethernet IP
Communication Port Protocol
  • Modbus TCP
  • EtherNet/IP
Display Type
  • 1 LED MS (Module Status)
  • 1 LED NS (Network Status)
  • 1 LED Ethernet port activity
  • 1 LED Modbus TCP port activity
Range Compatibility
  • Altivar Machine ATV320
  • Altivar 32
  • Lexium 32
Transmission Rate 10/100 Mbps
Product Compatibility Lexium 32M
Warranty 18 months
