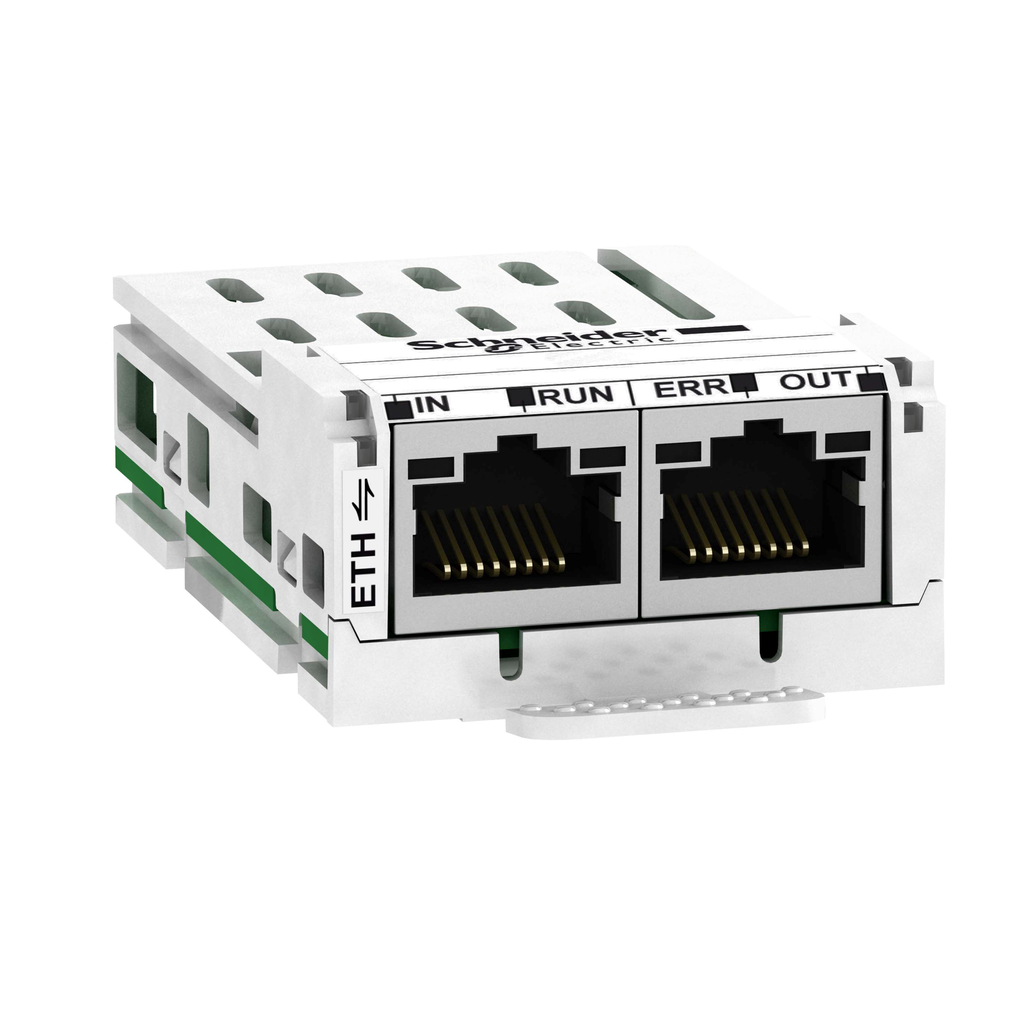

VW3A3601
communication module Ethercat, Altivar, 100Mbps, 2 x RJ45 connectors
This Schneider Electric Altivar EtherCAT communication module has 2 ports with RJ45 connectors. This communication module enables integration of your drive in your EtherCAT process control network. It is simple to install and remove from Altivar drives thanks to its modular withdrawable design. It is compatible with Altivar Process ATV930 & ATV950, Altivar 32, Lexium 32, Altivar Machine ATV320 and Altivar Machine ATV340. It weighs 0.29kg.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Standards | IEC 61800-7-201 (CiA 402) |
|---|---|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2010006EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | X |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Addressing |
|
| Maximum Cable Distance Between Devices | 100 m 100 Mbps |
| Electrical Connection | 2 connectors RJ45 |
| Communication Service |
|
| Communication Port Protocol | EtherCAT |
| Display Type |
|
| Range Compatibility |
|
| Transmission Rate | 100 Mbps |
| Product Compatibility | Lexium 32M |
| Country of Origin | France |
| Range Of Product | Altivar |
| Accessory / Separate Part Category | communication accessories |
| Product Or Component Type | communication module |
