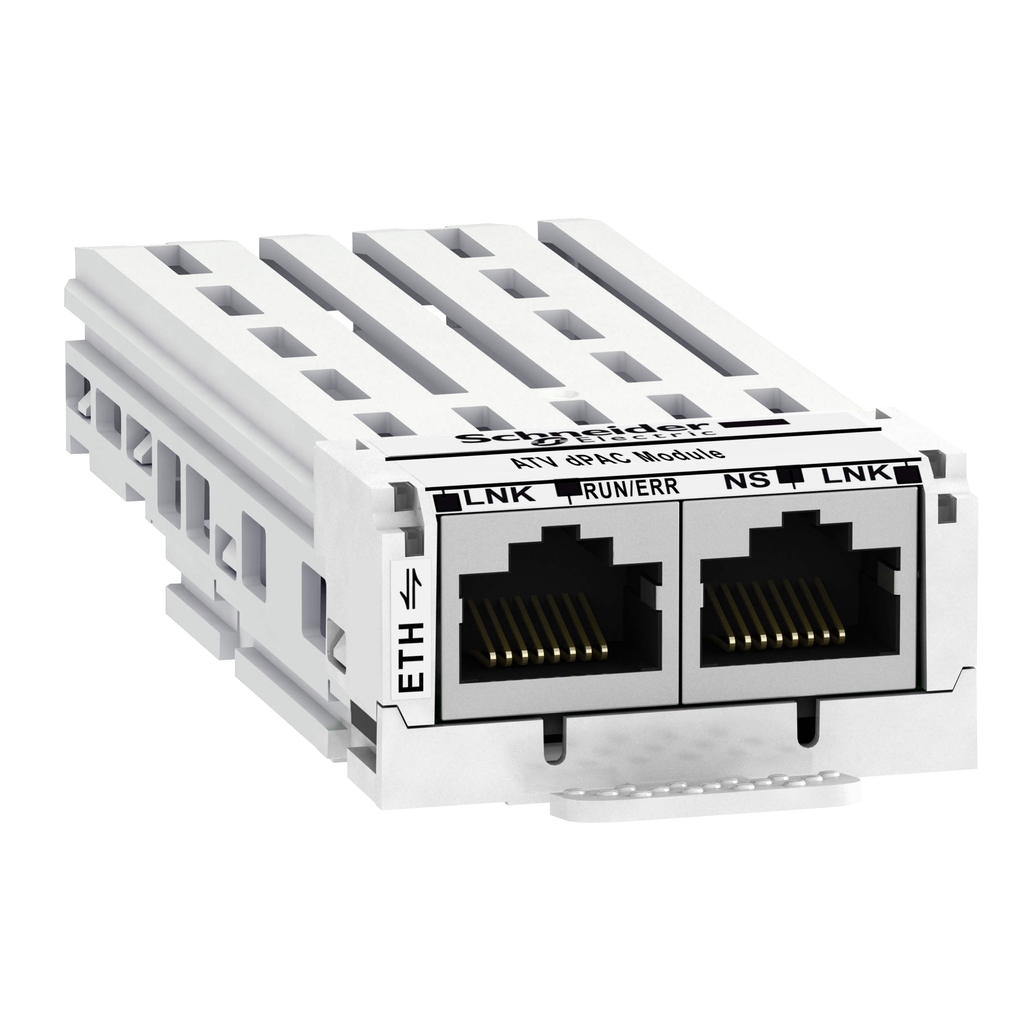

dPAC module, Altivar, 10/100Mbps, 2 x RJ45 connectors
The Altivar dPAC module is part of the EcoStructure Automation Expert hardware controller range. It is a drive integrated dPAC controller that supports Altivar 340 and Altivar Process 600 and 900 drives. The controller carries standard Altivar Process and Altivar Machine extended I/O, relay and encoder modules. It is an drive-embedded IEC 61499 controller for highly distributed and drive centric architectures. It includes 7MB program memory, dual RJ45 Ethernet sockets and supports 16 Modbus/TCP clients, OPC UA and auto discovery. The module is compatible with Altivar Process Drive and Machine Drive I/O modules. It weighs 0.02kg (0.04lb). EcoStruxure Automation Expert is a new category of software defined automation, enabling next generation integrated architectures and Industry 4.0 solutions. Depending on the specific drive type used for ATV dPAC integration, the standards and certifications must be checked in the corresponding ATV340/600/900 manual.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Communication Network Type |
|
|---|---|
| Data Backed Up | 32 MB flash memory backup of user programs |
| Exchange Mode | half duplex and full duplex |
| Port Ethernet | Ethernet 10BASE-T/100BASE-TX - 2 copper cable |
| Battery Type | CR2032 lithium non-rechargeable 10 year(s) |
| Net Weight | 0.15 kg |
| Topology |
|
| Integrated Connection Type | dual-port Ethernet 2 RJ45 connectors |
| Communication Service |
|
| Local Signalling |
|
| Realtime Clock | with VW3A1111 Altivar graphic display terminal |
| Web Services |
|
| Input/Output Number |
|
| Web Server | Altivar drive Embedded HTTPS server |
| Country of Origin | Indonesia |
| Weight | 0.15 kg |
| [Us] Rated Supply Voltage | 24 V DC supplied by the host Altivar drive |
| Range Of Product | EcoStruxure Automation Expert |
| Product Or Component Type | processor module |
| Range Compatibility |
|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
