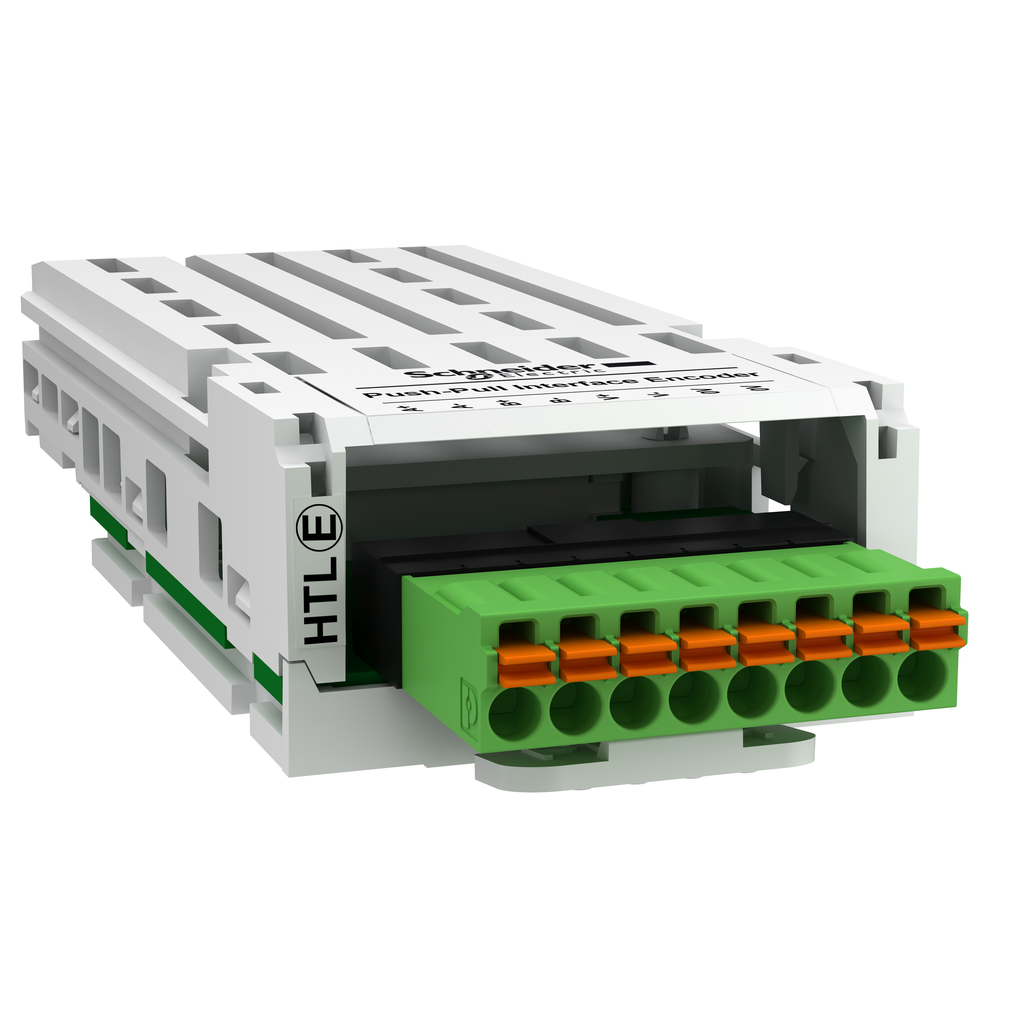

High threshold logic encoder interface module, Altivar, 12 to 24V, 0.1 to 0.2A, 1 removable spring connector
This HTL encoder interface module is an option for variable speed drives of Altivar range. It is compatible with Altivar Machine ATV340 and Altivar Process ATV900 drives. It improves drive performance irrespective of the motor load state, zero speed torque, accurate speed regulation, torque accuracy, shorter response times on a torque surge, improved dynamic performance in transient state. It is protected against short circuits and overloads. It weighs 150g. It is used for Flux Vector Control operation with sensor (FVC mode) for asynchronous motors, or for Vector Control operation with speed feedback (FSY mode) for synchronous motors. It is inserted in a dedicated slot of the drive.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2010018EN |
| Sustainable Offer Status | Green Premium product |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | X |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Country of Origin | Indonesia |
| Weight | 0.15 kg |
| Range Of Product | Altivar |
| Product Or Component Type | encoder interface module |
| Encoder Type | high threshold logic (HTL) |
| Range Compatibility |
|
| [Us] Rated Supply Voltage |
|
| Maximum Cable Distance Between Devices | 500 m |
| Connector Type | 1 removable spring connector |
| Net Weight | 0.15 kg |
| Maximum Supply Current |
|
| Protection Type |
|
| Input Signal |
|
| Maximum Operating Frequency | 300 kHz |
