VW3A3423

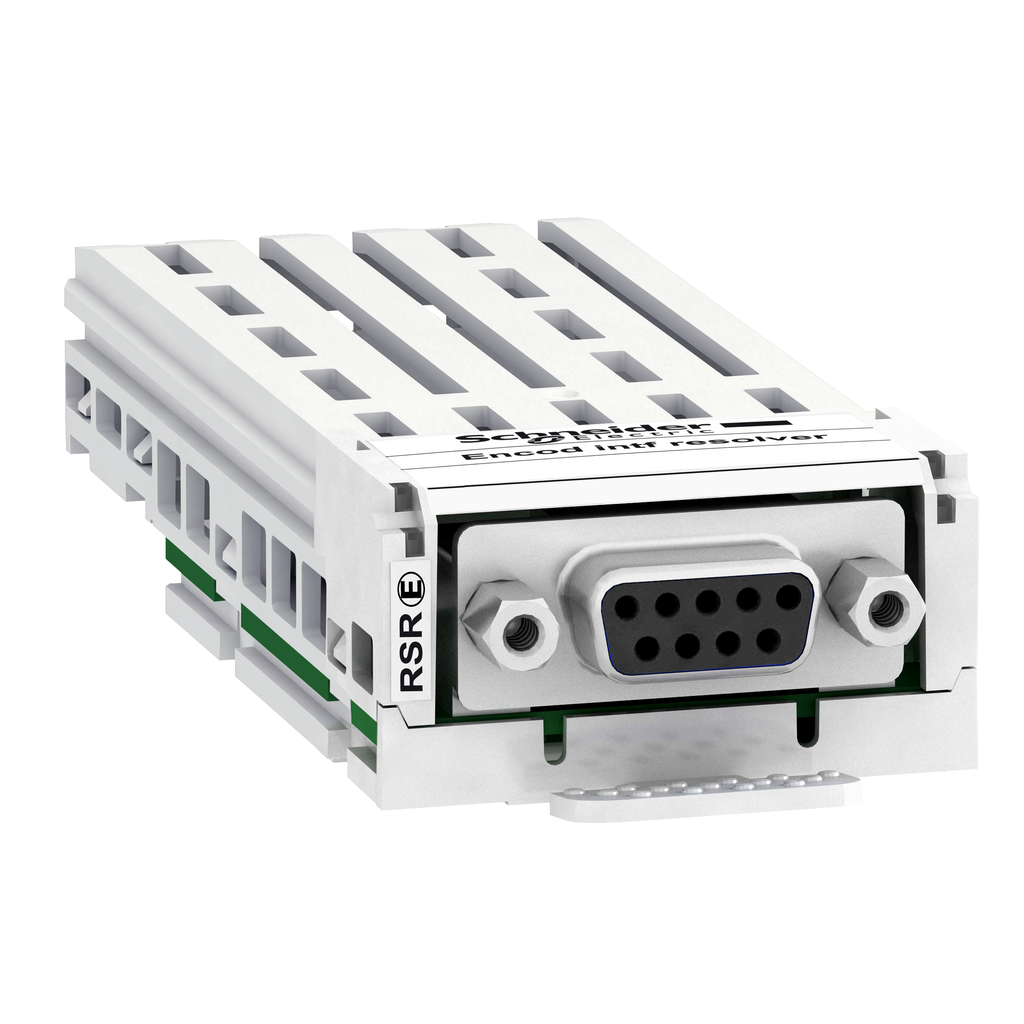

resolver interface module, Altivar, 1 female SUB D9 connector
This resolver encoder interface module can be used for Flux Vector Control operation with sensor for asynchronous motors. It can also be used for Vector Control operation with speed feedback for synchronous motors. It improves drive performance irrespective of the motor load state. This module is inserted in a dedicated slot of the variable speed drive. It is protected against encoder supply short circuits and overloads. It is compatible with Altivar Process ATV900 and Modular, and Altivar Machine ATV340. It has 1 female SUB-D 9 connector.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | United States |
|---|---|
| Weight | 0.15 kg |
| Range Of Product | Altivar |
| Product Or Component Type | encoder interface module |
| Encoder Type | resolver |
| Range Compatibility |
|
| Maximum Cable Distance Between Devices | 100 m |
| Connector Type | 1 female SUB-D 9 |
| Net Weight | 0.15 kg |
| Maximum Supply Current | 0.05 A |
| Output Signal | Ref+, Ref- |
| Protection Type |
|
| Input Signal | Sin+, Sin-, Cos+, Cos-, Temp+, Temp- |
| Ratio | 3/10, 1/2, 3/4, 1 |
| Maximum Operating Frequency | 12 kHz |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2010009EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | X |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
