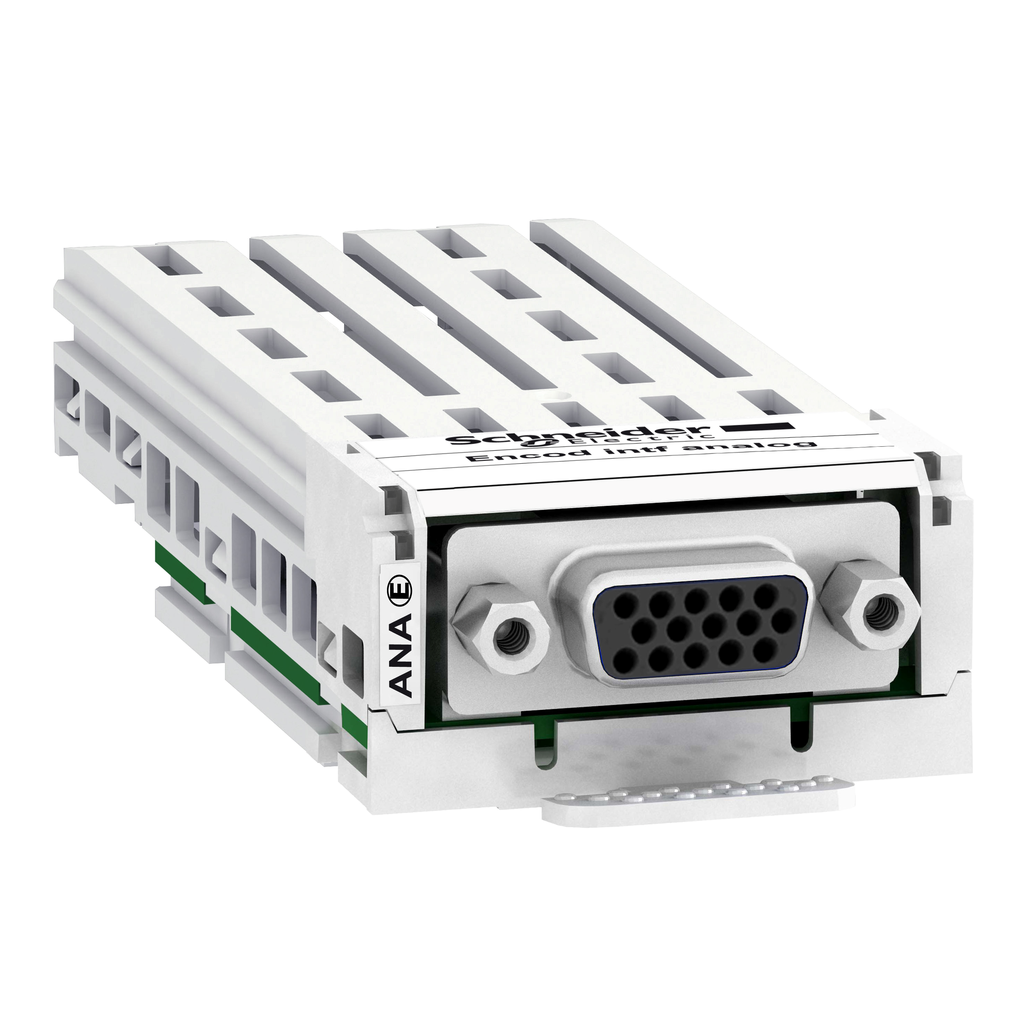

VW3A3422
analog encoder interface module, Altivar, 5 to 24V, 1 female SUB D15 connector
This analog encoder interface module can be used for Flux Vector Control operation with sensor for asynchronous motors. It can also be used for Vector Control operation with speed feedback for synchronous motors. It improves drive performance irrespective of the motor load state. This module is inserted in a dedicated slot of the variable speed drive. It is protected against encoder supply short circuits and overloads. It is compatible with Altivar Process ATV900 and Modular, and Altivar Machine ATV340. It has 1 female high density SUB-D 15 connector.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2010009EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | X |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Maximum Cable Distance Between Devices | 100 m |
| Connector Type | 1 female high density SUB-D 15 |
| Net Weight | 0.15 kg |
| Maximum Supply Current |
|
| Output Signal | Data+, Data- |
| Protection Type |
|
| Input Signal | Data+, Data-, Sin, RefSin, Cos, RefCos, Temp+, Temp- |
| Maximum Operating Frequency | 100 kHz |
| Country of Origin | Indonesia |
| Weight | 0.15 kg |
| Range Of Product | Altivar |
| Product Or Component Type | analog encoder interface module |
| Encoder Type |
|
| Range Compatibility |
|
| [Us] Rated Supply Voltage |
|
