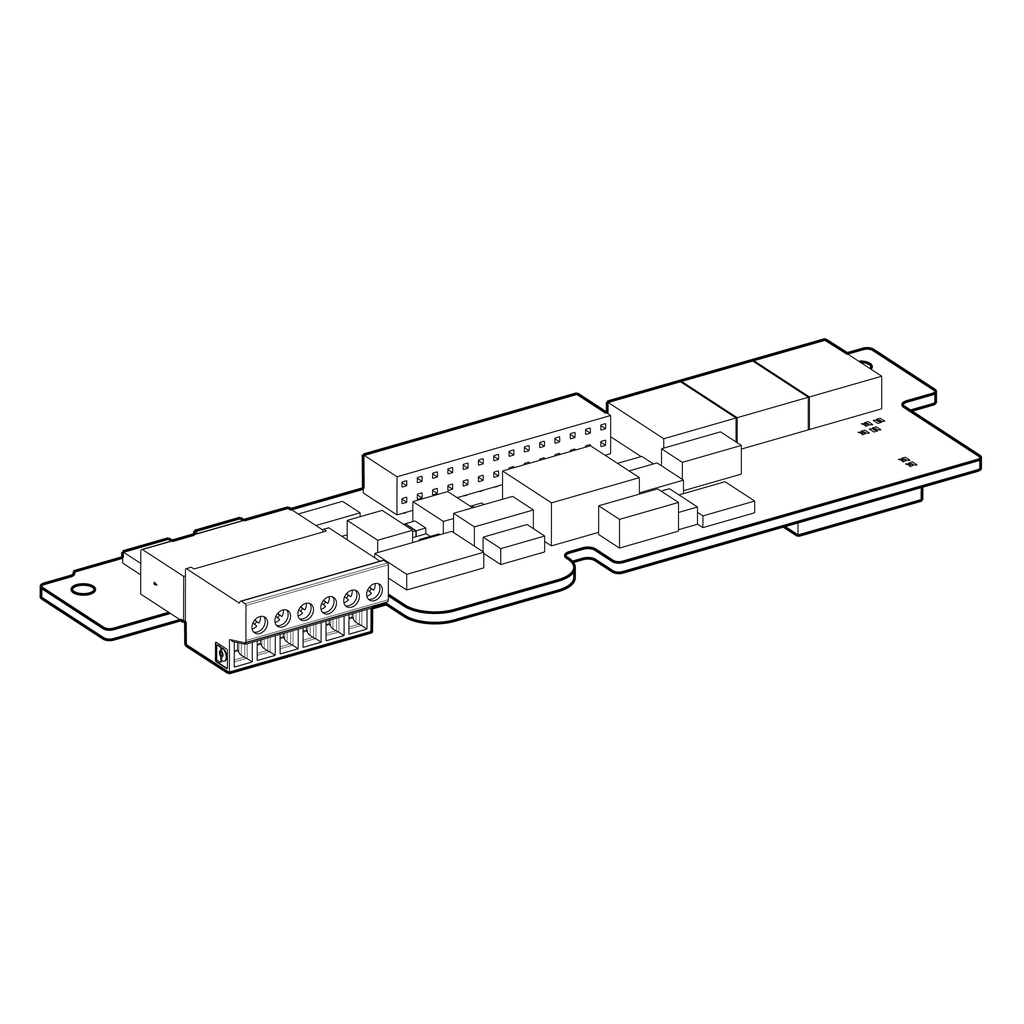

VW3A3407
encoder interface card, Altivar, with push-pull outputs, 24V DC
This encoder interface card can be used for Flux Vector Control operation with sensor for asynchronous motors. It can also be used for Vector Control operation with speed feedback for synchronous motors. It improves drive performance irrespective of the motor load state. It is compatible with push-pull outputs encoder technology. This card is simple to install and remove, it is inserted in a dedicated slot of the variable speed drive. It is protected against encoder supply short circuits and overloads. It is compatible with Altivar 61 and Altivar 71.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2010011EN |
| Sustainable Offer Status | Green Premium product |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | X |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Maximum Cable Distance Between Devices | 500 m |
| Electrical Connection | terminal 0.2 mm² AWG 24) <500 m, encoder, 100 mA 14 V |
| Voltage State 0 Guaranteed | <= 1.5 V |
| Maximum Supply Current | 0.175 A |
| Input Impedance | 1000 Ohm |
| Protection Type |
|
| Input Signal |
|
| Maximum Operating Frequency | 300 kHz |
| Voltage State 1 Guaranteed | > 11.5...< 25 V |
| Country of Origin | United States |
| Discrete Output Type | push-pull |
| Number Of Pulses Per Revolution |
|
| Range Of Product | Altivar |
| Product Or Component Type | encoder interface card |
| Range Compatibility |
|
| [Us] Rated Supply Voltage | 24 V DC 20-30 V) |
| Warranty | 18 months |
