VW3A3401 - encoder interface card, Altivar, differential outpt, with RS422 compatible, 5V DC

VW3A3401

encoder interface card, Altivar, differential outpt, with RS422 compatible, 5V DC

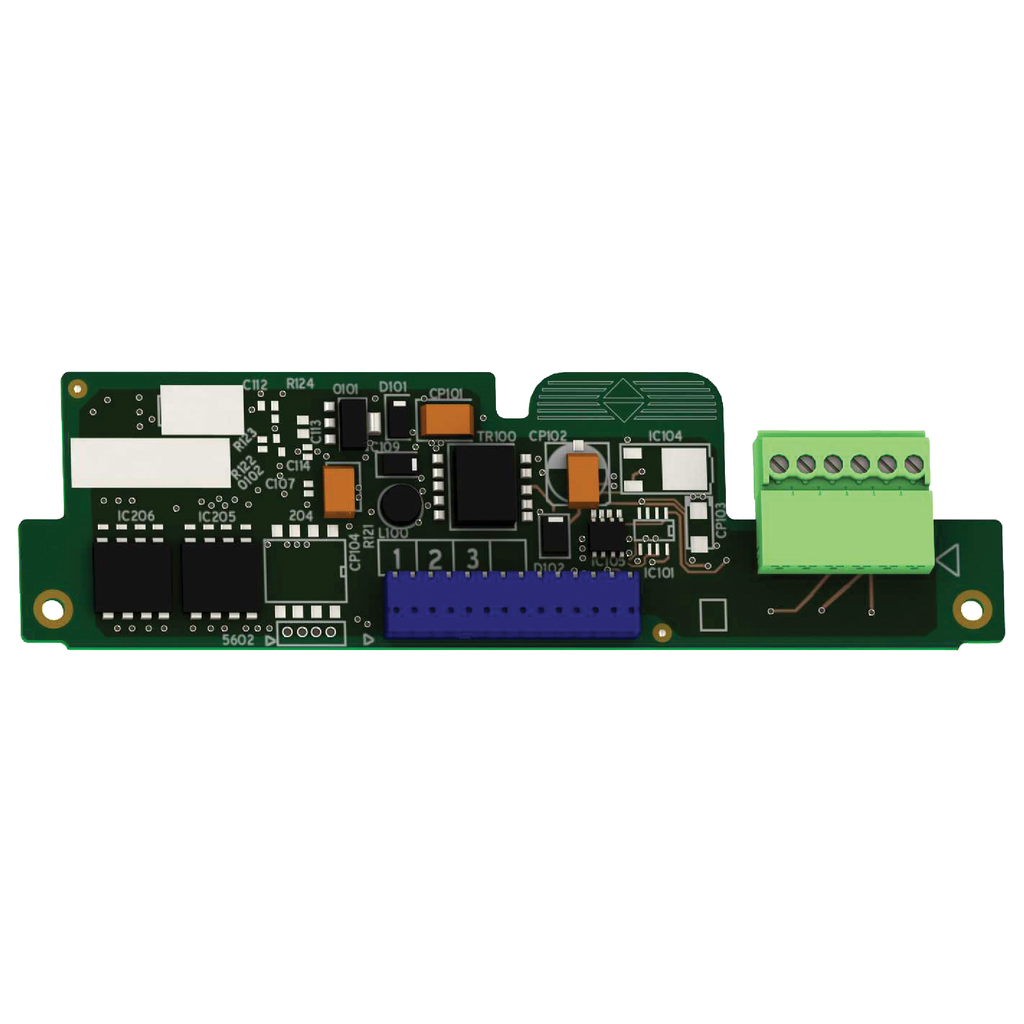

This encoder interface card can be used for Flux Vector Control operation with sensor for asynchronous motors. It can also be used for Vector Control operation with speed feedback for synchronous motors. It improves drive performance irrespective of the motor load state. It is compatible with RS 422 differential outputs encoder technology. This card is simple to install and remove, it is inserted in a dedicated slot of the variable speed drive. It is protected against encoder supply short circuits and overloads. It is compatible with Altivar 61 and Altivar 71.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP2010011EN
Sustainable Offer Status	Green Premium product
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation	X
Circularity Profile	N/A
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Maximum Cable Distance Between Devices	50 m
Electrical Connection	terminal 0.2 mm² AWG 24) <25 m, encoder, 100 mA 4.5 V terminal 0.5 mm² AWG 20) <25 m, encoder, 200 mA 4.5 V terminal 0.5 mm² AWG 20) <50 m, encoder, 100 mA 4.5 V terminal 0.75 mm² AWG 18) <50 m, encoder, 200 mA 4.5 V
Net Weight	0.2 kg
Maximum Supply Current	0.2 A
Input Impedance	440 Ohm
Protection Type	short-circuit protection overload protection
Input Signal	A B compliment of A compliment of B
Maximum Operating Frequency	300 kHz
Warranty	18 months
Country of Origin	Indonesia
Weight	0.2 kg
Discrete Output Type	differential
Number Of Pulses Per Revolution	10000 ATV71H......383 5000 all ATV61 drives 5000 ATV71H...M3 5000 ATV71H...M3X 5000 ATV71H...N4
Range Of Product	Altivar
Product Or Component Type	encoder interface card
Communication Port Protocol	RS422
Range Compatibility	Altivar Lift Altivar 61 Altivar 71Q Altivar 71 Altivar 61Q
[Us] Rated Supply Voltage	5 V DC 5-5.5 V)
