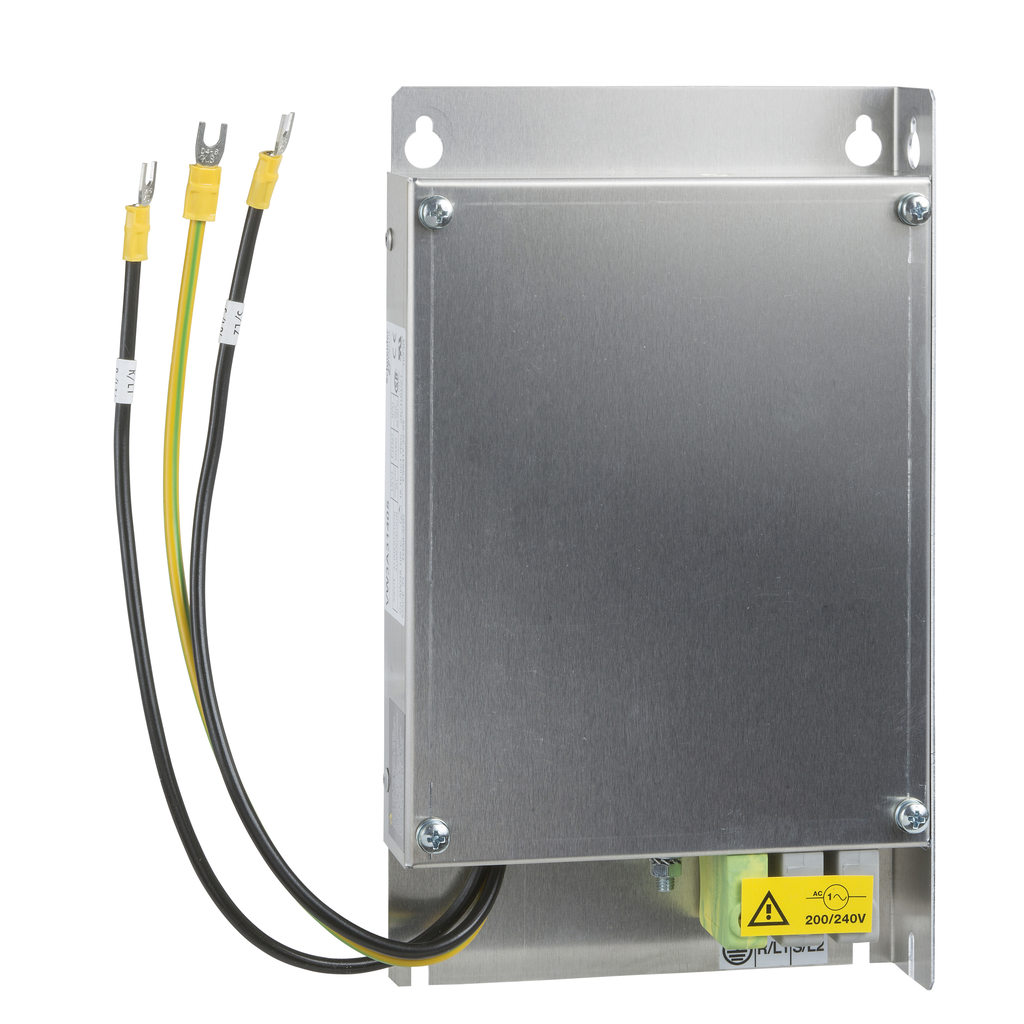

VW3A31403 – additionnal EMC filter S6 M2 – 1-phase supply – 16 A
VW3A31403
additionnal EMC filter S6 M2 - 1-phase supply - 16 A

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Standards IEC 61800-3
Ambient Air Temperature For Operation -10-50 °C
Shock Resistance 15 gn 11 ms IEC 60068-2-27
Vibration Resistance
  • 1 gn 13-150 Hz)IEC 60068-2-6
  • 1.5 mm peak to peak 3-13 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage -25-70 °C
Relative Humidity 0-93 % IEC 68-2-3
Ip Degree Of Protection
  • IP20
  • IP41 upper part)
Operating Altitude
  • <= 3280.84 ft (1000 m) without current derating
  • 3280.84...9842.52 ft (1000...3000 m) with current derating 1 % per 100 m
Warranty 18 months
Rohs Exemption Information Yes
Mercury Free Yes
Toxic Heavy Metal Free Yes
California Proposition 65 WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc Yes
China Rohs Regulation X
Eu Rohs Directive Pro-active compliance (Product out of EU RoHS legal scope)
Tolerance 10 %
Net Weight 0.775 kg
Earth Leakage Current 150 mA 50 Hz
Network Rated Voltage 200-240 V
Country of Origin Thailand
Weight 0.775 kg
Range Of Product Altivar
Product Compatibility
  • servo drive LXM230.75 kW
  • servo drive LXM231 kW
  • servo drive LXM231.5 kW
  • ATV312HU11M2
  • ATV312HU15M2
  • ATV31CU11M2
  • ATV31CU15M2
  • LXM05AD17F1
  • LXM05AD17M2
  • LXM05BD17F1
  • LXM05BD17M2
  • LXM05CD17M2
  • variable speed drive ATV320...C1.1 kW, 200...240 V single phase
  • variable speed drive ATV320...C1.5 kW, 200...240 V single phase
  • variable speed drive ATV320...W/ATV320...WS1.1 kW, 200...240 V single phase
  • variable speed drive ATV320...W/ATV320...WS1.5 kW, 200...240 V single phase
Product Or Component Type EMC input filter
Phase single phase
Product Specific Application radio interference input filter
Line Rated Current 16 A
Range Compatibility
  • Lexium 05
  • Altivar 312
  • Altivar 31C
  • Lexium 23 Plus
  • Altivar 312 Solar
  • Altivar Machine ATV320
Thermal Losses 6.9 W ATV31CU11M2
