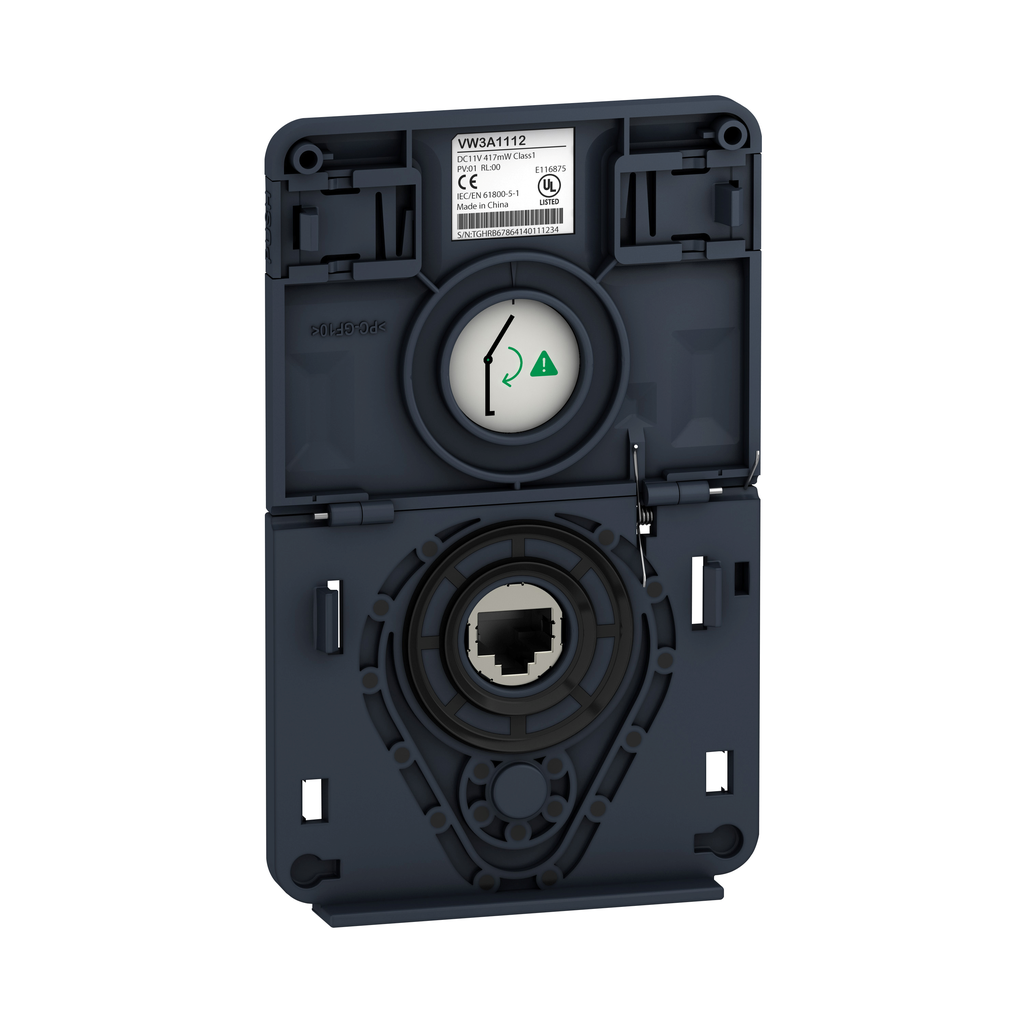

VW3A1112
door mounting kit, Altivar, for remote graphic terminal, IP65
This door mounting kit is an accessory for variable speed drives of Altivar range. This door mounting kit is designed for mounting the graphic terminal on enclosure door with IP 65/UL Type 12 degree of protection as standard. It comprises a tightening tool, cover plate to maintain IP 65 if no terminal connected, mounting plate, RJ45 for graphic display terminal, seal, fixing nut, anti-rotation pin, RJ45 for mounting cordset (10m maxi), grounding connector. A remote-mounting cordset VW3A1104Rxx has to be ordered separately.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | Indonesia |
|---|---|
| Range Of Product | Altivar |
| Accessory / Separate Part Category | mounting and fixing accessory |
| Range Compatibility |
|
| Accessory / Separate Part Type | mounting kit |
| Ip Degree Of Protection | IP65 |
| Accessory / Separate Part Destination | variable speed drive |
| Rohs Exemption Information | Yes |
| Environmental Disclosure | ENVPEP2010010EN |
| Sustainable Offer Status | Green Premium product |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Circularity Profile | N/A |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Kit Composition |
|
