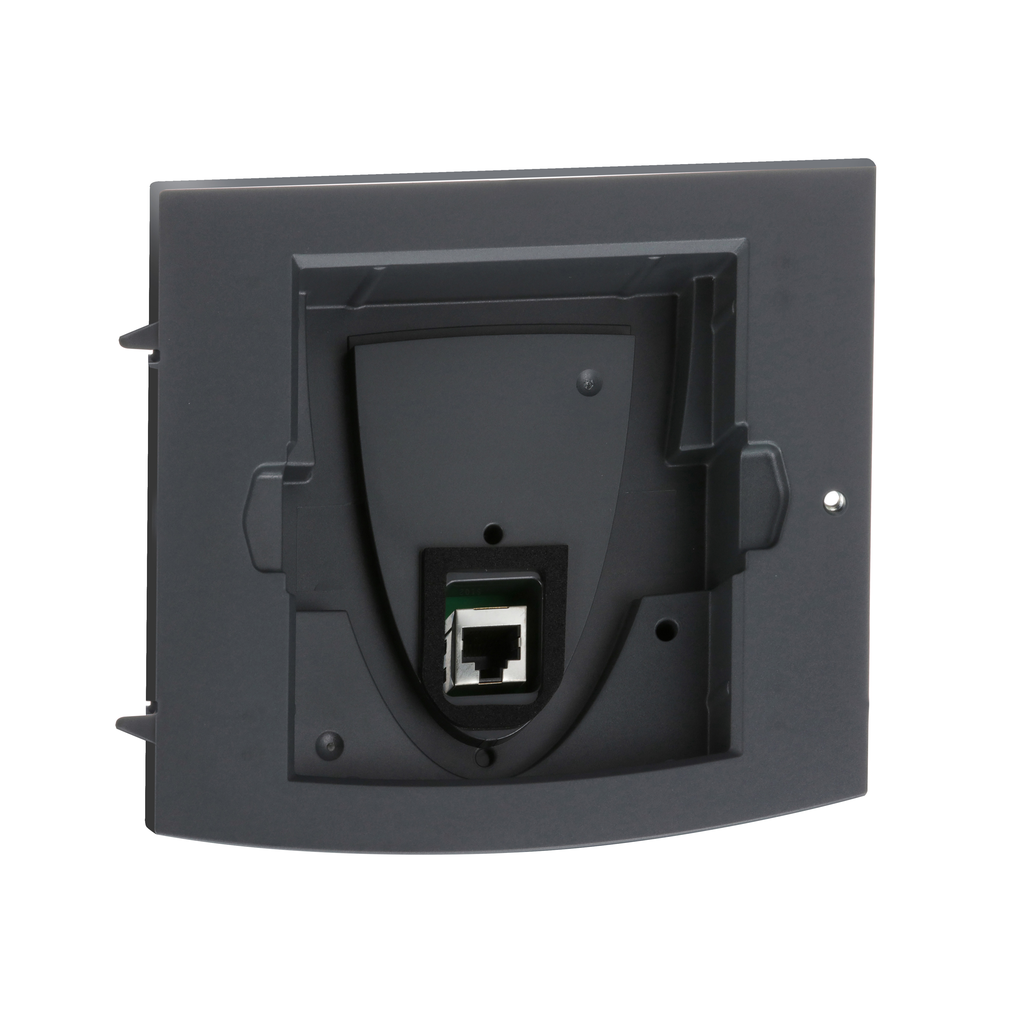

VW3A1102
door mounting kit, Altivar, variable speed drive, for remote graphic terminal, IP54
Altivar 71 Variable Frequency Drives are for constant torque applications from 1 to 700 HP. For the latest in high performance drives for heavy duty applications consider using an Altivar Process ATV900 family drive.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rohs Exemption Information | Yes |
|---|---|
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Country of Origin | France |
| Weight | 0.15 kg |
| Range Of Product | Altivar |
| Accessory / Separate Part Category | mounting and fixing accessory |
| Range Compatibility |
|
| Accessory / Separate Part Type | mounting kit |
| Ip Degree Of Protection | IP54 |
| Accessory / Separate Part Destination | variable speed drive |
| Net Weight | 0.15 kg |
| Kit Composition |
|
| Warranty | 18 months |
