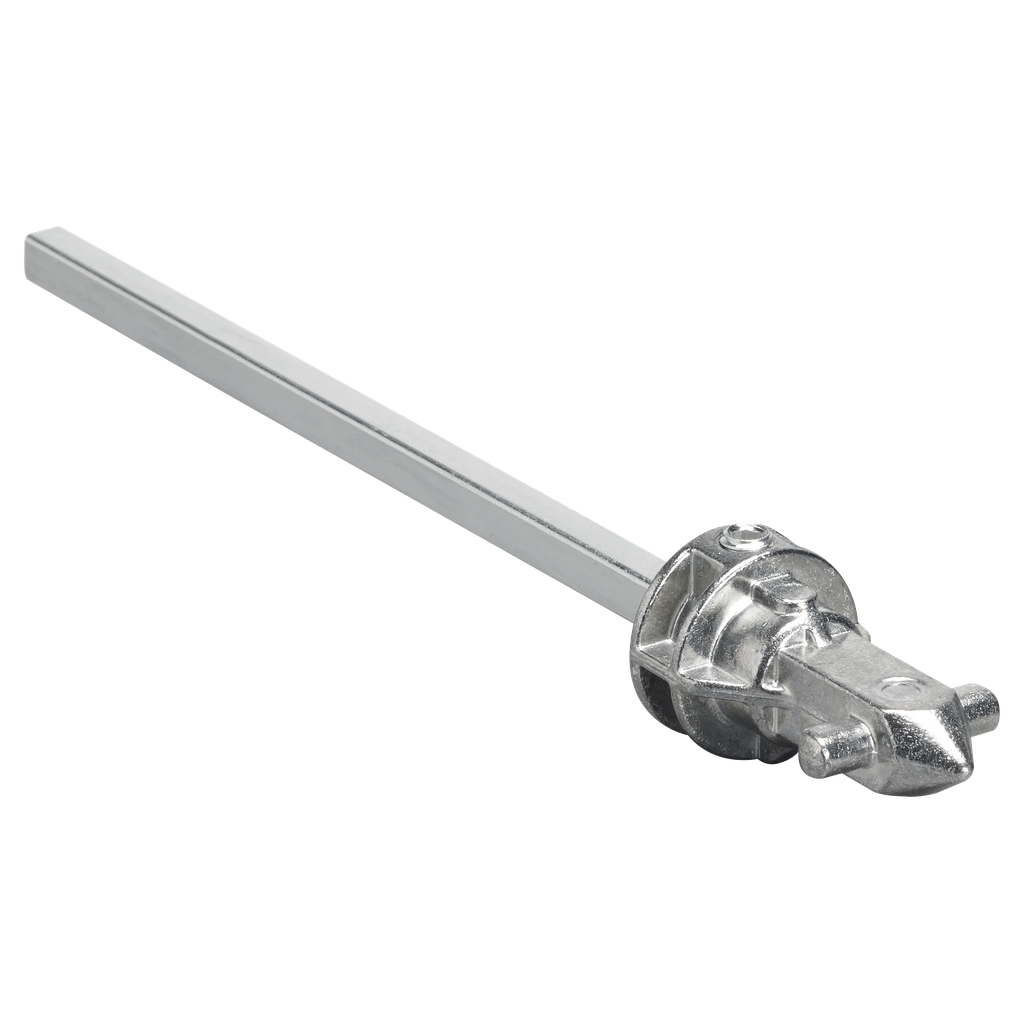

Disconnect switch, TeSys VLS, 300 mm shaft extension, 7 mm shaft
These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more. This family of disconnect switches has switches ranging from 16A to 125A. The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated. The 30A, 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated. Shaft extension is for rear-mounting handles VLSH3S7RD or VLSH3S7BD. It can also be used with a mechanical coupling system VLS8M2. This shaft extension is 0.28 inches by 0.28 inches and 11.81 inches long. The shaft extension weighs 0.40 lbs. The shaft extension is cULus Listed and meets IEC 60947-3 requirements.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | United States |
|---|---|
| Length | 328 mm |
| Width | 25 mm |
| Weight | 0.35 kg |
| Range Compatibility | TeSys TeSys VARIO LS VLSH |
| Product Or Component Type | shaft extension |
| Range | TeSys |
| Device Short Name | VLSS |
| Length | 328 mm |
| Net Weight | 0.35 kg |
| Width | 25 mm |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
