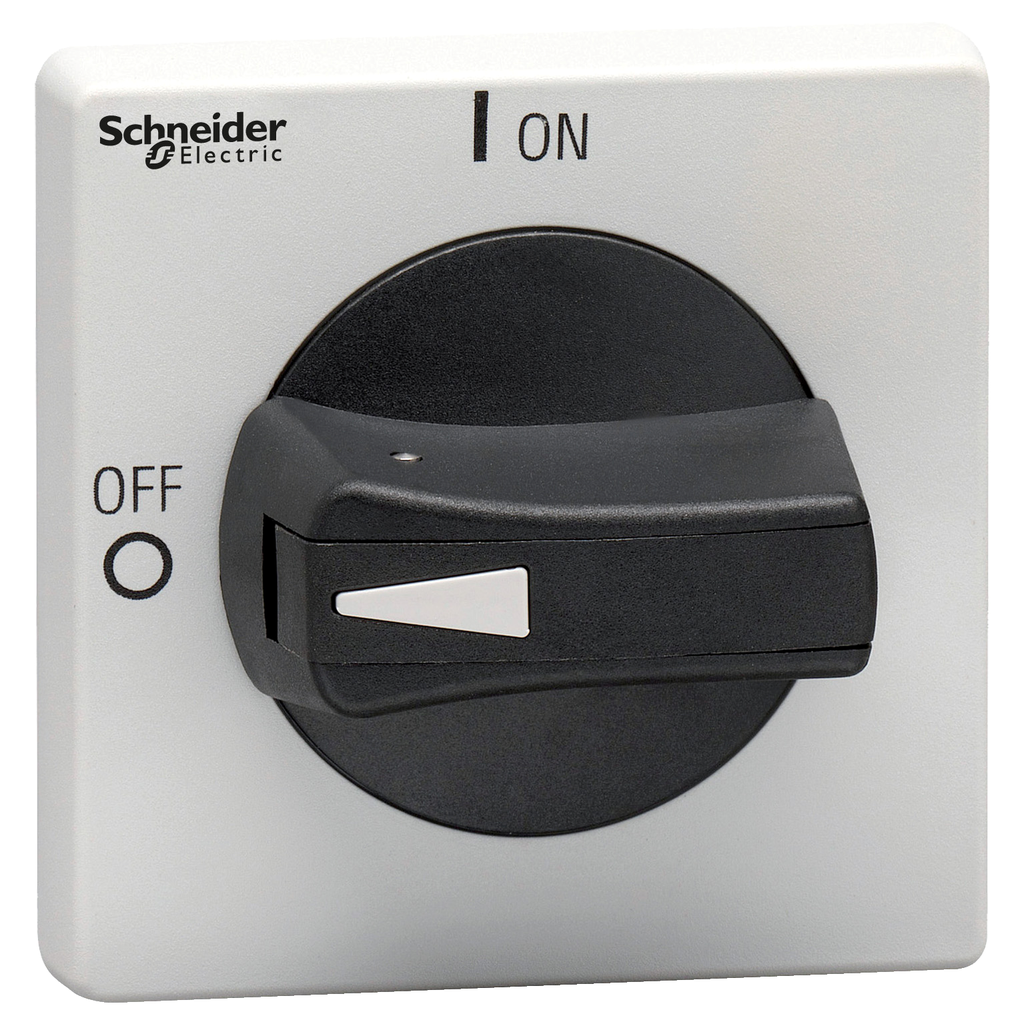

Disconnect switch, TeSys VLS, protruding rotary handle, screw mounting, 65x65 mm, black handle, 5 mm shaft
These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more. This family of disconnect switches has switches ranging from 16A to 125A. The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated. The 30A, 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated. This black rotary handle will work with any VLS3P disconnect switch. This 2.56 inch by 2.56 inch handle is mounted using four screws. 5 mm shafts are used with this handle. The front plate is grey in color. The rotary handle will accept 1 to 3 padlocks that are 0.16 to 0.31 inch in diameter. Handle is marked 0 / OFF - 1 / ON. Handle is 2.56 inches tall, 2.56 inches wide and 2.28 inches deep. The handle weighs 0.15 lbs. This handle is NEMA 1, 3R, 12, 4 and 4X rated and IP65 rated. This handle is cULus Listed and meets IEC 60947-3 requirements.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | Italy |
|---|---|
| Width | 65 mm |
| Height | 65 mm |
| Weight | 0.068 kg |
| Rotary Handle Padlocking | 1 to 3 padlocks 4-8 mm |
| Range Compatibility | TeSys TeSys VARIO LS VLS3P |
| Handle Front Plate Colour | grey |
| Handle Colour | black |
| Product Or Component Type | rotary handle |
| Marking |
|
| Range | TeSys |
| Device Short Name | VLSH |
| Height | 65 mm |
| Fixing Mode | by 4 screws |
| Base Dimension | 65 x 65 mm |
| Net Weight | 0.068 kg |
| Tightening Torque | 2.3 N.m |
| Width | 65 mm |
| Depth | 58 mm |
| Nema Degree Of Protection |
|
| Ip Degree Of Protection | IP65 |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Documents
- Add-on blocks and accessories for VLS series - QGH1879501 (pdf)
- Spec Sheet
- TeSys VLS Disconnect Switches Catalog - 9400CT1601 (pdf)
- Digest Catalog 08: Operating Mechanisms and Disconnect Switches - 0100CT1901_SEC-08 (pdf)
- Operating Mechanisms & Disconnect Switches: Section 8 - Digest 179 (2024) - Operator-Disconnects-Digest-Catalog-0100CT2401-SEC-08 (pdf)
- Industrial Control Panel Solutions Catalog - 8800CT1801 (pdf)
