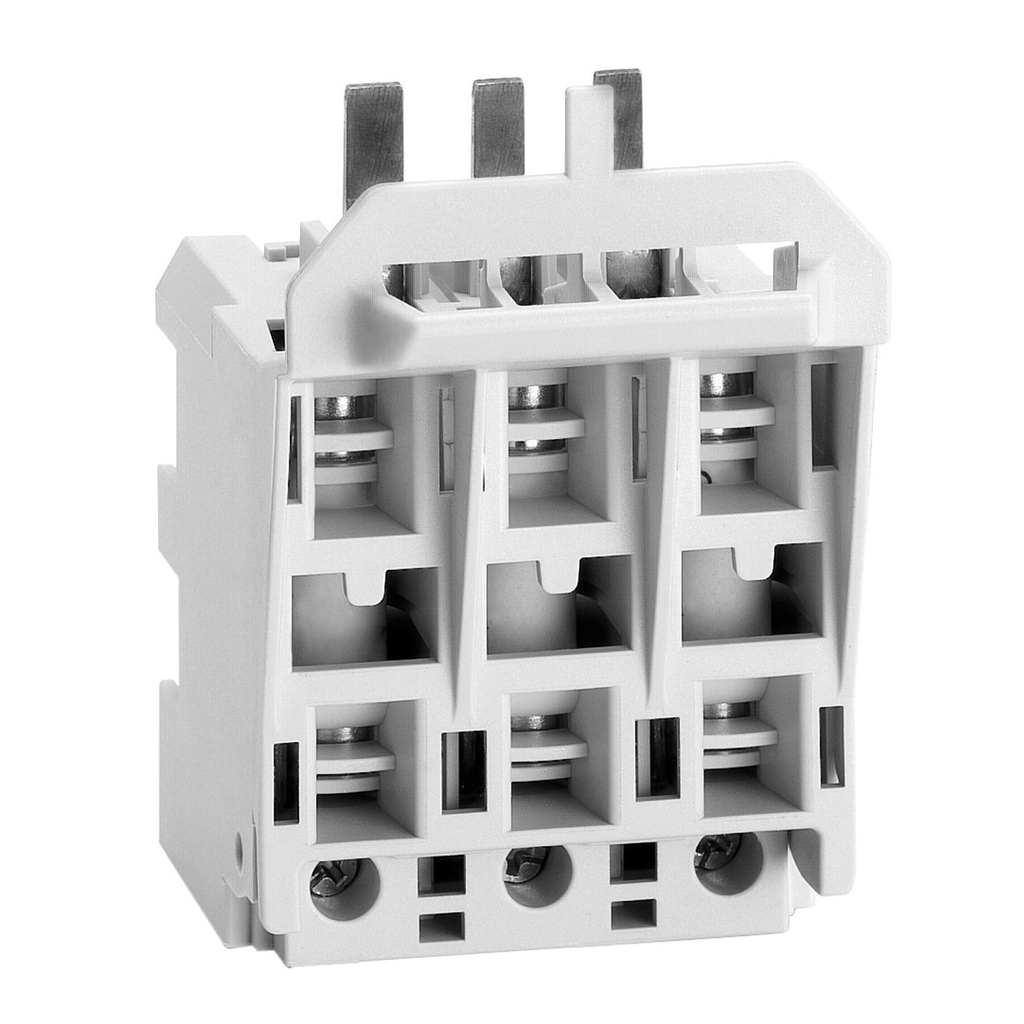

Disconnect switch, TeSys VLS, CC fuse holder, for 3 pole disconnect switch, for up to 25A fuse
These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more. This family of disconnect switches has switches ranging from 16A to 125A. The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated. The 30A, 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated. This fuse holder block is suitable for Class CC fuses. This fuse holder block can be used with a VLS3P016R1, VLS3P025R1 or VLS3P032R1 DIN rail mount disconnect switch. Fuse holder has a UL rating of 30 A at 600VAC 50/60 Hz. This protective terminal cover is 2.96 inches tall, 2.07 inches wide and 3.15 inches deep. The switch weighs 0.30 lbs. This fuse holder is cULus Listed and meets IEC 60947-3 requirements.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | Italy |
|---|---|
| Width | 52.5 mm |
| Height | 75.2 mm |
| Weight | 0.135 kg |
| Fuse Size | CC |
| Network Type | AC |
| Product Or Component Type | fuse holder |
| Product Name | TeSys VARIO LS |
| Range | TeSys |
| Poles Description | 3P |
| Device Short Name | VLSFH |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Compliant |
| Network Frequency | 50/60 Hz |
| Height | 75.2 mm |
| [Ith] Conventional Free Air Thermal Current | 25 A 55 °C |
| Mounting Support | DIN rail |
| [Ui] Rated Insulation Voltage | 690-690 V AC 50/60 Hz |
| Connections - Terminals |
|
| Net Weight | 0.135 kg |
| Width | 52.5 mm |
| Tightening Torque | power circuit 1.8-2 N.m screw clamp terminals |
| Depth | 80.1 mm |
| Product Certifications |
|
| Ambient Air Temperature For Operation | -25-55 °C |
| Standards |
|
| Ip Degree Of Protection | IP20 IEC 60529 |
