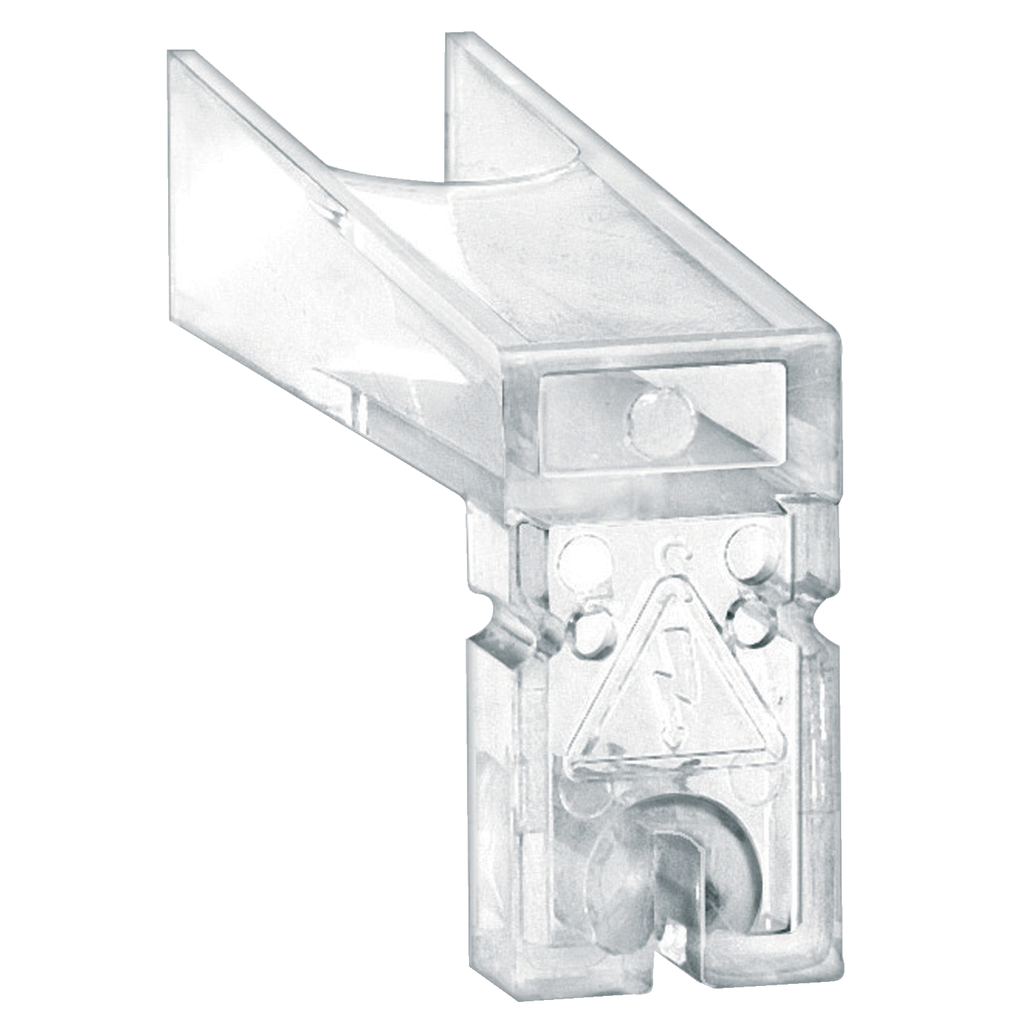

Disconnect switch, Tesys VLS, set of 2 terminal covers, for 4th pole unit terminals, 16A to 40A devices
These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more. This family of disconnect switches has switches ranging from 16A to 125A. The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated. The 30A, 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated. This protective terminal cover is for the 4th pole adder module. This protective cover can be added to VLS1P040R1S, VLS1P040D1S, VLS1P040R1E, VLS1P040D1E, VLS1P063R1E or VLS1P063R1S fourth pole adder module. Each package has two of these terminal protective covers. This protective terminal cover is 1.04 inches tall, 0.47 inches wide and 1.81 inches deep. The switch weighs 0.02 lbs. This protective cover is cULus Listed and meets IEC 60947-3 requirements.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Height | 26.4 mm |
|---|---|
| Fixing Mode | clipped |
| Net Weight | 0.009 kg |
| Width | 12 mm |
| Depth | 46 mm |
| Country of Origin | Italy |
| Width | 12 mm |
| Height | 26.4 mm |
| Weight | 0.009 kg |
| Range Compatibility | TeSys TeSys VARIO LS VLS1P |
| Accessory / Separate Part Category | protection accessory |
| Product Or Component Type | terminal cover |
| Range | TeSys |
| Poles Description | 1P |
| Quantity Per Set | set of 2 |
| Device Short Name | VLSC |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
