VLSA11DS – Disconnect switch, TeSys VLS, auxiliary contact block, 1 normally closed and 1 normally open, door
VLSA11DS

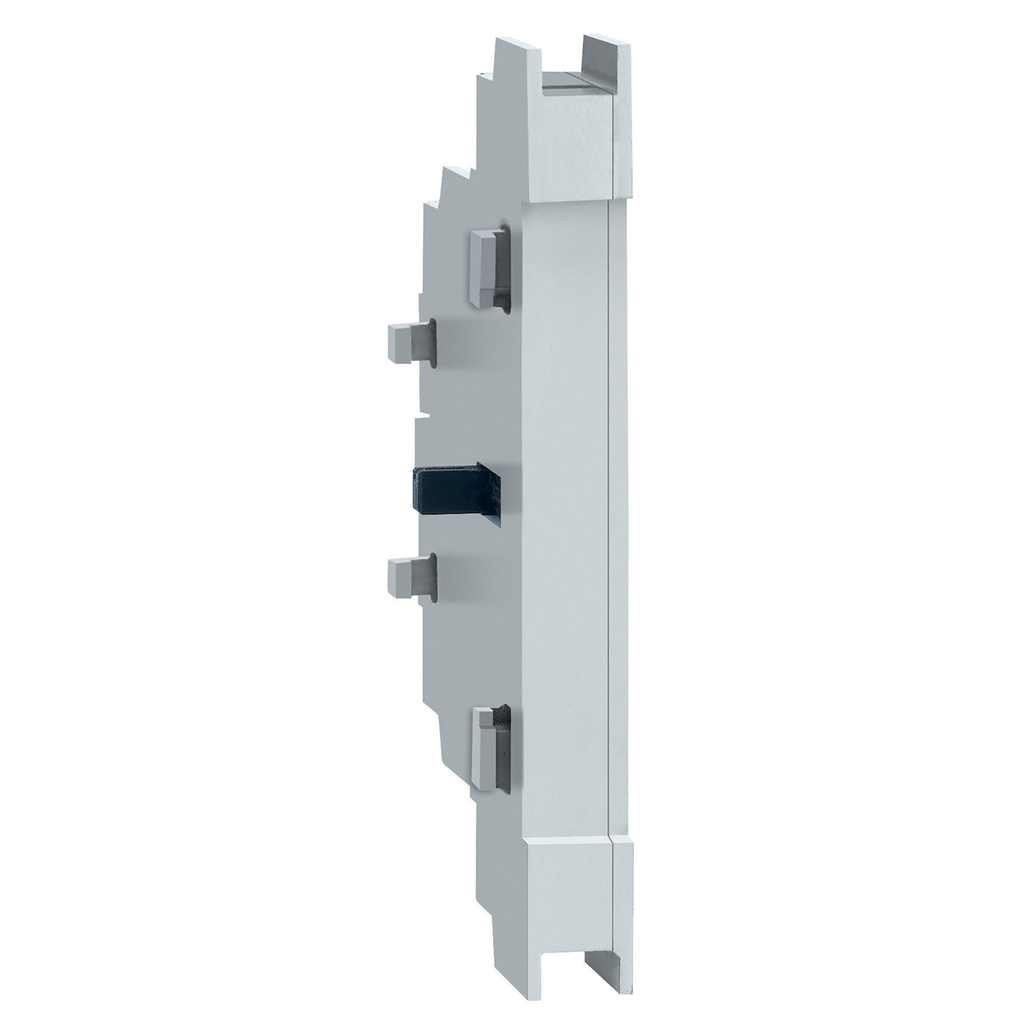

Disconnect switch, TeSys VLS, auxiliary contact block, 1 normally closed and 1 normally open, door

These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more. This family of disconnect switches has switches ranging from 16A to 125A. The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated. The 30A, 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated. This auxiliary contact can be added to a VLS3P016R1, VLS3P025R1, VLS3P032R1, VLS3P040R1 or VLS3P063R1 DIN rail mount switch. This auxiliary contact can also be added to a VLS3P030R2, VLS3P063R2, VLS3P080R2, VLS3P100R2 or VLS3P125R2 DIN rail mount switch. This auxiliary contact can be mounted on the right or left hand side. This auxiliary contact has one normally open early break contact. The operational voltage of this auxiliary contact is 600 V. This auxiliary contact block has A600 and Q600 current ratings. The screw clamp terminals will accept 18 AWG to 6 AWG wire. This auxiliary contact is 2.86 inches tall, 0.33 inches wide and 1.82 inches deep. The switch weighs 0.07 lbs. This auxiliary contact module is cULus Listed and meets IEC 60947-3 requirements.

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Country of Origin United States
Width 8.5 mm
Height 72.6 mm
Weight 0.03 kg
Network Frequency 50/60 Hz
Network Type
  • DC
  • AC
Range Compatibility
  • TeSys TeSys VARIO LS VLSA
  • TeSys TeSys VARIO LS VLS3P
  • TeSys TeSys VARIO LS VLS1P
Product Or Component Type auxiliary contact block
Performance Level high performance
Range TeSys
Contact Operation
  • simultaneous 1 NC
  • simultaneous 1 NO
Contacts Type And Composition 1 NC + 1 NO
Device Short Name VLSA
Product Certifications
  • cULus
  • GL
Ambient Air Temperature For Operation -25-55 °C
Standards
  • UL 508
  • CSA C22.2 No 14
  • IEC 60947-3
  • IEC 60947-5
Ip Degree Of Protection IP20 conforming to IEC 60529
Mechanical Robustness
  • vibrations 2...100 Hz Fc 0.7 g) IEC 60068-2-6
  • shocks 11 ms Ea 15 gn) IEC 60068-2-27
Fire Resistance 850 °C IEC 60695-2-11
Rohs Exemption Information Yes
Mercury Free Yes
Toxic Heavy Metal Free Yes
California Proposition 65 WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc Yes
China Rohs Regulation Pro-active China RoHS declaration (out of China RoHS legal scope)
Eu Rohs Directive Compliant
[Ue] Rated Operational Voltage 690 V AC 50/60 Hz
Height 72.6 mm
Minimum Output Current 10 mA
[Ith] Conventional Free Air Thermal Current 10 A (at 55 °C)
Mounting Support door
[Ithe] Conventional Enclosed Thermal Current 10 A
Minimum Output Voltage 5 V
Net Weight 0.03 kg
[Uimp] Rated Impulse Withstand Voltage 8 kV
Mounting Location
  • right
  • left
Connections - Terminals control circuit screw clamp terminals 2.5-2.5 mm² flexible - without cable end
[Ie] Rated Operational Current
  • 6 A AC-15)24 V AC
  • 6 A AC-15)48 V AC
  • 6 A AC-15)127 V AC
  • 3 A AC-15)240 V AC
  • 3 A DC-13)24 V DC
  • 1.5 A DC-13)48 V DC
  • 0.55 A DC-13)127 V DC
  • 0.27 A DC-13)240 V DC
Color Gray
Width 8.5 mm
Tightening Torque control circuit 0.8-1 N.m screw clamp terminals
Depth 46.2 mm
