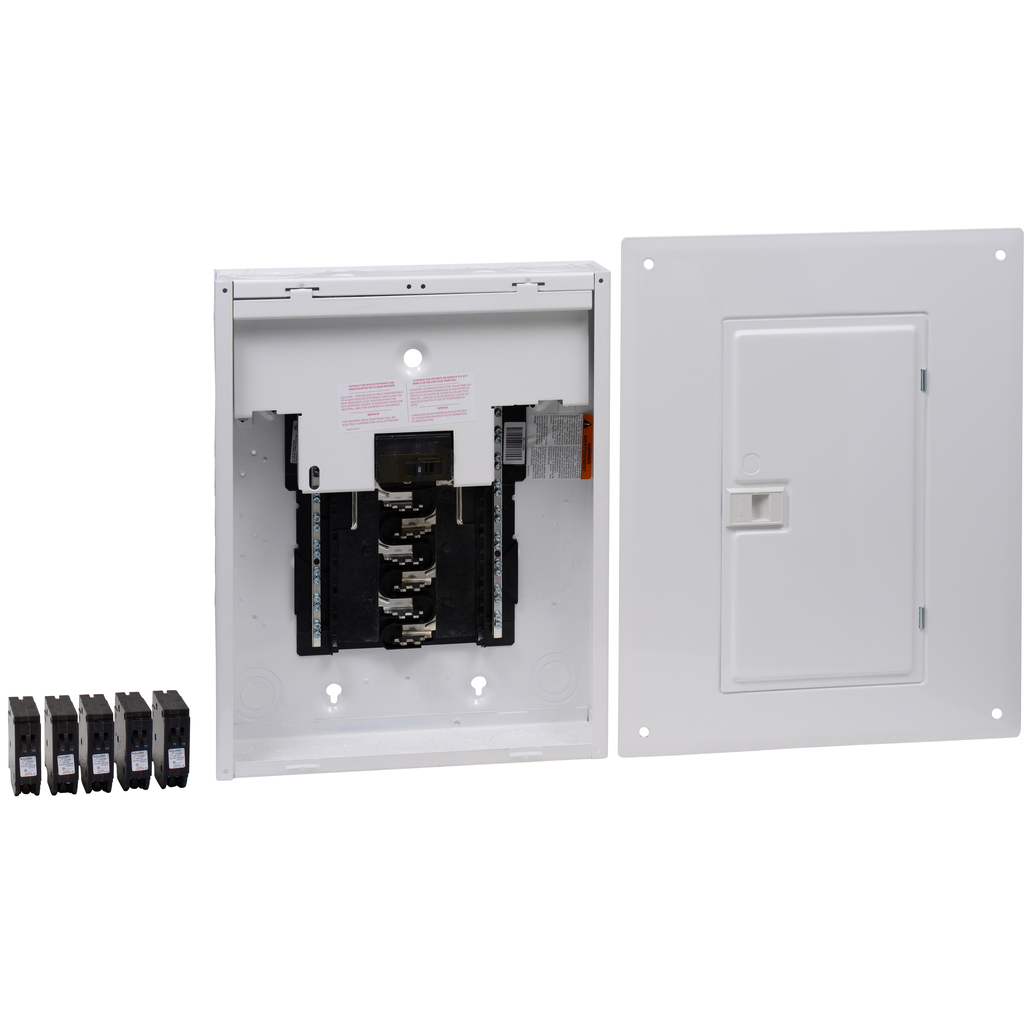

VCP1024
Load center, Homeline, 1 phase, 12 spaces, 24 circuits, 100A convertible main breaker, PoN, NEMA1, gnd bar, combo cover
Specifications
| Ambient Air Temperature For Operation | -5 °C |
|---|---|
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1403002 |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant |
| Height | 455 mm |
| Phase | 1 phase 3 wires |
| [Ue] Rated Operational Voltage | 120/240 V AC |
| Short-Circuit Current | 22 kA |
| Material | tin plated aluminium: busbar |
| Surface Finish | baked enamel Gray |
| Enclosure Material | welded sheet steel |
| Awg Gauge | AWG 6...AWG 2/0 aluminium/copper |
| Width | 362 mm |
| Depth | 95 mm |
| Device Composition | grounding bar included (not installed) |
| Box Number | 6 |
| Country of Origin | United States |
| Width | 362 mm |
| Height | 455 mm |
| Range Of Product | Homeline |
| Provided Equipment |
|
| Product Or Component Type | Load Center |
| Electrical Connection | lugs |
| Number Of Circuits | 24 |
| Number Of Spaces | 12 |
| Cover Type | combination flush/surface cover |
| Nema Degree Of Protection | NEMA 1 indoor enclosure |
| Line Rated Current | 100 A |
| Load Center Type | PoN Convertible Mains (breaker) |
