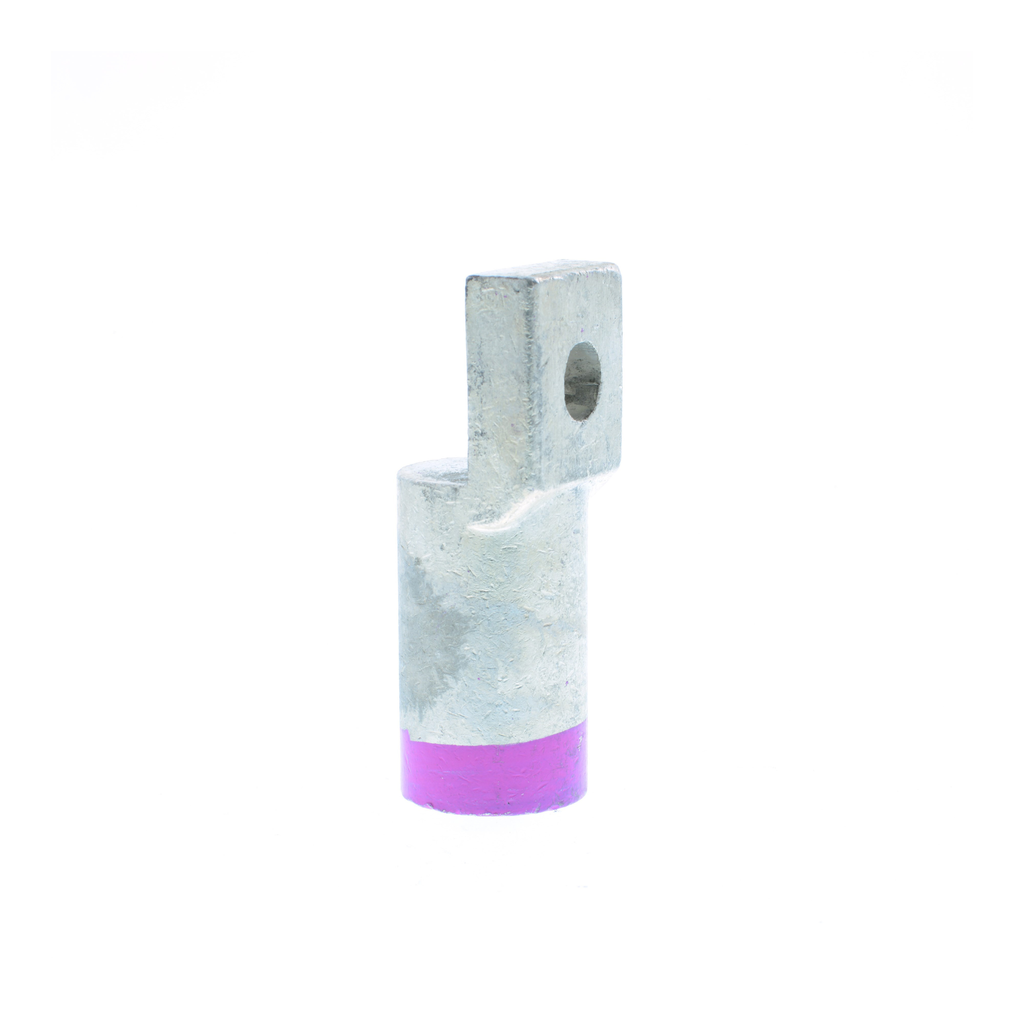

VCELC07512H1
NF Panelboard, crimp lug, 400 A, 400 to 750 kcmil, copper
NQ Panelboards provide a broad range of solutions available from distributor stock to address electrical contractor's need. NQ Panelboards have modular construction to accept field installable accessories and conversion kits. This panelboard accessory is a crimp main lug kit. This 400 A tin plated copper lug will except 400 to 750 kcmil copper wire. Kit is UL listed and CSA certified by UL.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications | cULus |
|---|---|
| Warranty | 18 months |
| Eu Rohs Directive | Under investigation |
| Line Rated Current | 400-400 A |
| Height | 3.65 in |
| Product Destination | panelboard |
| Awg Gauge | 400...750 kcmil copper |
| Width | 1.30 in |
| Depth | 1.36 in |
| Material | copper |
| Net Weight | 1.91 kg |
| Country of Origin | United States |
| Width | 1.30 in |
| Height | 3.65 in |
| Weight | 1.91 kg |
| Product Or Component Type | lug |
Documents
- NF/NFOM Panelboards Installation Instructions and User Guide (80043-741) - 80043-741-03 (pdf)
- NQ, NF, I-Line and QMB Panelboard Products - NQ+NF+and+I+line+and+QMB+Panels+final+-English+ (pdf)
- Spec Sheet
- Square D QMB Fusible Panelboards Catalog - 4620CT9601 (pdf)
- Square D NQ Circuit Breaker Panelboards Catalog - 1640CT0801 (pdf)
