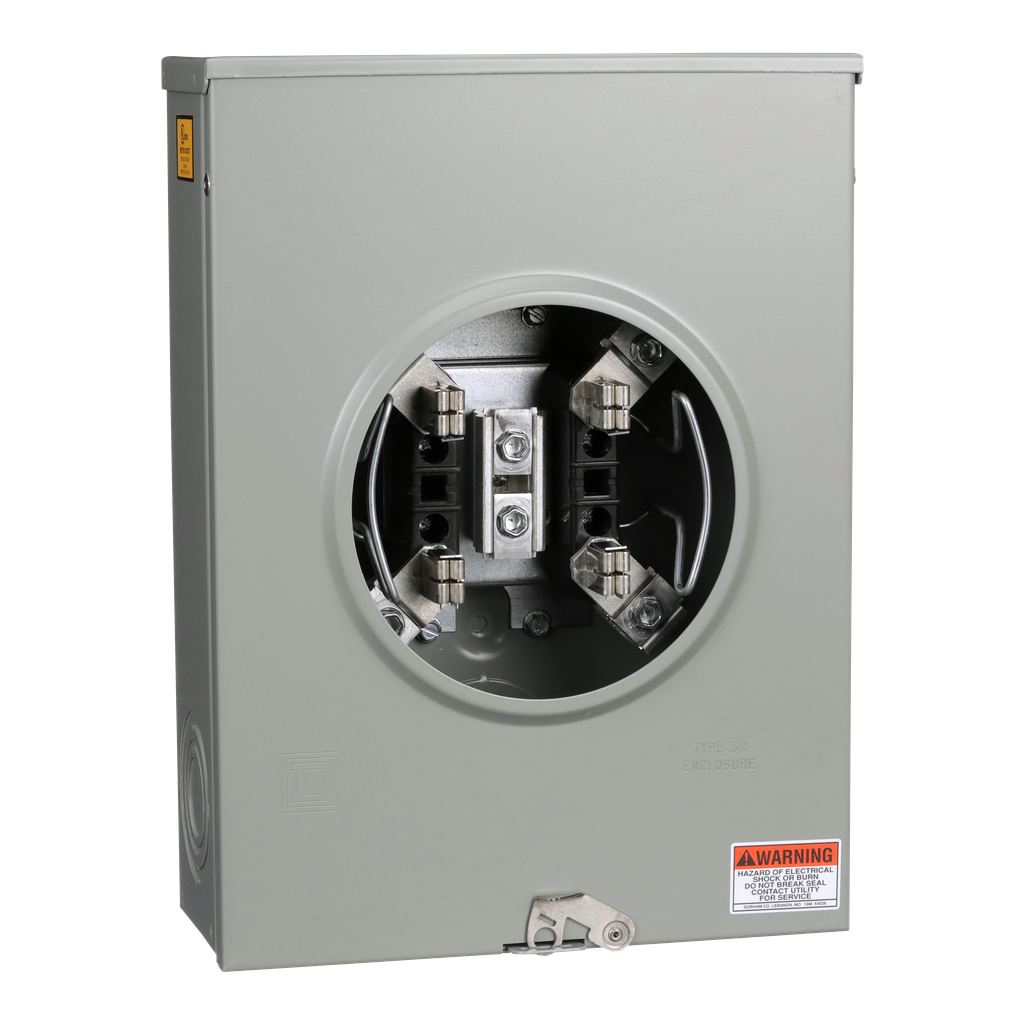

UTRS213A
Meter socket, ringless, 1 phase, 3 wire, 200A, 4 jaws, 600VAC max, solid top, no bypass, no jaw release
Individual Meter Sockets are available for single or three phase with a 600 VAC maximum. They can be configured using a horn or lever bypass with the minimum standard 10 kA short circuit current rating, unless approved for higher ratings by the utility provider. As a ringless meter socket, it has four jaws and a bonded neutral with no bypass and jaw release. This unit can be fed cabeling from an overhead or underground service.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications | UL Listed |
|---|---|
| Nema Degree Of Protection | NEMA 3R |
| Warranty | 18 months |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel (Metallic), which is known to the State of California to cause cancer, and Toluene, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Eu Rohs Directive | Under investigation |
| Service Feed Location | UG |
| Height | 15.00 in |
| Meter Socket Rated Current | 200 A |
| [Ue] Rated Operational Voltage | 600 V AC |
| Bypass Type | no bypass |
| Electrical Connection | lugs 0.5" hex |
| Phase | 1 phase |
| Enclosure Material | steel |
| Wiring Configuration | 3-wire |
| Width | 11.00 in |
| Depth | 4.38 in |
| Number Of Jaws | 4 without jaw release |
| Box Number | 5R |
| Country of Origin | United States |
| Width | 11.00 in |
| Height | 15.00 in |
| Product Or Component Type | Meter Socket |
| Hub Type | solid top |
| Meter Socket Type | ringless |
