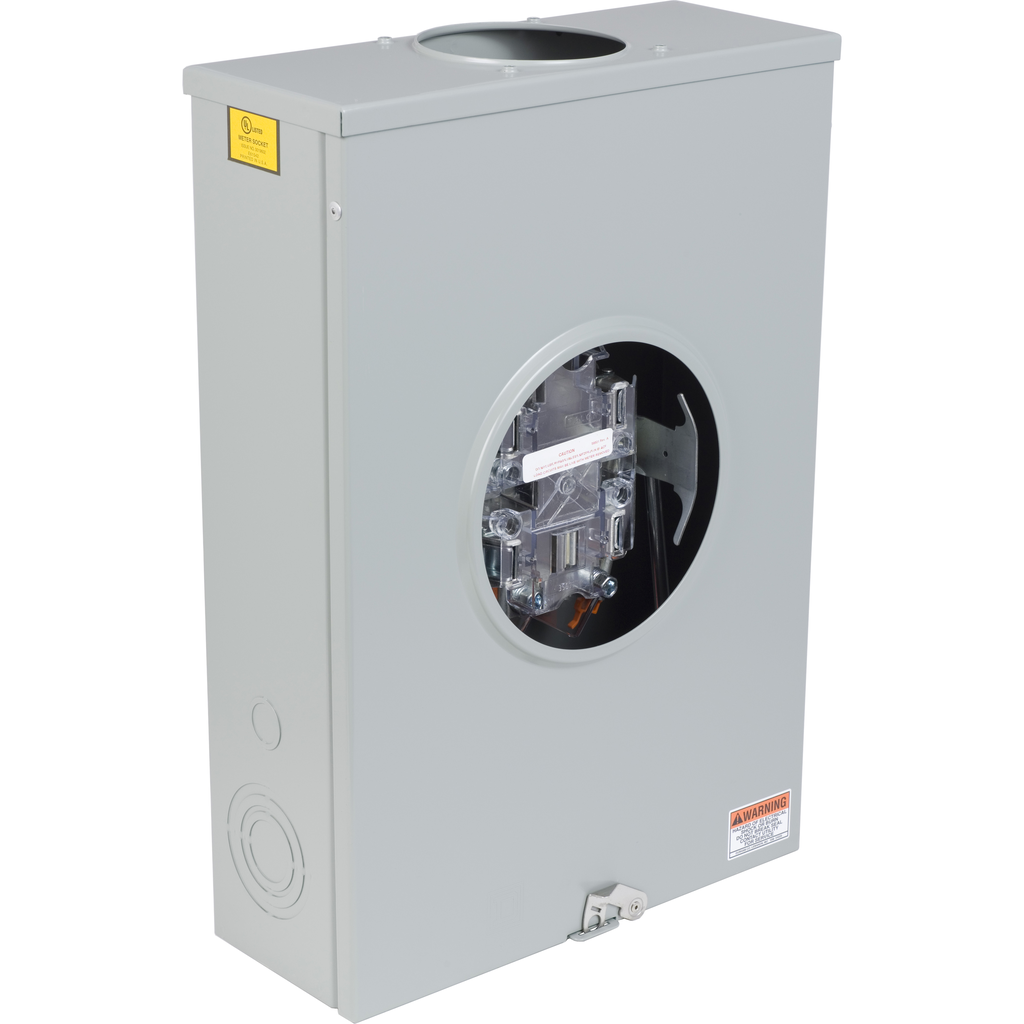

UTH5213T
Meter socket, ringless, 1 phase, 3 wire, 5 jaws, Series A-L, lever bypass, jaw release
Square D™ individual meter sockets are power distribution panels used in single phase or 3 phase residential applications. These meter sockets are NEMA 3R enclosures that are supplied with ground lugs and top endwall hub opening. This requires the use of a bolt on hub or closing plate. This product is a ringless type with lever bypass, and underground or overhead service feed. It also is rated at 200A with 5 jaws. Unit has 10,000 RMS Symmetrical Amperes short circuit current rating. They are UL Listed.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications | UL Listed |
|---|---|
| Nema Degree Of Protection | NEMA 3R |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1407020EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel (Metallic), which is known to the State of California to cause cancer, and Toluene, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant with Exemptions |
| Service Feed Location |
|
| Meter Socket Rated Current | 200 A |
| [Ue] Rated Operational Voltage | 600 V AC |
| Bypass Type | lever bypass |
| Electrical Connection | lugs 0.5" hex |
| Phase | 1 phase |
| Enclosure Material | steel |
| Wiring Configuration | 3-wire |
| Number Of Jaws | 5 with jaw release |
| Box Number | 9R |
| Country of Origin | United States |
| Product Or Component Type | Meter Socket |
| Hub Type | A-L ACPL closing plate |
| Meter Socket Type | ringless |
