UT6R2392TU

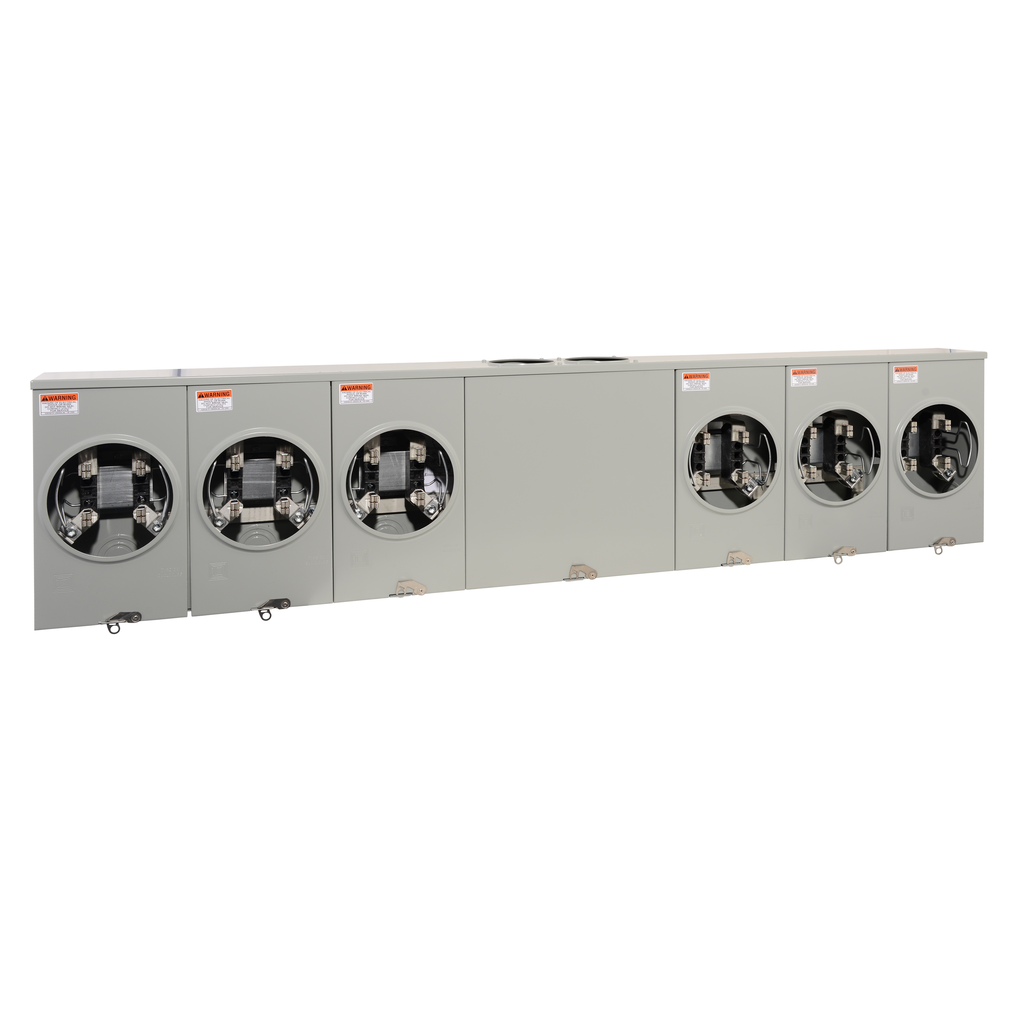

Meter socket, horizontal ganged, ringless socket, 620A, 6 position, 4 jaws, 600 VAC max, overhead/underground, no bypass
Square D™ Horizontal Ganged Meter Sockets are single phase power distribution panels used in residential applications. These meter sockets are NEMA 3R enclosures that are supplied with ground lugs and top endwall hub opening. This requires the use of a bolt on hub or closing plate. Horizontal Ganged Meter Sockets are 600 VAC and main lugs only. This product is a ringless type with no bypass, underground or overhead service feed, and has 6 positions. It also is rated at 200A with 4 jaws. When using the interior option, this product comes with main lugs rated at 620A. UL Listed rated.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Certifications | UL Listed |
|---|---|
| Service Feed Location |
|
| Bypass Type | no bypass |
| Hub Type | A-L ACPL closing plate |
| Nema Degree Of Protection | NEMA 3R |
| Meter Socket Type | ringless |
| Wiring Configuration | 3-wire |
| Awg Gauge |
|
| Number Of Jaws | 4 without jaw release |
| Box Number | 20R |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1407020EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel (Metallic), which is known to the State of California to cause cancer, and Toluene, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | N/A |
| Eu Rohs Directive | Compliant with Exemptions |
| Country of Origin | United States |
| [Ue] Rated Operational Voltage | 600 V AC |
| Number Of Meter Sockets | 6 |
| Product Or Component Type | Meter Socket |
| Phase | 1 phase |
| Line Rated Current | 620 A |
| Warranty | 18 months |
