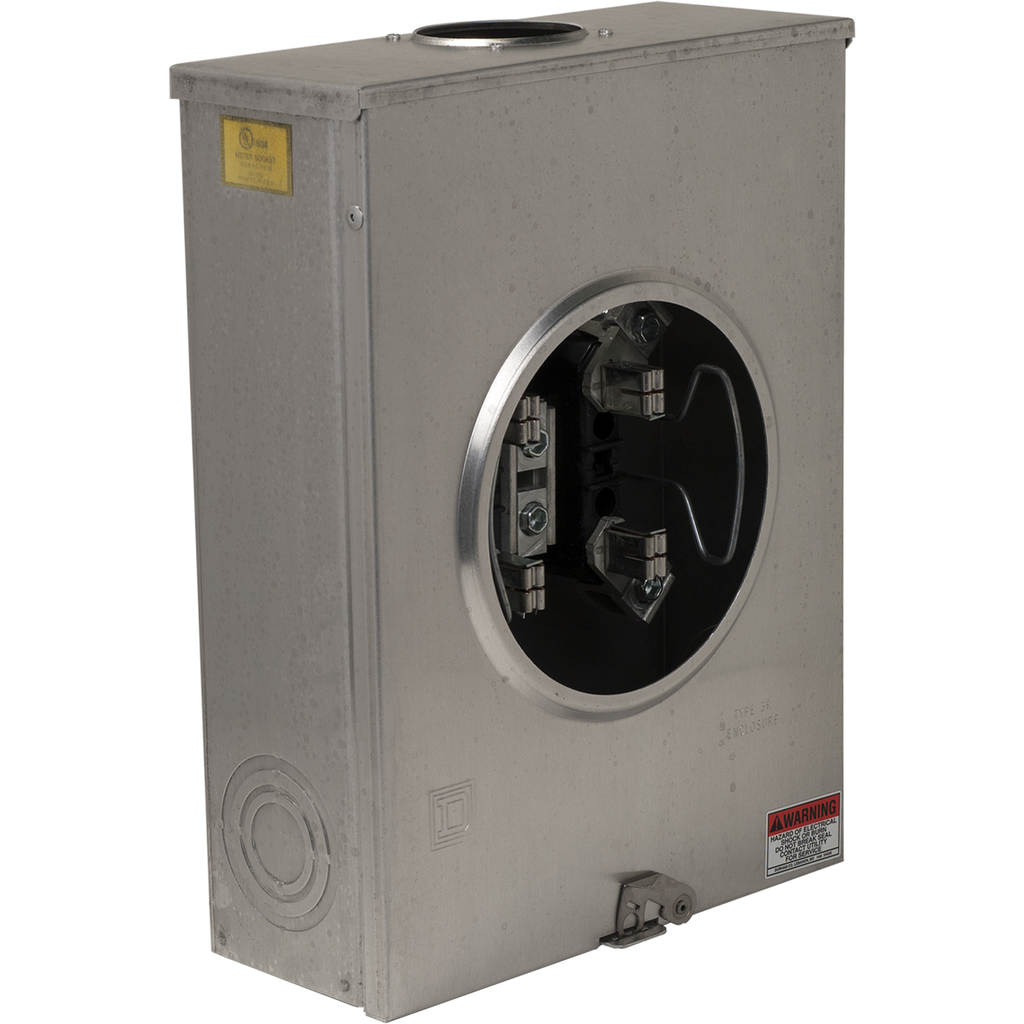

UATRS213B
Meter socket, ringless, 1 phase, 3 wire, 4 jaws, Series A, no bypass, no jaw release
Specifications
| Product Certifications | UL Listed |
|---|---|
| Nema Degree Of Protection | NEMA 3R |
| Warranty | 18 months |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel (Metallic), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
| Eu Rohs Directive | Under investigation |
| Service Feed Location |
|
| Height | 15.00 in |
| Meter Socket Rated Current | 200 A |
| [Ue] Rated Operational Voltage | 600 V AC |
| Bypass Type | no bypass |
| Electrical Connection | lugs 0.5" hex |
| Phase | 1 phase |
| Enclosure Material | Aluminum |
| Wiring Configuration | 3-wire |
| Width | 11.00 in |
| Depth | 4.38 in |
| Number Of Jaws | 4 without jaw release |
| Box Number | 5R |
| Country of Origin | United States |
| Width | 11.00 in |
| Height | 15.00 in |
| Product Or Component Type | Meter Socket |
| Hub Type | A ACPA closing plate |
| Meter Socket Type | ringless |
