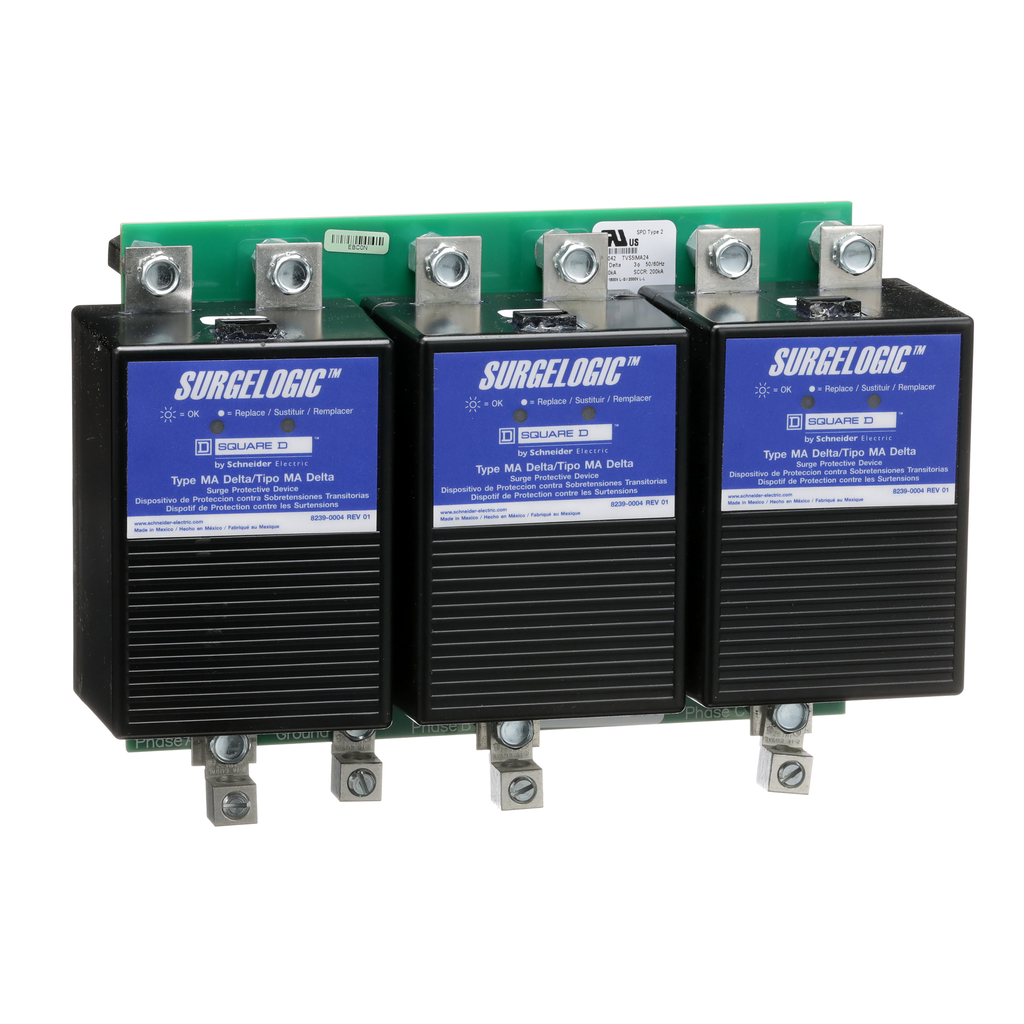

TVS5IMA24O
OEM assembler kit, Surgelogic, 240kA, 480 VAC delta, 3 phase, 3 wire, SPD type 2
Square D™ load center surge protective devices, TVS5IMA24O, are easy to install plug-in units that install as quickly as a standard circuit breaker. The surge suppressors use two pole spaces in a QO™ or Homeline™ load center, or NQ panelboard. US and Canadian UL® Listed as Type 2 SPD to the UL 1449 standard. Complies with requirements of NEC® Article 285, CSA 233.1-87, and CSA C22.2 No. 8- M1986 as appropriate.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Standards |
|
|---|---|
| Nema Degree Of Protection | NEMA 2 |
| Warranty | 18 months |
| Rohs Exemption Information | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Compliant with Exemptions |
| Height | 155.7 mm |
| Connections - Terminals | lugs AWG 12...AWG 2 aluminium/copper 4 N.m |
| Provided Equipment |
|
| Surge Current | 240 kA per phase |
| Nominal Discharge Current | 20 kA |
| Phase | 3 phase |
| Short-Circuit Protection | 200 kA |
| [Uc] Maximum Continuous Operating Voltage | 550 V |
| Wiring Configuration | 3-wire |
| Width | 250.4 mm |
| Depth | 92.7 mm |
| [Ue] Rated Operational Voltage | 480 V delta AC |
| Device Mounting | surface |
| Country of Origin | United States |
| Width | 250.4 mm |
| Height | 155.7 mm |
| Range Of Product | Surgelogic |
| Product Or Component Type | surge protection device |
| Device Short Name | IMA |
