TVS4HWA10X

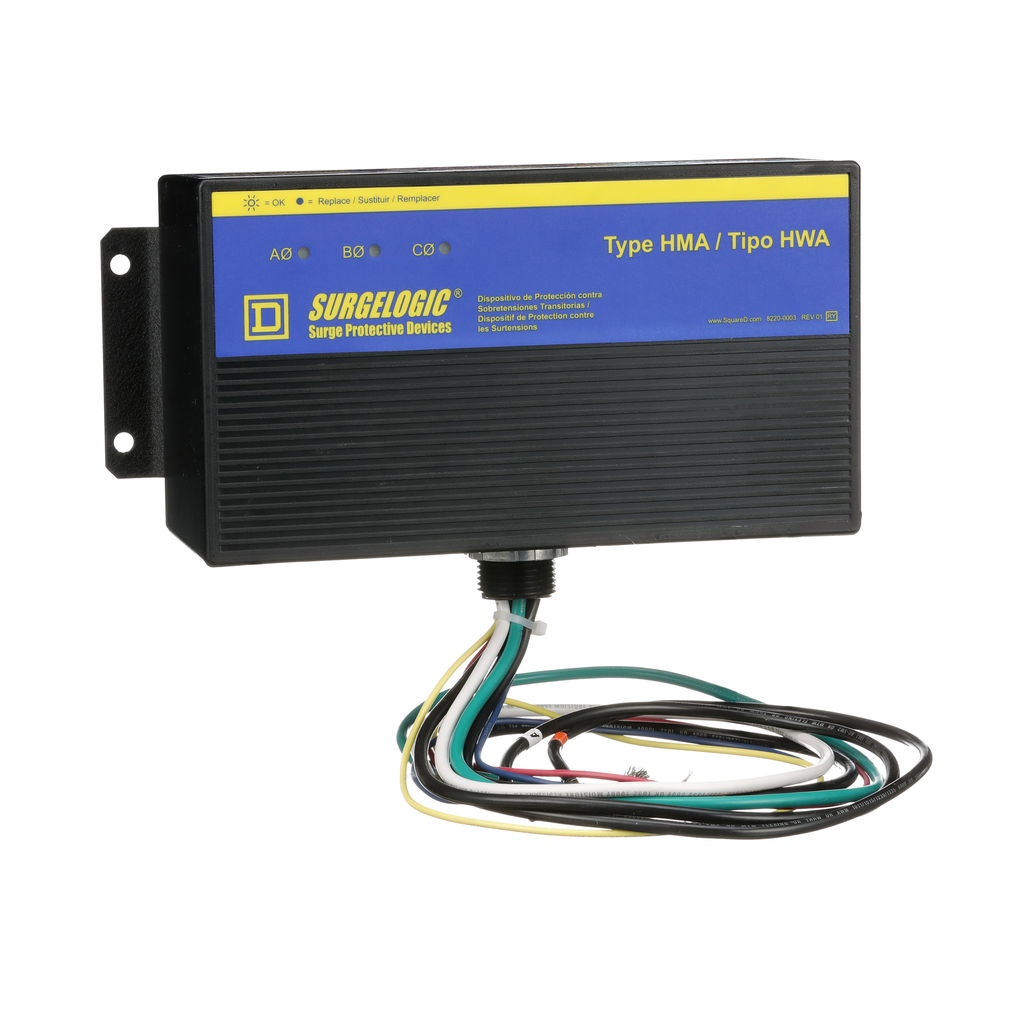

Surge protection device, Surgelogic, HWA, 100kA, 480Y/277 VAC, 3 phase, 4 wire, NEMA 4X
The HWA Series are surge suppressors and noise filters in a compact package. HWA surge protective devices are nipple mounted, parallel connected suppressors with different voltage configurations, including delta. TVS4HWA10X is three phase, four wire, 480Y/277VAC with an 100kA surge current. The surge suppressors use three pole spaces in a QO or Homeline load center, or NQ panelboard. The devices are NEMA 4X rated, allowing either indoor or outdoor installation. The devices comply with UL and CSA standards.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Ambient Air Temperature For Operation | 65-65 °C |
|---|---|
| Standards |
|
| Nema Degree Of Protection | NEMA 4X |
| Enclosure Material | Black Plastic |
| Warranty | 10 years |
| Rohs Exemption Information | Yes |
| Environmental Disclosure | ENVPEP2002011EN |
| Sustainable Offer Status | Green Premium product |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Circularity Profile | ENVEOLI2002011EN |
| Eu Rohs Directive | Compliant with Exemptions |
| Height | 122 mm |
| Connections - Terminals |
|
| Cable Length | 33.6 in |
| Surge Current | 100 kA per phase |
| Nominal Discharge Current | 20 kA |
| Phase | 3 phase |
| Mounting Location | bottom of enclosure |
| Local Signalling |
|
| Short-Circuit Protection | 200 kA |
| [Uc] Maximum Continuous Operating Voltage | 320 V |
| Width | 219 mm |
| Wiring Configuration | 4-wire |
| Depth | 79 mm |
| Number Of Poles | 2 |
| [Ue] Rated Operational Voltage | 480Y/277 V AC |
| Device Mounting |
|
| Country of Origin | Mexico |
| Length | 33.6 in |
| Width | 219 mm |
| Height | 122 mm |
| Range Of Product | Surgelogic |
| Product Or Component Type | surge protection device |
| Device Short Name | HWA |
