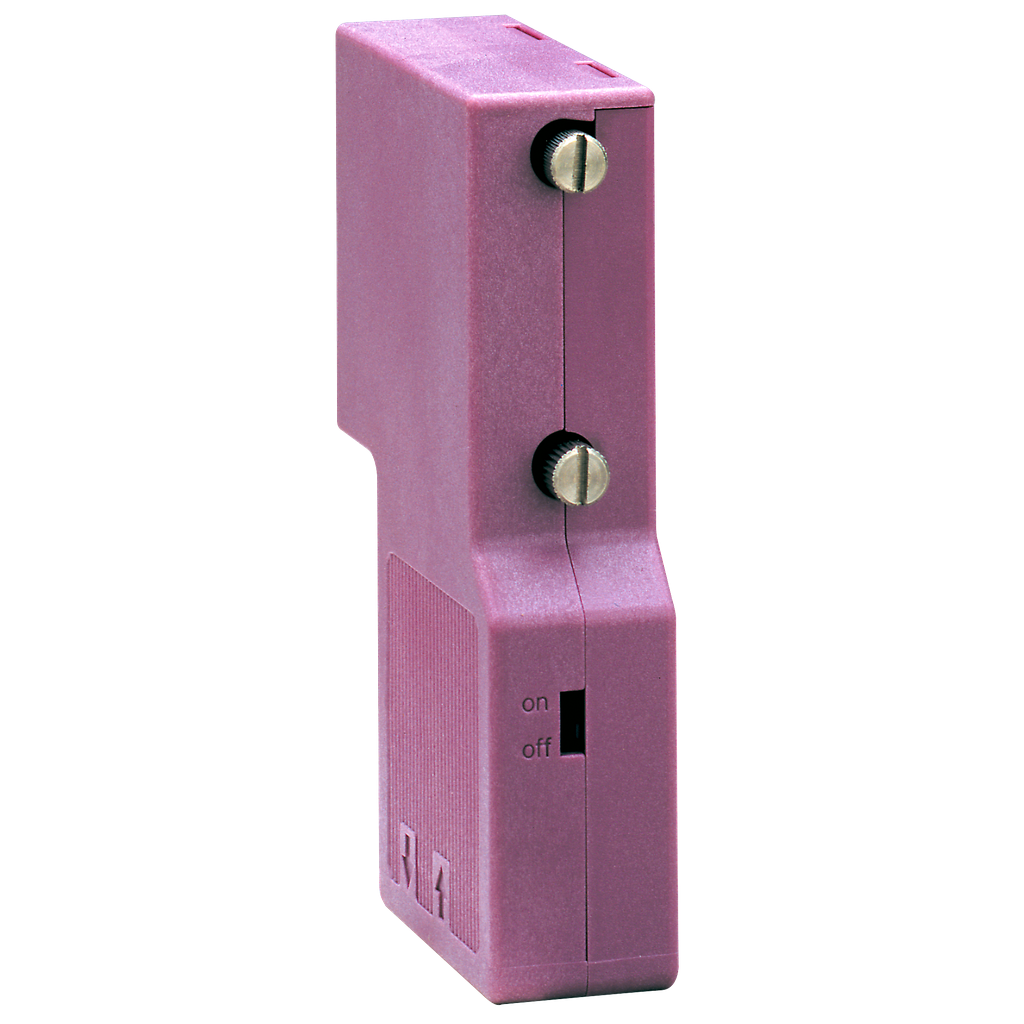

TSXCANKCDF90T
female connector, Modicon X80, CANopen SUB-D9, bended at 90°, IP20
This product is part of the CANopen range, an offer of connection components. This CANopen bus female connector is a 9-way SUB-D connector, an accessory of variable speed drive. It is a right angle (90°) connector. It is an IP20 rated product. It weighs 0.046kg. It is suitable for used in water wastewater, chemical, pharmaceutical, transportation, food and beverage applications.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Country of Origin | Germany |
|---|---|
| Weight | 0.046 kg |
| Range Of Product | CANopen |
| Accessory / Separate Part Category | connection accessories |
| Bus Type | CANopen |
| Accessory / Separate Part Type | connector with line terminator |
| Ip Degree Of Protection | IP20 |
| Accessory / Separate Part Destination | CANopen bus |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Net Weight | 0.046 kg |
| Electrical Connection | 1 female connector SUB-D 9 elbowed |
| Warranty | 18 months |
