TRV00128

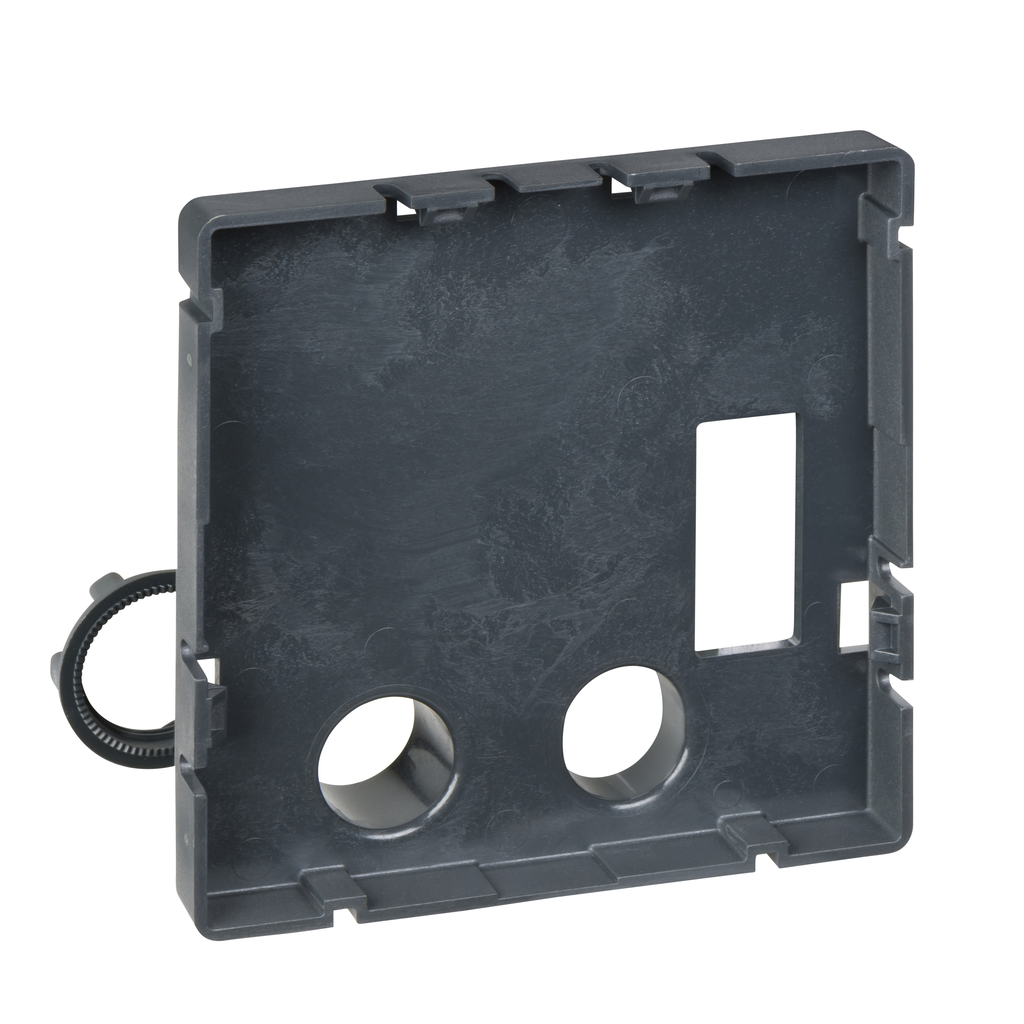

Mounting support for FDM front display module, Enerlin'X, hole diameter 22mm, spare part
Specifications
| Country of Origin | France |
|---|---|
| Width | 64 mm |
| Height | 64 mm |
| Range Compatibility |
|
| Accessory / Separate Part Category | mounting accessory |
| Product Or Component Type | display mounting support |
| Device Short Name | FDM mounting accessory (diameter 22 mm) |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2305023EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | ENVEOLI2305023EN |
| Eu Rohs Directive | Compliant |
| Height | 64 mm |
| Accessory / Separate Part Category |
|
| Mounting Mode | by screws |
| Width | 64 mm |
| Warranty | 18 months |
Documents
- STRV00121 Front Display Module (FDM) for PowerPacT H-, J-, and L-Frame Circuit Breakers - Installation Instructions - 48940-327-01_01 (pdf)
- ULP (Universal Logic Plug) System User Guide - 48940-329_Tri (pdf)
- Low Voltage Circuit Breakers for OEM Applications Brochure - 0106BR9806 (pdf)
- Spec Sheet
- PowerPacT H-, J-, and L-Frame Circuit Breakers Catalog - 0611CT1001 (pdf)
- PowerPacT M-, P-, and R-frame and NS Circuit Breakers Catalog - 0612CT0101 (pdf)
- Masterpact UR 50-60 Catalog - LVPED208004EN (pdf)
- Catalogue Compact NSX & NSXm circuit breakers and switch disconnectors from 16 to 630A up to 690V - LVPED217032EN (pdf)
- ComPacT NSX & NSXm Circuit Breakers and Switch Disconnectors from 16 to 630A up to 690V - May 2024 - LVPED221001EN (pdf)
- Circuit Breakers: Section 7 - Digest 179 (2024) - Circuit-Breakers-Digest-Catalog-0100CT2401-SEC-07 (pdf)
- Catalogue COMPACT NS 630b to 3200A Circuit breakers and switch-disconnectors - LVPED221008EN (pdf)
