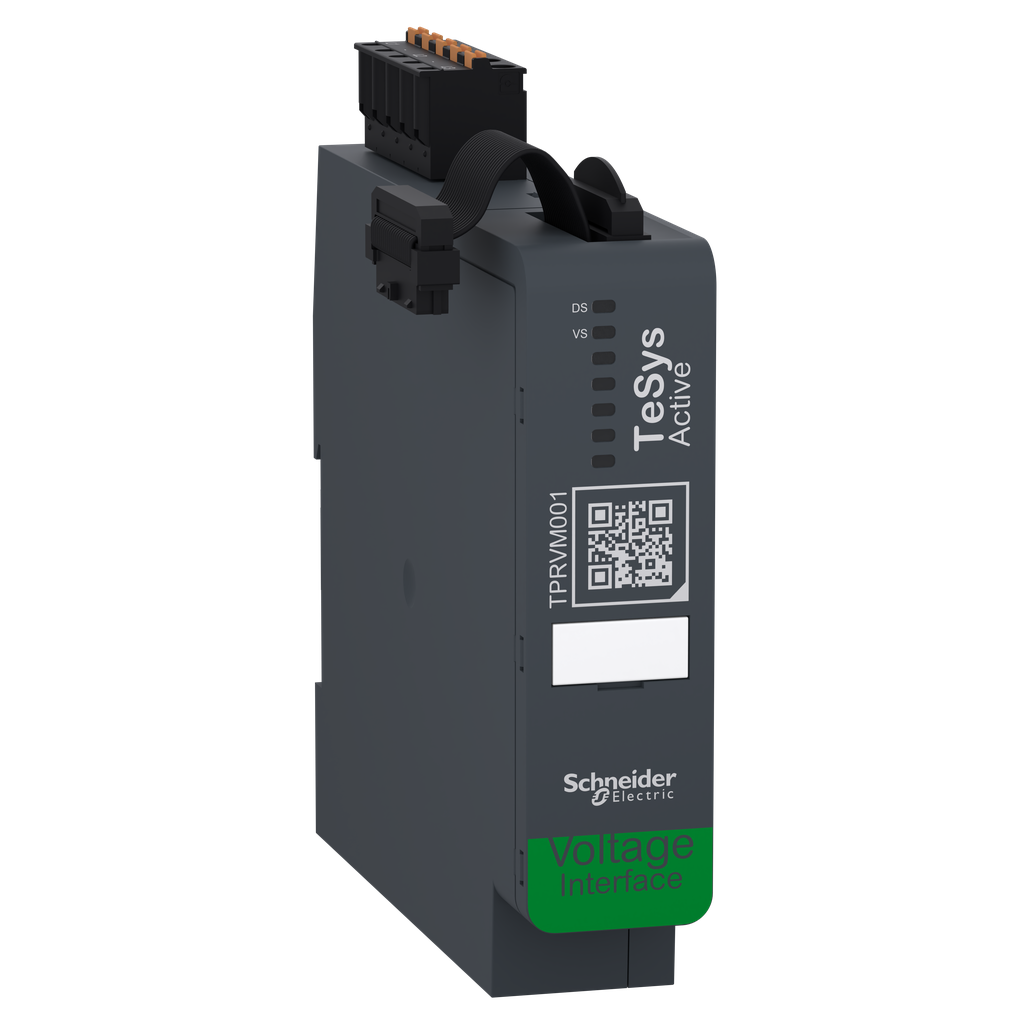

TPRVM001 – Voltage interface module, TeSys island, 690VAC 47-63 Hz, Isolated switching input for safe stop
TPRVM001
Voltage interface module, TeSys island, 690VAC 47-63 Hz, Isolated switching input for safe stop

TeSys island voltage interface module, 100-690V / 47-63Hz. Connected to a TPRBC bus coupler it measures the mains voltages powering the loads. It provides the voltage values for power and energy calculation, calculates the RMS values and phase sequence. Voltage measurement range 100-690 V +/- 5 %, phase frequency measurement range 47-63 Hz +/- 1 Hz in single phase or 3-phase systems. Mounting on DIN rail together with the other modules of the TeSys island configuration. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Ambient Air Temperature For Operation -10-60 °C
Shock Resistance 15 gn 11 ms) IEC 60068-2-27
Vibration Resistance
  • 1.5 mm peak to peak 3-13 Hz) IEC 60068-2-6
  • 1 gn 13-200 Hz) IEC 60068-2-6
Electromagnetic Compatibility
  • electrostatic discharge, level 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2
  • radiated RF fields, level 3, 10 V/m, conforming to EN/IEC 61000-4-3
  • line voltage circuit: fast transients immunity test, level 3, 2 kV, conforming to EN/IEC 61000-4-4
  • line voltage circuit: surge immunity test (common mode), level 3, 2 kV, conforming to EN/IEC 61000-4-5
Pollution Degree 2
Ambient Air Temperature For Storage -25-70 °C
Protective Treatment TC
Relative Humidity 5-95 %
Ip Degree Of Protection IP20
Operating Altitude 0...6561.68 ft (0...2000 m) without derating
Fire Resistance 960 °C UL 94
Warranty 18 months
Rohs Exemption Information Yes
Mercury Free Yes
Environmental Disclosure ENVPEP1904009EN
Sustainable Offer Status Green Premium product
California Proposition 65 WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Weee The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile ENVEOLI1904009EN
Eu Rohs Directive Compliant with Exemptions
Halogen Content Performance Halogen free plastic parts product
Mounting Mode horizontal and vertical 35 mm symmetrical rail)
Current Consumption 2 mA
[Us] Rated Supply Voltage 24 V DC supplied by the bus coupler
Height 118 mm
Product Certifications
  • UL
  • CSA
  • EAC (pending)
Standards
  • IEC 61010-2-201
  • UL 61010-2-201
  • CSA C22.2 No 61010-2-201
Connections - Terminals
  • measuring input removable spring terminal block 3 0.2-2.5 mm² AWG 24...AWG 14)rigid
  • measuring input removable spring terminal block 3 0.2-2.5 mm² AWG 24...AWG 14)flexible without cable end
  • measuring input removable spring terminal block 3 0.25-2.5 mm² AWG 22...AWG 14)flexible with cable end
Power Dissipation In W 0.5 W maximum
Net Weight 0.159 kg
Width 25 mm
Depth 114 mm
Country of Origin United States
Width 25 mm
Height 118 mm
Weight 0.159 kg
[Ue] Rated Operational Voltage 690 V AC 47...63 Hz
Product Or Component Type voltage interface module
Product Name TeSys island
Range TeSys
Device Presentation
  • monitoring of the mains voltage powering the island
  • reporting of the voltage to the bus coupler to enable power & energy monitoring
Metering Type
  • phase voltage 100...690 V
  • phase frequency 47...63 Hz
  • phase sequence
Measurement Accuracy
  • voltage +/- 5 %,
  • frequency +/- 1 Hz,
Product Compatibility TPRBC bus coupler
Local Signalling
  • for DS (device status) 1 LED (green/red)
  • for VS (voltage status) 1 LED (green/red)
Function Of Module
  • monitoring of voltages in single phase systems L-N or L-L
  • monitoring of voltages in 3-phase systems without neutral N connection
  • calculation of RMS phase voltages, voltage phase sequence, fundamental frequency
  • identification of dip and swell events level and duration
Overvoltage Category III
[Uimp] Rated Impulse Withstand Voltage 6 kV IEC 61010-1
[Ui] Rated Insulation Voltage 690 V IEC 61010-1
Device Short Name TPRVM
