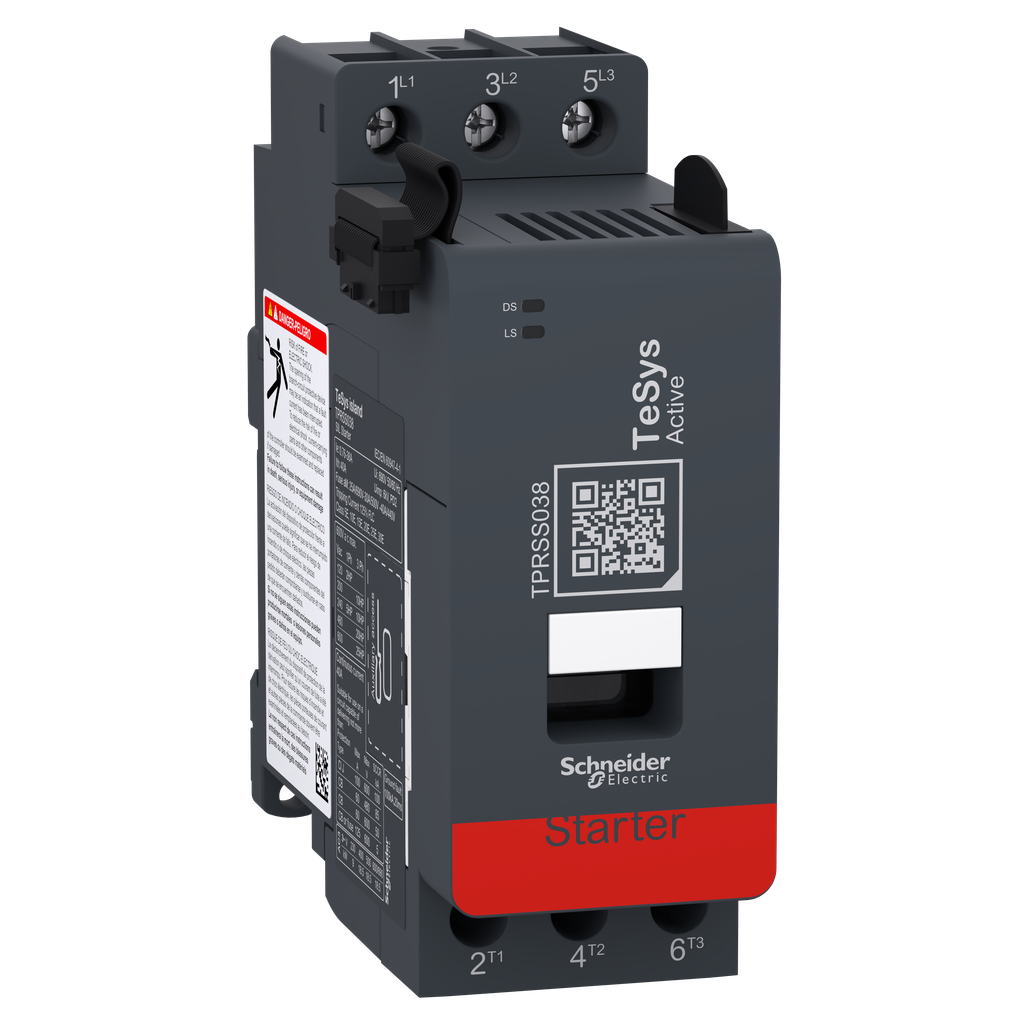

TPRSS038 - SIL motor starter, TeSys island, 40A at AC-1, 38A at AC-3, 18.5kW, 20hp, DOL type

TPRSS038

SIL motor starter, TeSys island, 40A at AC-1, 38A at AC-3, 18.5kW, 20hp, DOL type

TeSys island direct SIL starter, 3 poles, 38A/690V. Connected to a TPRBC bus coupler it controls, protects and monitors loads up to 38A and motors up to 18,5kW@400V / 20hp@480V. In association with a TPRSM001 module and an external safety device, it can be used for safety related systems conforming to IEC 61508. It provides motor protection functions including thermal overload (setting 0.76-38A, tripping class 5-30), phase loss, phase unbalance and reversal, long start (stall), locked rotor (jam), rapid cycle lockout, ground current detection. Monitoring of the load includes max/average voltages and currents, number of switching cycles, number of faults, active and reactive power/energy when associated to a TPRVM001 voltage module. Mounting on DIN rail together with the other modules of the TeSys island configuration. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Ambient Air Temperature For Operation	-10-50 °C without derating 50-60 °C with current derating
Shock Resistance	15 gn 11 ms) IEC 60068-2-27
Vibration Resistance	1.5 mm peak to peak 3-13 Hz) IEC 60068-2-6 1 gn 13-200 Hz) IEC 60068-2-6
Electromagnetic Compatibility	electrostatic discharge immunity test, level 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2 radiated RF field immunity test, level 3, 10 V/m, conforming to EN/IEC 61000-4-3 fast transient immunity test, level 4, 4 kV, conforming to EN/IEC 61000-4-4 surge immunity test (differential mode), level 3, 2 kV, conforming to EN/IEC 61000-4-5 surge immunity test (common mode), level 4, 4 kV, conforming to EN/IEC 61000-4-5 conducted RF disturbance immunity test, 20 V, conforming to EN/IEC 61000-4-6
Pollution Degree	2
Ambient Air Temperature For Storage	-25-70 °C
Protective Treatment	TC
Relative Humidity	5-95 %
Ip Degree Of Protection	IP20
Operating Altitude	0...6561.68 ft (0...2000 m) without derating
Fire Resistance	960 °C UL 94 850 °C IEC 60695-2-1 650 °C IEC 60695-2-12
Warranty	18 months
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1904009EN
Sustainable Offer Status	Green Premium product
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile	ENVEOLI1904009EN
Eu Rohs Directive	Compliant with Exemptions
Halogen Content Performance	Halogen free plastic parts product
Mounting Mode	horizontal and vertical 35 mm symmetrical DIN rail)
Height	121 mm
Product Certifications	CSA EAC UL CCC
Safety Reliability Level	B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Standards	EN/IEC 60947-1 EN/IEC 60947-4-1 UL 60947-4-1 CSA C22.2 No 60947-4-1
Connections - Terminals	screw-clamp terminals 1 1.5-10 mm² AWG 16...AWG 8)rigid screw-clamp terminals 2 1.5-10 mm² AWG 16...AWG 8)rigid screw-clamp terminals 1 2.5-10 mm² AWG 14...AWG 8)flexible without cable end screw-clamp terminals 2 2.5-10 mm² AWG 14...AWG 8)flexible without cable end screw-clamp terminals 1 1.5-10 mm² AWG 16...AWG 10)flexible with cable end screw-clamp terminals 2 1.5-6 mm² AWG 16...AWG 10)flexible with cable end
Net Weight	0.718 kg
Metering Type	time device ON time device switch ON number of faults number of switching cycles number of device power cycles average current Iavg average voltage Vavg max current Imax max voltage Vmax active and reactive power with voltage module active and reactive energy with voltage module true power factor with voltage module
Maximum Operating Rate	3600 cyc/mn AC-3
Local Signalling	for DS (device status) 1 LED (green/red) for LS (load status) 1 LED (green/red)
Electrical Durability	1.4 Mcycles 38 A AC-3 440 V 2 Mcycles 40 A AC-1 440 V
Mechanical Durability	30 Mcycles
Safety Function	safe stop: category 0 conforming to IEC 60204-1 when associated with a TPRSM module safe stop: category 1 conforming to IEC 60204-1 when associated with a TPRSM module
Operating Time	< 100 ms closing < 30 ms opening
Width	45 mm
Depth	115 mm
Tightening Torque	2.5-2.5 N.m flat Ø 6 mm 2.5-2.5 N.m Philips No 3
Protection Type	thermal overload protection motor overheat overcurrent undercurrent jam long start stall rapid cycle lockout rapid restart lockout phase sequence phase reversal phase loss phase unbalance ground current
Safety Level	SIL 2 conforming to IEC 61508 in single channel system architecture SILCL 2 conforming to IEC 62061 in single channel system architecture PL = d category 2 conforming to ISO 13849-1 in single channel system architecture
Country of Origin	Mexico
Width	45 mm
Height	121 mm
Weight	0.718 kg
Current Consumption	160 mA contactor sealed 160 mA contactor closing
Power Dissipation In W	11.8 W at Ie AC-3
Power Dissipation Per Pole	2.9 W AC-3 - Ith 38 A 3.2 W AC-1 - Ith 40 A
Average Impedance	2 mOhm - Ith 40 A 50 Hz
Reset	remotely or automatically
[Ith] Conventional Free Air Thermal Current	40 A (at 50 °C)
[Uc] Control Circuit Voltage	24 V DC supplied by the bus coupler
Rated Breaking Capacity	550 A at 440 V conforming to IEC 60947
Product Or Component Type	SIL motor starter
Irms Rated Making Capacity	550 A at 440 V conforming to IEC 60947
Product Name	TeSys island
Thermal Overload Class	class 5…30
[Uimp] Rated Impulse Withstand Voltage	6 kV IEC 60947-1
Range	TeSys
Device Presentation	direct starter connected to an automation controller through a bus coupler operational only when connected to a bus coupler
Motor Starter Type	direct on line
Utilisation Category	AC-1 AC-2 AC-3 AC-4 AC-3e
Function Available	upstream voltage presence detection electrical line and load protection power and energy monitoring when connected with TPRVM voltage module safe stop function available when connected with a TPRSM module
[Ie] Rated Operational Current	38 A (at <50 °C) at <= 440 V AC-3 40 A (at <50 °C) at <= 440 V AC-1
Overvoltage Category	III for Ue <= 480 V II for Ue <= 690 V
Thermal Protection Adjustment Range	0.76-38 A
Product Compatibility	TPRBC bus coupler TPRVM voltage interface module TPRSM SIL interface module
[Ue] Rated Operational Voltage	<= 480 V AC 47...63 Hz for overvoltage cat. III <= 690 V AC 47...63 Hz for overvoltage cat. II
Maximum Horse Power Rating	2 hp at 120 V AC 60 Hz for 1 phase motors 5 hp at 240 V AC 60 Hz for 1 phase motors 10 hp at 208 V AC 60 Hz for 3 phase motors 10 hp at 240 V AC 60 Hz for 3 phase motors 20 hp at 480 V AC 60 Hz for 3 phase motors 25 hp at 600 V AC 60 Hz for 3 phase motors
Motor Power Kw	9 kW at 230 V 50 Hz (AC-3) 18.5 kW at 380...415 V 50 Hz (AC-3) 18.5 kW at 440 V 50 Hz (AC-3) 18.5 kW at 500 V 50 Hz (AC-3) 18.5 kW at 690 V 50 Hz (AC-3)
[Ui] Rated Insulation Voltage	690 V IEC 60947-4-1 600 V UL 60947-4-1 600 V CSA C22.2 No 60947-4-1
Device Short Name	TPRSS
Poles Description	3P 3 NO
[Icw] Rated Short-Time Withstand Current	430 A 40 °C - 1 s 310 A 40 °C - 10 s 150 A 40 °C - 1 min 60 A 40 °C - 10 min

SIL motor starter, TeSys island, 40A at AC-1, 38A at AC-3, 18.5kW, 20hp, DOL type
