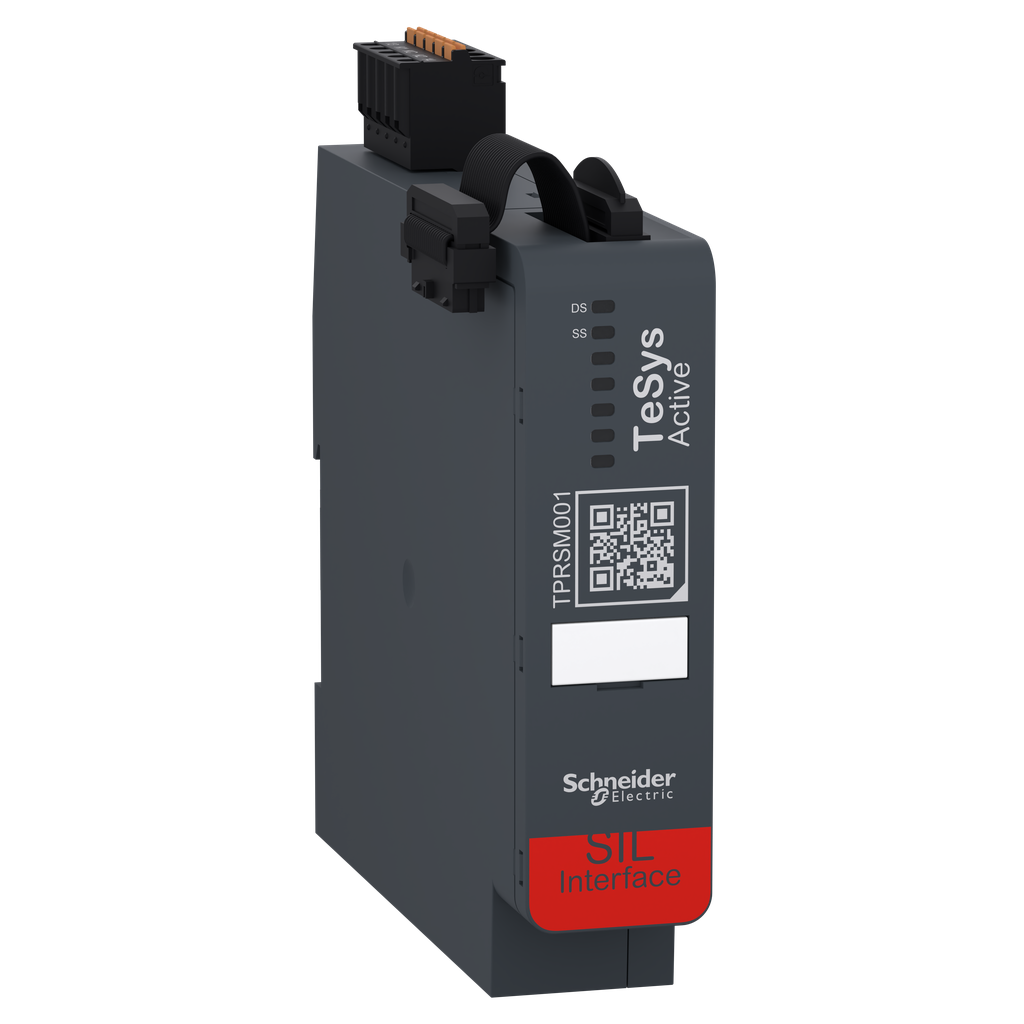

TPRSM001 – SIL interface module, TeSys island, 24VDC, Isolated switching input for safe stop
TPRSM001
SIL interface module, TeSys island, 24VDC, Isolated switching input for safe stop

TeSys island SIL interface module, 2 inputs, 1 output. Connected to a TPRBC bus coupler, it allows integration into safety related systems conforming to ISO 13849-1. It is used in connection to one or several SIL motor starter TPRSS. Two isolated switching inputs with common point, 0-24V DC. One relay type output, 1NO, instantaneous opening, potential free. Mounting on DIN rail together with the other modules of the TeSys island configuration. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Ambient Air Temperature For Operation -10-60 °C
Shock Resistance 15 gn 11 ms) IEC 60068-2-27
Vibration Resistance
  • 1.5 mm peak to peak 3-13 Hz) IEC 60068-2-6
  • 1 gn 13-200 Hz) IEC 60068-2-6
Electromagnetic Compatibility
  • electrostatic discharge, level 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2
  • radiated RF fields, level 3, 10 V/m, conforming to EN/IEC 61000-4-3
  • fast transients immunity test, level 3, 2 kV, conforming to EN/IEC 61000-4-4
  • surge immunity test (common mode), level 3, 2 kV, conforming to EN/IEC 61000-4-5
Pollution Degree 2
Ambient Air Temperature For Storage -25-70 °C
Protective Treatment TC
Relative Humidity 5-95 %
Ip Degree Of Protection IP20
Operating Altitude 0...6561.68 ft (0...2000 m) without derating
Fire Resistance 960 °C UL 94
Warranty 18 months
Rohs Exemption Information Yes
Mercury Free Yes
Environmental Disclosure ENVPEP1904009EN
Sustainable Offer Status Green Premium product
California Proposition 65 WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Weee The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile ENVEOLI1904009EN
Eu Rohs Directive Compliant with Exemptions
Halogen Content Performance Halogen free plastic parts product
Mounting Mode horizontal and vertical 35 mm symmetrical rail)
Current Consumption 10 mA
[Us] Rated Supply Voltage 24 V DC supplied by the bus coupler
Height 118 mm
Product Certifications
  • UL
  • CSA
  • EAC (pending)
Standards
  • IEC 60947-5-1
  • UL 60947-5-1
Connections - Terminals
  • control circuit removable spring terminal block 5 0.2-2.5 mm² AWG 24...AWG 14)rigid
  • control circuit removable spring terminal block 5 0.2-2.5 mm² AWG 24...AWG 14)flexible without cable end
  • control circuit removable spring terminal block 5 0.25-2.5 mm² AWG 22...AWG 14)flexible with cable end
Power Dissipation In W 0.7 W maximum
Net Weight 0.159 kg
Safety Function
  • safe stop: category 0 conforming to IEC 60204-1
  • safe stop: category 1 conforming to IEC 60204-1
Width 25 mm
Depth 114 mm
Safety Level
  • SIL 2 conforming to IEC 61508 in single channel system architecture
  • SILCL 2 conforming to IEC 62061 in single channel system architecture
  • PL = d category 2 conforming to ISO 13849-1 in single channel system architecture
Country of Origin United States
Width 25 mm
Height 118 mm
Weight 0.159 kg
[Ue] Rated Operational Voltage input/output circuit 24 V DC
Output Thermal Current 8 A relay output
Protection Type external fuse, 8 A gG relay output
Product Or Component Type SIL interface module
Product Name TeSys island
Range TeSys
Input Type isolated switching input safe stop
Device Presentation
  • implementation of a safe stop function for SIL motor starters TPRSS
  • safe stop operable for safety-related system conforming to ISO 13849-1
  • operational only when connected to a bus coupler TPRBC
Output Type relay instantaneous opening, 1 NO, potential free
Product Compatibility
  • TPRBC bus coupler
  • TPRSS SIL motor starter
Input Voltage
  • 15...28.8 V DC state 1
  • 0...5 V DC state 0
Local Signalling
  • for DS (device status) 1 LED (green/red)
  • for SS (safe stop status) 1 LED (green/red)
Input Protection Type internal, electronic
Function Of Module safe stop with 1NC or 2NC contacts monitoring
Overvoltage Category III
[Uimp] Rated Impulse Withstand Voltage 2 kV input/output circuit IEC 60947-1
[Ui] Rated Insulation Voltage input/output circuit 50 V
Device Short Name TPRSM
